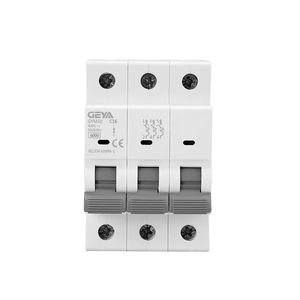

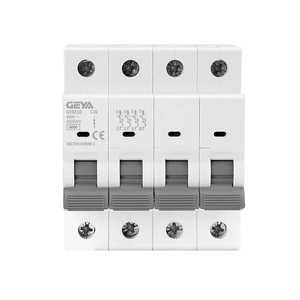

The GYM10 AC miniature circuit breaker is used for overload protection, short-circuit protection, and circuit isolation in industrial, commercial, high-rise, and residential distribution systems. The series covers 1P to 4P configurations and rated currents from 1 A to 63 A.
| Standard | IEC/EN 60898-1, GB 10963.1 |
|---|---|
| Rated current | 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 A |
| Poles | 1P, 2P, 3P, 4P |
| Rated voltage | 1P: 230/400 V or 240/415 V AC; 2P-4P: 400 V or 415 V AC |
| Tripping curves | B, C, D |
| Breaking capacity | 3 kA, 4.5 kA, 6 kA versions |
| Maximum wiring capacity | 25 mm² |
| Mechanical life | 10000 operations |
The catalog provides current correction factors for ambient temperatures from -10°C to 60°C, with 40°C as the 1.00 reference point.
