GYL8 / GYL10 Earth Leakage Circuit Breakers


Description

GYL8 and GYL10 earth leakage circuit breakers are residual current circuit breaker products used to disconnect a circuit when leakage current exceeds the selected value. They are intended for AC distribution systems where personnel and equipment require residual-current protection.

Product Scope

ModelConfigurationApplication notes

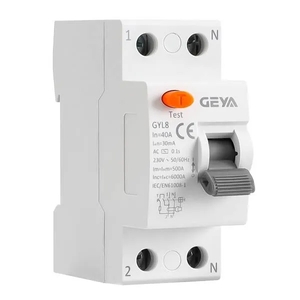

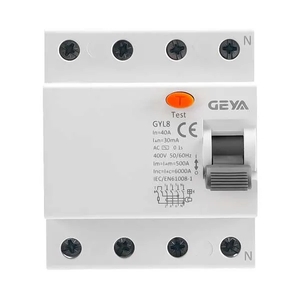

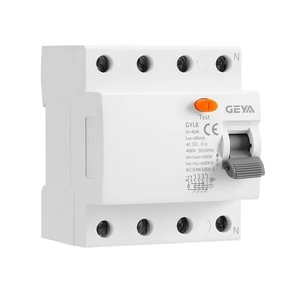

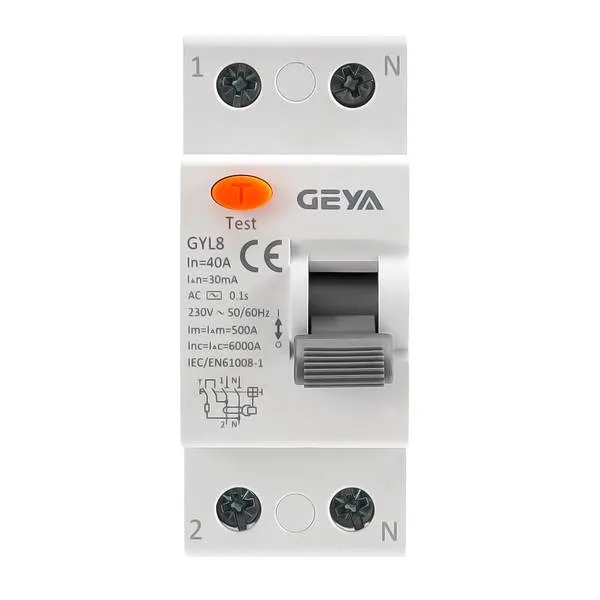

GYL82-pole and 4-pole ELCB versionsResidual current protection for AC distribution circuits with catalog and CB certificate support.

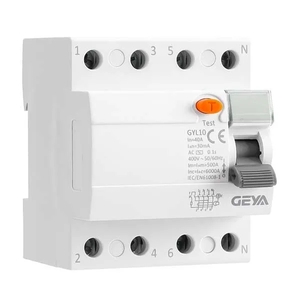

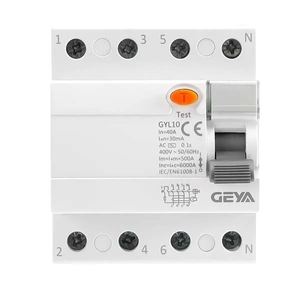

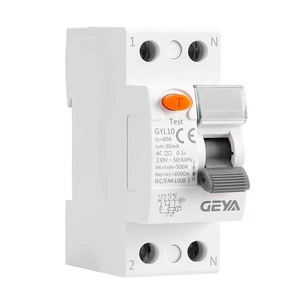

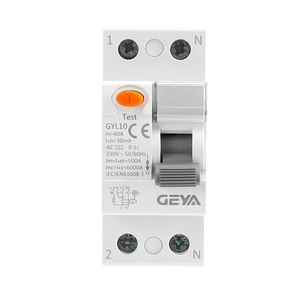

GYL102-pole and 4-pole RCCB/ELCB versionsSuitable for AC 50/60Hz circuits, with 230V two-pole and 400V four-pole applications, rated current up to 63A.

Typical Use

  • Residential, commercial, high-rise building, and industrial distribution panels.
  • Protection against electric shock risk and leakage-current faults.
  • Infrequent switching of circuits where residual current protection is required.
