GYH8 Switch Disconnectors


Description

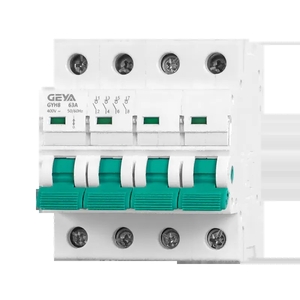

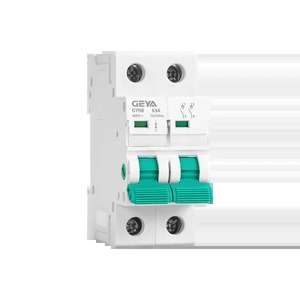

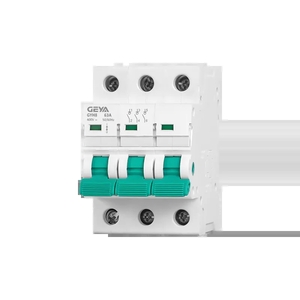

The GYH8 series is a DIN rail switch disconnector range for AC distribution and control circuits. It covers 1P, 2P, 3P and 4P versions for manual isolation and switching in distribution boards.

Main Features

  • Contact-position indication.
  • Transparent label cover on the front handle area.
  • Supports 35mm DIN rail installation.
  • Supports top-in bottom-out or bottom-in top-out wiring direction.
  • Accessory options can provide remote indication or auxiliary control functions.

Technical Parameters

ItemSpecification
Rated current32A, 63A, 100A, 125A
Poles1P, 2P, 3P, 4P
Rated voltage1P: 230/400V AC; 2P/3P/4P: 400V AC
Insulation voltage500V
Rated frequency50/60Hz
Use categoryAC-22A
Impulse withstand voltage6000V
Protection degreeIP20
