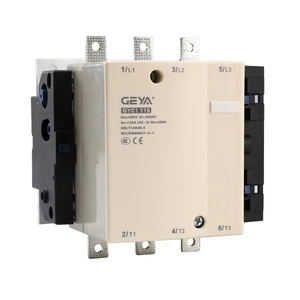

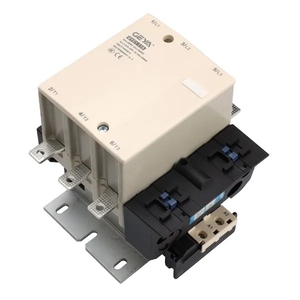

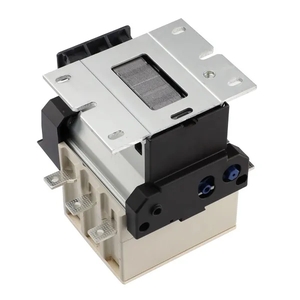

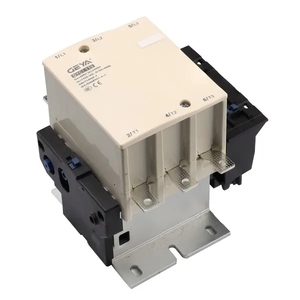

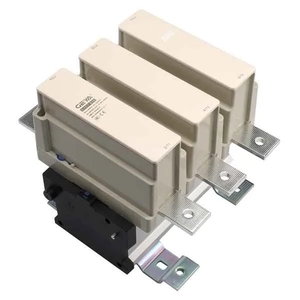

GYC Series High Ampere AC Contactor for AC Contactors

Description

This series of high-performance AC contactors is designed for heavy-duty industrial and commercial electrical power control. Engineered on an automated production and automatic testing platform, these contactors deliver robust performance, versatile contact configurations, and exceptional electrical durability in demanding operating environments, making them ideal for starter, switching, and distribution systems.

Product Highlights

Broad Current Range: Accommodates power demands from 115A up to 3200A (featuring 115A, 150A, 185A, 225A, 265A, 330A, 400A, 500A, 630A, 780A, 800A, 1000A, 1250A, 1450A, 1700A, 2100A, 2600A, and 3200A models).
High Voltage Capability: Designed to handle system ratings from 220V up to 1000V AC (for GYC1 models) and up to 1140V AC (for GYC5 models), ensuring versatility across diverse network architectures.
Flexible Pole and Contact Setup: Available in 1-pole, 2-pole, 3-pole, and 4-pole configurations to match different phase requirements. Supports flexible auxiliary contact blocks (like 2NO + 2NC, ZTCF3 auxiliary contacts) and air time delay units (ZTCST, ZTCSR, ZTCSS).
Extreme Durability: Heavy-duty mechanical and electrical endurance, optimized for frequent operations in harsh environmental conditions (ideal for construction, metallurgy, and hosting equipment).

Applications

The high ampere contactor series is designed for a variety of industrial scenarios, including:

Motor Control: Starting and stopping heavy motors in industrial machinery, elevators, escalators, hoisting, and metallurgy setups.
Power Distribution: Safe switching and control of distribution circuits in commercial buildings, workshops, rural area power networks, and green energy systems (e.g. wind power distribution).
Resistive and Inductive Loads: Direct control of large heating elements, electric stoves, and high-power commercial lighting systems.
Capacitive Loads & Transformers: Making and breaking of capacitor banks in reactive power compensation systems to improve the power factor.

Comparison Between GYC1 and GYC5

Feature	GYC1 Series	GYC5 Series
Rated Operational Current	115A - 800A	150A - 3200A
Maximum Operating Voltage	220V - 1000V AC	220V - 1140V AC
Typical Poles	2, 3, or 4 poles	1, 2, 3, or 4 poles (GYC5: 3 poles, GYC6: 1-4 poles, GYC7: 3 poles)

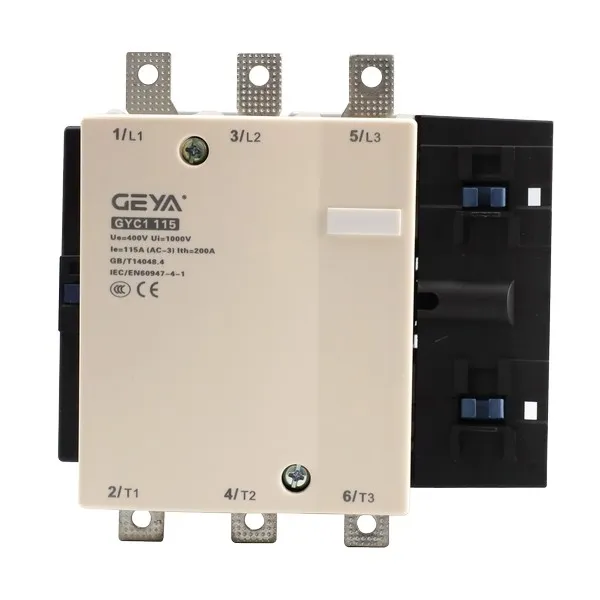

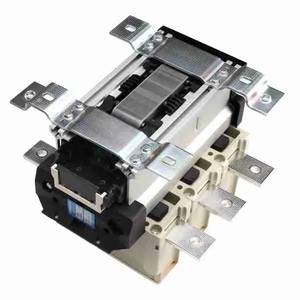

GYC1 Technical Parameters

Rated operational current A	Ie max AC-3 （Ue≤440V）	115	150	185	225	265	330	400	500	630	780	800
Rated operational current A	Ie max AC-1 (θ≤40℃）	200	250	275	315	350	400	500	700	1000	1600	1000
Rated operational voltage V	max	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Number of contacts(N/O)		3 or 4	3 or 4	3 or 4	3 or 4	3 or 4	2、3 or 4	2、3 or 4	2、3 or 4	2、3 or 4	2、3 or 4	3
Rated operational power KW AC-3 3、4poles	220/240V	30	40	55	63	75	100	129	147	200	220	220
	380/400V	55	75	90	100	132	160	200	250	335	400	400
	415V	59	80	100	110	140	180	220	280	375	425	425
	440V	59	80	100	110	140	180	220	280	375	425	425
	500V	75	90	110	129	160	200	257	335	400	450	450
	660/690V	80	100	120	129	180	220	280	355	450	457	475
	1000V	65	65	100	140	147	160	185	335	450	450	450
（SCPD）Short-circuit protection by fuse	Model	RT16-1	RT16-1	RT16-2	RT16-2	RT16-2	RT16-3	RT16-3	RT16-3	RT16-3	RSG-5	RT16-4
（SCPD）Short-circuit protection by fuse	Rated current	200	250	315	315	400	500	500	500	630	1600	800

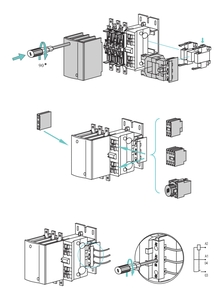

Optional parts		Auxiliary contact blocks：ZTCF3 Air time delay auxiliary contacts：ZTCST、ZTCSR、ZTCSS

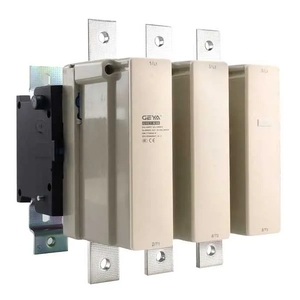

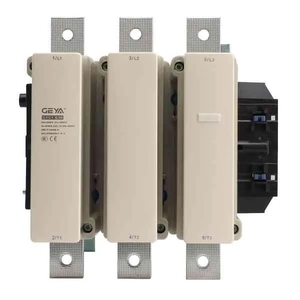

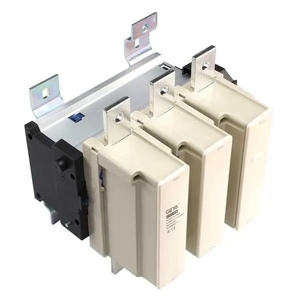

Contactors		GYC1 115	GYC1 150	GYC1 185	GYC1 225	GYC1 265	GYC1 330	GYC1 400	GYC1 500	GYC1 630	GYC1 780	GYC1 800
Weight (Kg)		3.6	3.7	4.6	4.7	7.1	8.5	8.5	10.8	17.4	40	19

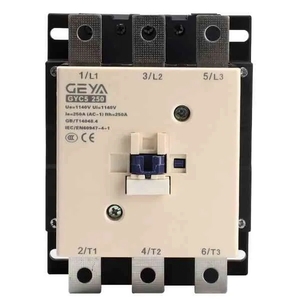

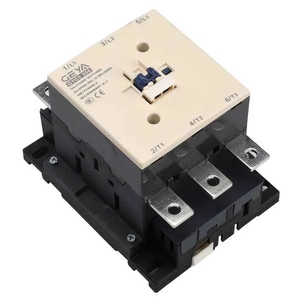

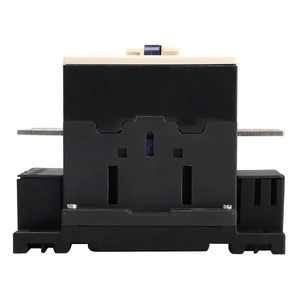

GYC5 / GYC6 / GYC7 Technical Parameters

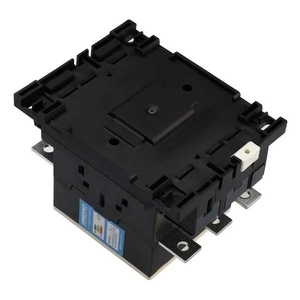

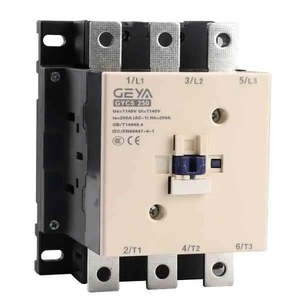

Contactor		GYC5	GYC6	GYC7
Specifications		1000、1250、1450、1700、2100、2600、3200	750、1000、1500、1800	115、150、170
Rated operational current A	AC3	—	750-1800	—
Rated operational current A	AC1	1000-3200	800-2750	AC-6b 90-130
Conventional thermal current Ith A		1000-3200	800-2750	250
Maximum rated operational voltage V		1000	1000	660
Rated operational power AC3 kW	220V		220-500
	400V		400-900
	500V		500-900
	690V		560-900
	1000V		530-750
Maximum operating power AC1 kW	220V	350-1090	300-1000	Capacity of capacitor Kvar
	400V	600-1890	330-1600	60-90
	500V	740-2350	550-2100
	690V	980-3100	800-2700
	1000V	1490-4690	1100-4200
Number of poles		3	1-4	3
Applications		For category AC1. For slightly inductive loads or slightly inductive distribution circuits, eg. Standard electric stove, distribution circuits for workshop power distribution in rural area and distribution for wind power distribution.	Standard products for high capacity AC3, AC1, AC4 loads, specially for large equipment in hoisting, construction and metallurgy industry.	For making and breaking of capacitor. For making and breaking of reactive power compensation devices and appliances, to improve the power factor.
