The GEYA inductive proximity switch range is used for non-contact metal detection in industrial control, position sensing, counting, and limit applications. The series covers compact cylindrical, threaded cylindrical, square, and XTL block-style proximity sensor formats with multiple wiring and output options.
Model Coverage
| Model | Body style | Mounting / detection type | Rated operating distance | Key output options |
|---|
| GYAG5-010-NA | Compact inductive proximity switch | Non-flush mounting | 5 mm | NPN / PNP NO or NC |

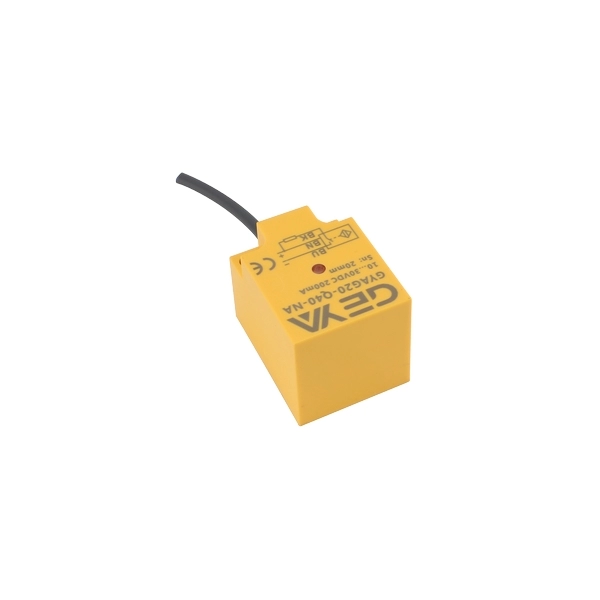

| GYAG20-Q40 | Square inductive proximity switch | Non-flush mounting | 10 mm | NPN / PNP NO or NC |
| GYAT1.5-M8-NA | M8 cylindrical inductive proximity switch | Flush mounting | 1.5 mm | NPN, PNP, DC two-wire, AC/DC options |
| GYBT15-M30-NA | M30 cylindrical inductive proximity switch | Flush mounting | 15 mm | NPN, PNP, DC two-wire, AC/DC options |

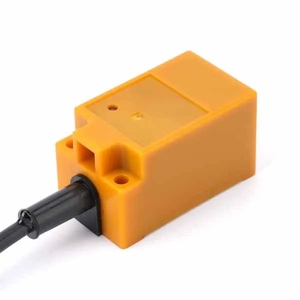

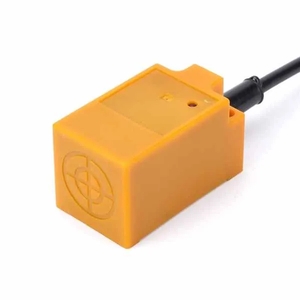

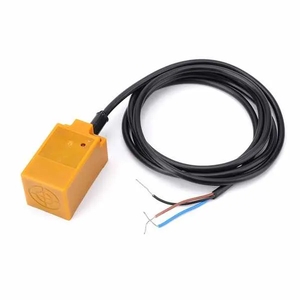

| XTL 10 mm | Block-style proximity sensor | 10 mm proximity detection | 10 mm maximum operating distance | NPN / PNP DC 3-wire, DC 2-wire, AC 2-wire, NO / NC / NO+NC |
Detection and Installation
| Model | Reliable operating range | Standard detection target | Voltage range |
|---|
| GYAG5-010-NA | 0-4 mm | 17 x 17 x 1t, Q253A | 10-30 VDC |
| GYAG20-Q40 | 0-17 mm | 60 x 60 x 1t, Q253A | 10-30 VDC |
| GYAT1.5-M8-NA | 0-1.2 mm | 8 x 8 x 1t, Q253A | 10-30 VDC |
| GYBT15-M30-NA | 0-12 mm | 45 x 45 x 1t, Q253A | DC 10-30 V or AC/DC 24-250 V depending on output type |
| XTL 10 mm | 10 mm maximum operating distance | Not specified in the local data | DC 6-36 V or AC 90-250 V depending on model |
Features
- Non-contact proximity detection for machine control and automation circuits.
- Short-circuit protection, reverse polarity protection, and surge absorption on listed inductive models.
- NPN and PNP output options, with normally open, normally closed, and combined output variants depending on model.
- DC two-wire, AC/DC two-wire, and AC two-wire options available on selected models.
- Red LED status indication on listed inductive models.
- Durable housings and PBT sensing surfaces for industrial installation environments.
Common Technical Parameters
| Hysteresis | 1-15% of detection distance on listed inductive models |
|---|
| Repeatability | <3% of detection distance on listed inductive models |
|---|
| No-load current | <10 mA or <15 mA depending on model |
|---|
| Leakage current | <100 uA on listed inductive models |
|---|
| Ambient temperature | -25°C to 70°C on listed inductive models |
|---|
| Environment humidity | 35-95% RH on listed inductive models |
|---|
| Wiring form | Standard 2 m wire on GYAG, GYAT and GYBT models |
|---|
| Protection level | IP66 on listed GYAG, GYAT and GYBT models |
|---|
| Compliant standard | IEC/EN 60947-5-2:2004 on listed GYAG, GYAT and GYBT models |
|---|

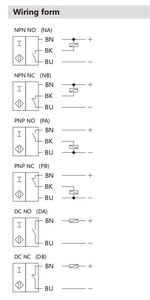

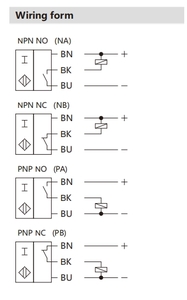

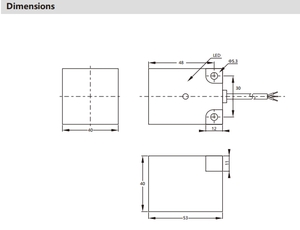

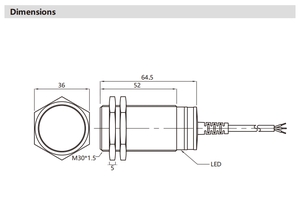

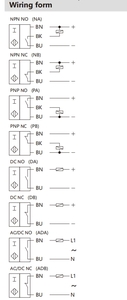

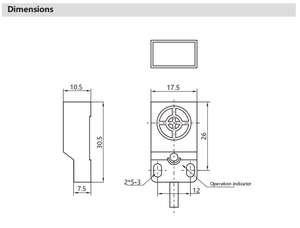

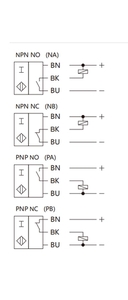

Wiring and Dimensions

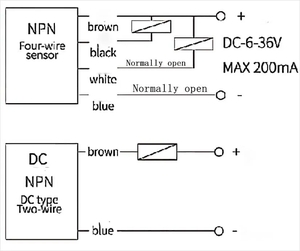

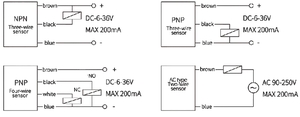

Product images, dimension drawings, and wiring diagrams are provided for the covered GYAG, GYAT, GYBT, and XTL proximity sensor formats. The XTL wiring diagrams cover DC and AC output configurations shown in the local technical data.
