EtherCAT branch selection
GW-EC junction modules connect an incoming EtherCAT segment to three or five outgoing branches. Choose the port arrangement to suit a linear, star or tree network. Both models support distributed clocks, ring redundancy and network-port hot swapping.
| Model | RJ45 ports | Input | Outputs |
|---|
| GW-EC-P04 | 4 | 1 | 3 |
|---|

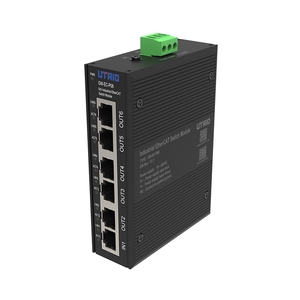

| GW-EC-P06 | 6 | 1 | 5 |
|---|
Communication characteristics
| Characteristic | Both models |
|---|
| Protocol role | EtherCAT slave station |
|---|
| Transmission rate | 10/100Mbps, speed adaptive |
|---|
| Distributed clocks | Supported |
|---|
| Port delay | Approximately 1μs per port |
|---|
| Station-to-station distance | ≤100m |
|---|
| Ring redundancy | Supported |
|---|
| Network-port hot swapping | Supported |
|---|
| Topology | Linear, star and tree |
|---|
| Isolation | Field-side electrical isolation |
|---|
| Transmission medium | CAT5 Ethernet cable |
|---|
Power and wiring
Connect the DC supply through the push-in terminals. Select a conductor within the stated cross-section range and strip it to the specified length.
| Characteristic | Both models |
|---|
| Supply connection | Push-in terminal blocks |
|---|
| Operating voltage | 8-36V DC |
|---|
| System supply current | <150mA |
|---|
| Conductor cross-section | 0.34-1.5mm² |
|---|
| Conductor size | AWG22-AWG16 |
|---|
| Stripping length | 9mm |
|---|
Dimensions and operating conditions
| Characteristic | Both models |
|---|
| Height × width × depth | 94mm × 33mm × 122mm |
|---|
| Ingress protection | IP20 |
|---|
| Pollution degree | 2 |
|---|
| Operating temperature | -10°C to +55°C |
|---|
| Storage temperature | -20°C to +85°C |
|---|
| Relative humidity | 95%RH, non-condensing |
|---|
