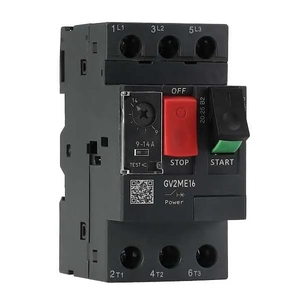

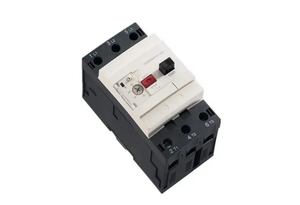

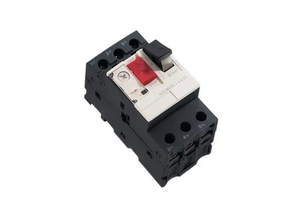

GV2 / GV3-ME Motor Protection Circuit Breaker

The GV2 / GV3-ME motor protection circuit breaker series is designed for motor overload and short-circuit protection in AC control circuits. It is suitable for motor starting and stopping under AC-3 load, circuit protection, infrequent load switching, and isolation applications.

Product Features

• Motor protection circuit breaker for AC 50/60Hz motor circuits.
• Rated operating voltage up to 690V according to product data.
• Rated current coverage includes 0.1A to 80A across the listed GV2 and GV3-ME models.
• Thermal magnetic protection for overload and short-circuit conditions.
• Compact modular design for control panels and motor control applications.

Covered Models
