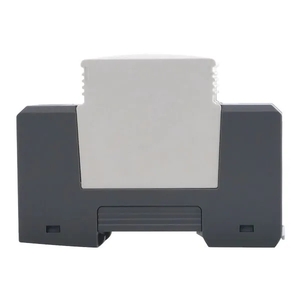

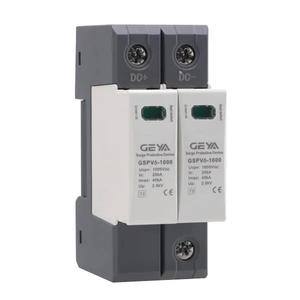

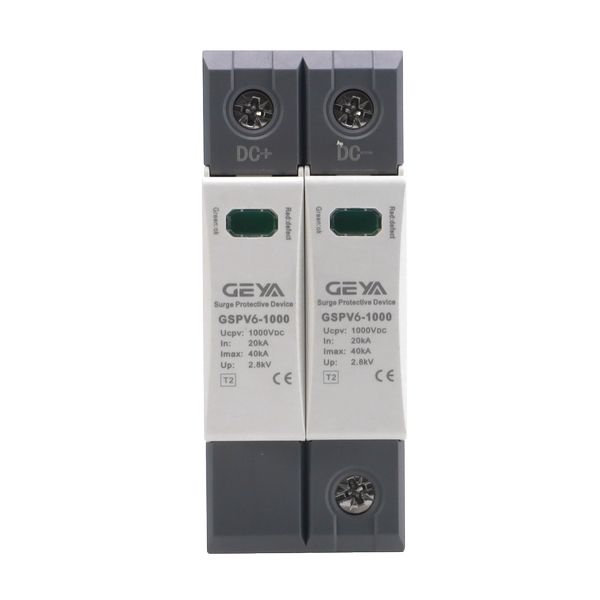

GSPV6-1000 DC Surge Protection Device


Description

The GSPV6-1000 series is a DC surge protection device for photovoltaic and other DC power-line systems. It helps protect PV combiner boxes, inverters, DC distribution cabinets and related equipment against over-voltage and transient surge damage.

Main Features

  • T2 / Class II DC surge protection.
  • Maximum PV voltage up to 1000V DC.
  • 20kA nominal discharge current and 40kA maximum discharge current.
  • Fast response time and low residual voltage.
  • 35mm DIN rail installation.
  • Optional remote signaling contact.

Technical Parameters

ItemSpecification
ModelGSPV6-1000 / GSP6-C40PV 1000V group
StandardIEC/EN 61643-11; GB18802.11
SPD typeT2 / Class II
Max. PV voltage600V DC / 1000V DC
Nominal discharge current20kA
Maximum discharge current40kA

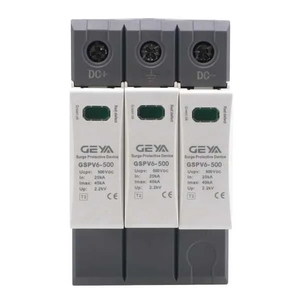

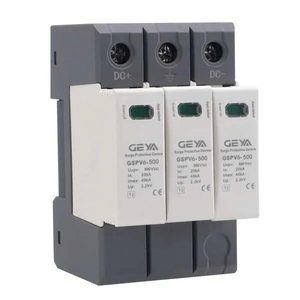

Poles2P / 3P
Operating temperature-40°C to +80°C
