The GRT8 series is a DIN rail time relay range for timing, delay and control-circuit automation. The series includes single-function and multifunction relays, star-delta timers, pulse-output timers, asymmetric cyclers, staircase timers and communication-enabled timing relays.
Main Features
- 18mm DIN rail modular format for control panels.
- Multiple timing functions across the series, including delay on, delay off, cyclic timing, pulse output and star-delta timing.
- AC/DC supply options are available by model.
- LED indication for supply and output status on many models.
- Relay output options include SPDT and dual-contact versions, depending on model.
Model Coverage
| Function group | Models |
|---|
| Single function | GRT8-A1, A2, At, B1, B2, Bt |

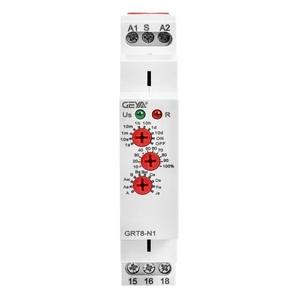

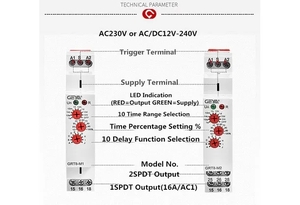

| Multifunction | GRT8-M1, M2, N |

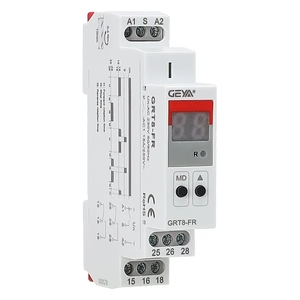

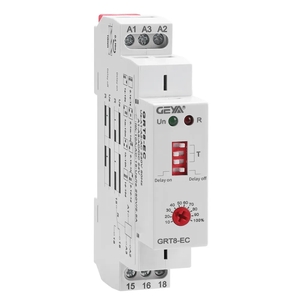

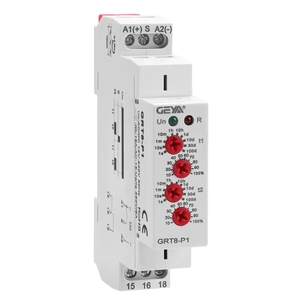

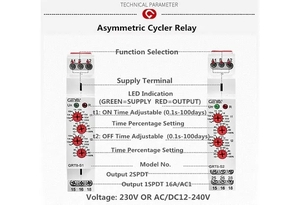

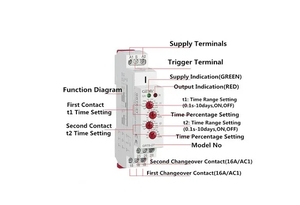

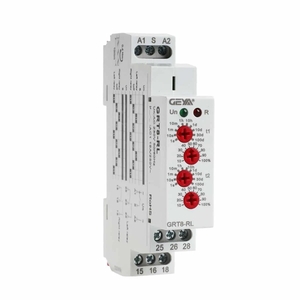

| Special timing | GRT8-2T, D, EC, FR, K, LM, LS, LT, P1, P2, RL, S1, S2, ST |

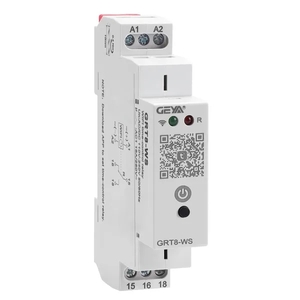

| Connected timing | GRT8-TS1, TS2, WS |
Typical Applications
- Pump, fan and heater time-delay control.
- Motor start and star-delta transition timing.

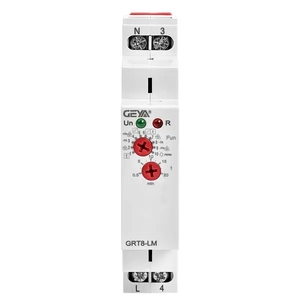

- Lighting, staircase and emergency-light test timing.
- Control-panel sequencing and industrial automation.
