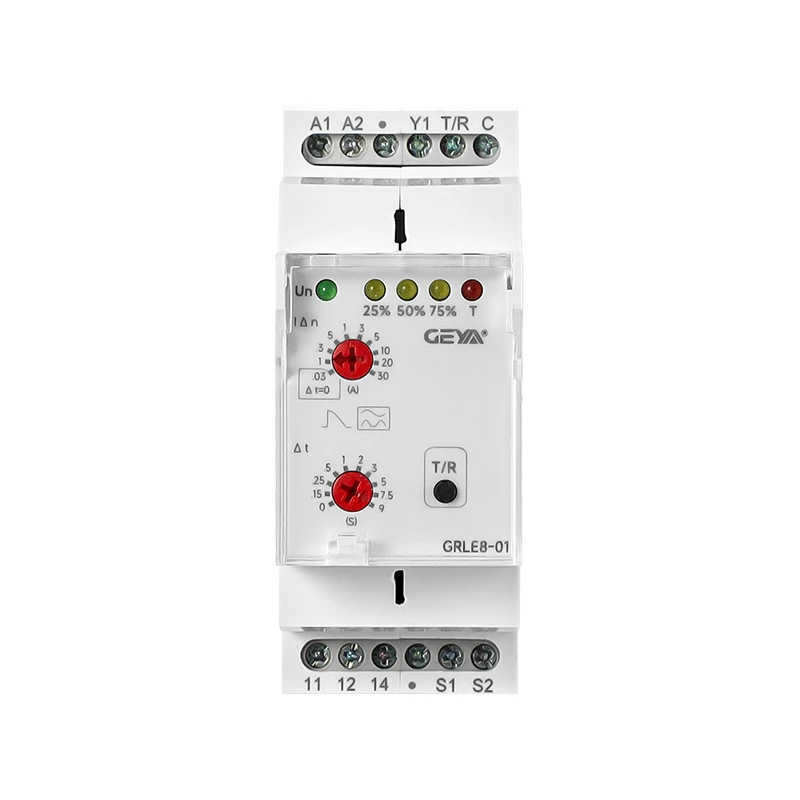

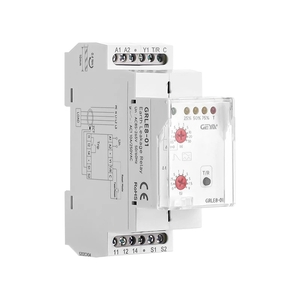

The GRLE8-01 earth leakage relay is designed for residual current monitoring in single phase and three phase electrical systems. It supports adjustable leakage current and delay settings for equipment protection, branch protection, and leakage alarm applications.
Product Features
- Earth leakage relay for AC and pulsating DC residual current detection.
- Adjustable leakage current settings from 30mA to 30A.
- Selectable trip delay settings, with instant operation at the 30mA setting.
- AC85-265V 50/60Hz supply range according to product data.
- DIN rail housing with LED indication.
Application Areas
- Elevators
- Variable-frequency air conditioners
- EV charging systems
- Industrial control systems
