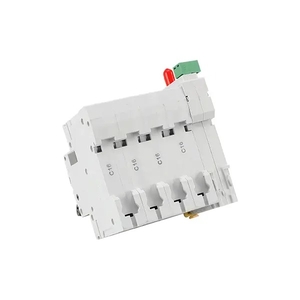

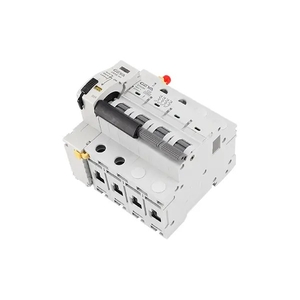

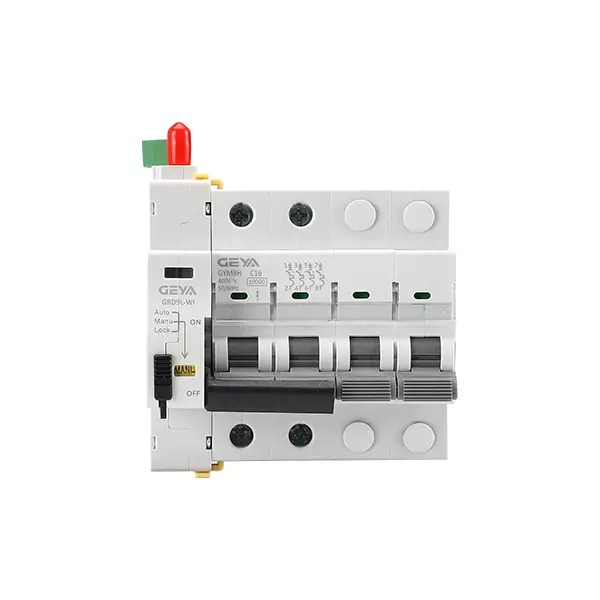

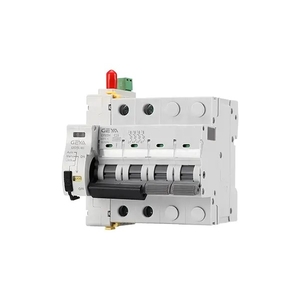

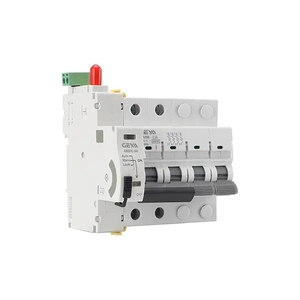

GRD9-W Remote Control Circuit Breaker


Description

GRD9-W remote control circuit breakers are designed for remote opening and closing of matched AC or DC circuit breakers. The control module can be used with 1P to 4P breakers, supports external dry-contact control, and provides switch-status feedback through a signal output port for remote control and monitoring applications.

Key Features

  • Remote opening and closing through an external dry contact.
  • Manual and automatic switching function.
  • Switch safety padlock support.
  • Switch status indication and reclosing-state signal feedback.
  • LED indication for operating status.
  • Compatible with 1P, 2P, 3P and 4P adaptive circuit breaker configurations.
  • Suitable for home and commercial remote circuit control applications.

Application Scope

  • Remote control of terminal circuit breakers.
  • Smart distribution boxes and remote power management systems.
  • Home and commercial circuit switching where manual on-site operation is inconvenient.
  • AC or DC circuit breaker combinations within the listed adaptive pole range.

Technical Data

Item1P / 2P version3P / 4P version
Manual / automatic switchingYesYes
Switch safety padlockYesYes
Switch status indicationYesYes
Poles of adaptive circuit breaker1P / 2P3P / 4P
Adapted circuit breaker frame current63A125A
Control methodExternal dry contactExternal dry contact
Status feedbackSignal output portSignal output port

Manual And Documents

The MT53 manual provides installation and operating information for the GRD9-W remote control circuit breaker series.
