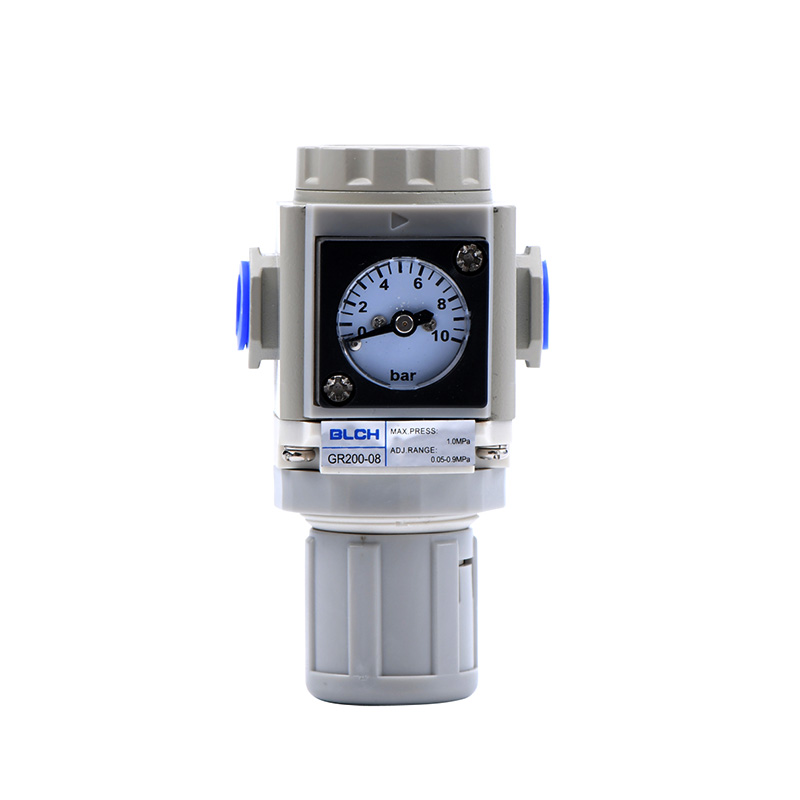

GR200-GR400 Air Pressure Regulators

Series Part Number

Part Number: G R 300 - 10
Explanation:

Series

G - G-series air-preparation family

Function

R - Air pressure regulator

Body Size

200 - Port codes 06 or 08
300 - Port codes 08, 10 or 15
400 - Port codes 10 or 15

Port Size

06 - 1/8in
08 - 1/4in
10 - 3/8in
15 - 1/2in; select a port code allowed for the body size

Description

GR200, GR300 and GR400 air regulators combine a recessed square gauge with a locking pressure-adjustment mechanism. Their balanced regulating design supports manual pressure control, while seven PT port configurations provide a choice of connection size and flow capacity.

Model selection and ordering

ModelPort PMaximum flow, L/min (ANR)
GR200-06PT1/83000
GR200-08PT1/4
GR300-084500
GR300-10PT3/8
GR300-15PT1/2
GR400-10PT3/86500
GR400-15PT1/2

For GR300-10, G identifies the series, R the regulator function, 300 the body size and 10 the 3/8″ connection. Other port codes are 06 for 1/8″, 08 for 1/4″ and 15 for 1/2″.

Operating specifications

ParameterSpecification
Working pressure0.15-0.9MPa (22-130psi)
Maximum pressure1.0MPa
Ambient temperature-20-60°C
Body materialAluminum alloy

Installation dimensions

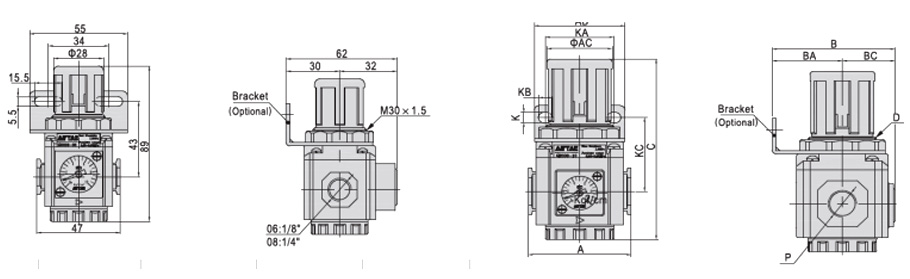

GR regulator mounting outlines and dimension references
GR mounting outlines with optional brackets; linear dimensions in mm.

Dimensions below are shared within each body-size group. Port P remains specific to each model in the selection table.

ModelsAABACBBABCC
GR200-06/0847552862303289
GR300-08/10/15605338724131112.5
GR400-10/15807252905040140.5
ModelsDKKAKBKC
GR200-06/08M30×1.55.5341543
GR300-08/10/15M40×1.56.540846
GR400-10/15M55×2.08.5551153

The attached Pneumatic Components Catalogue includes GR regulators and related air preparation components.
