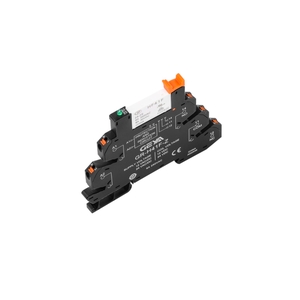

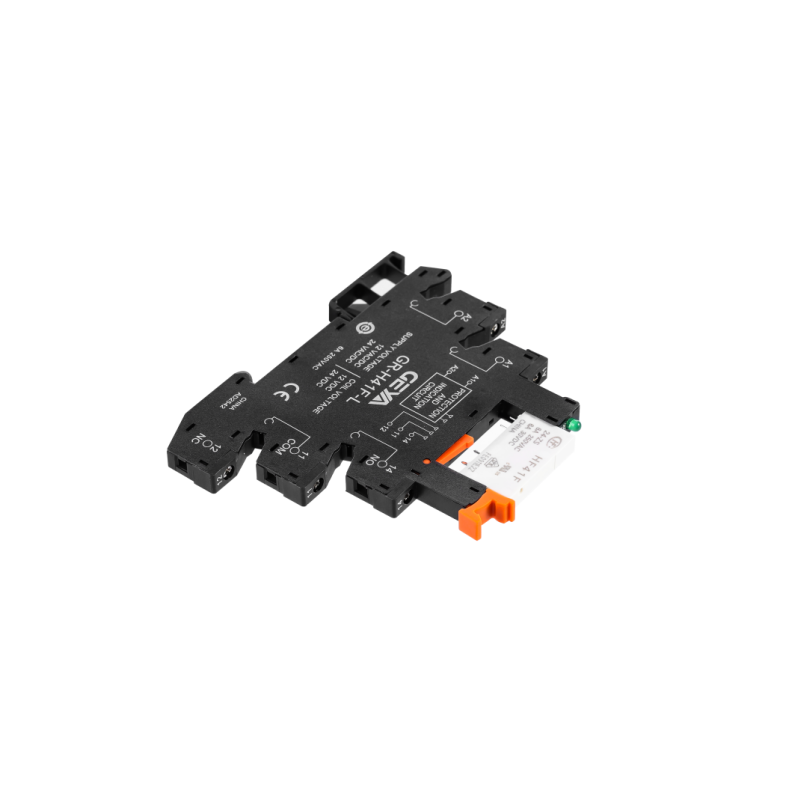

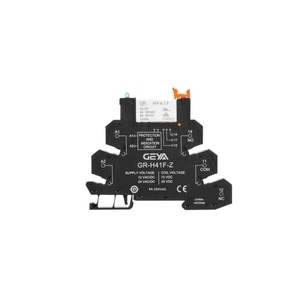

GR-H41F is a 6.22 mm slim relay socket and interface relay module range for compact control-panel wiring. It combines a narrow terminal-type housing with 1-pole changeover output contacts for signal interface and auxiliary control circuits.
Model Range
| Model | Contact configuration | Size | Rated voltage |
|---|
| FY-41F-1 | 1-pole, 1NO+1NC | 80 x 6.2 x 94 mm | 12V DC, 24V DC |
| FY-41F-2 | 1-pole, 1NO+1NC | 90 x 6.2 x 76.5 mm | 12V DC, 24V DC |
| FY-41F-3 | 1-pole, 1NO+1NC | 13.5 x 6.2 x 80 mm | 12V DC, 24V DC |
Electrical Data
| Rated current | 12V: 9mA, 24V: 11mA |
|---|
| Output contact | 1-pole NO+NC |
|---|
| Contact type | Single group transfer |
|---|
| Contact load | 6A 250V AC / 5A 30V DC |
|---|
| Mechanical life | 5 x 1,000,000 operations |
|---|
| Electrical life | 1 x 100,000 operations |
|---|
| Applicable wires | Up to 1.5mm2 / AWG16 |
|---|
