The GPV8 voltage protector is designed for DIN rail distribution-board applications where over-voltage and under-voltage monitoring is required. It supports upper and lower incoming-line wiring, automatic reset after voltage recovery, LED relay status indication and compact modular installation.
Product Versions
| Version | Poles | Rated current | Dimensions | Weight |
|---|

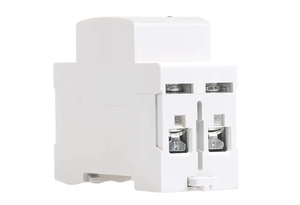

| GPV8 2P | 2P | 32A, 40A, 50A, 63A AC1 | 82 x 36 x 68 mm | 120 g |

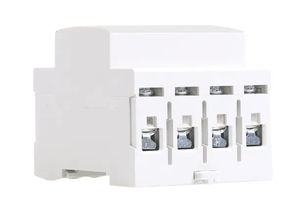

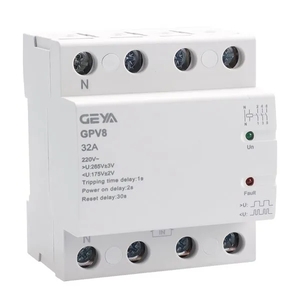

| GPV8 4P | 4P | 32A, 40A, 50A, 63A AC1 | 82 x 72 x 68 mm | 250 g |
Electrical Data
| Item | Specification |
|---|
| Rated supply voltage | AC220V L-N |
| Rated frequency | 50/60Hz |
| Burden | Maximum 3VA |
| Over-voltage operation value | 265V |
| Over-voltage reset value | 257V |
| Under-voltage operation value | 175V |
| Under-voltage reset value | 180V |
| Action delay | 1s |
| Power-up delay | 2s |
| Reset delay | 30s |
| Measurement error | Not more than 1% |
Installation Data
| Item | Specification |
|---|

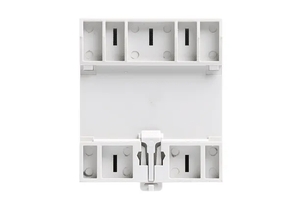

| Mounting | DIN rail according to EN/IEC 60715 |
| Protection degree | IP40 front panel, IP20 terminals |
| Maximum cable size | 25 mm² |
| Tightening torque | 3 N·m |
| Operating temperature | -20°C to +55°C |
| Storage temperature | -35°C to +75°C |
| Over-voltage category | Category III |
| Pollution degree | 2 |
