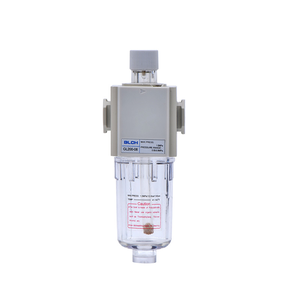

GL200, GL300 and GL400 air lubricators provide adjustable oil delivery for pneumatic circuits requiring oil mist. The oil-feed ring turns through one revolution, with graduations for setting the feed quantity. Bowl capacities of 25mL, 75mL and 160mL correspond to the three body sizes.
| Model | Port P | Maximum flow (ANR) | Oil bowl capacity | Bowl guard |
|---|---|---|---|---|
| GL200-06 | PT1/8″ | 3500L/min | 25mL | Without |
| GL200-08 | PT1/4″ | |||

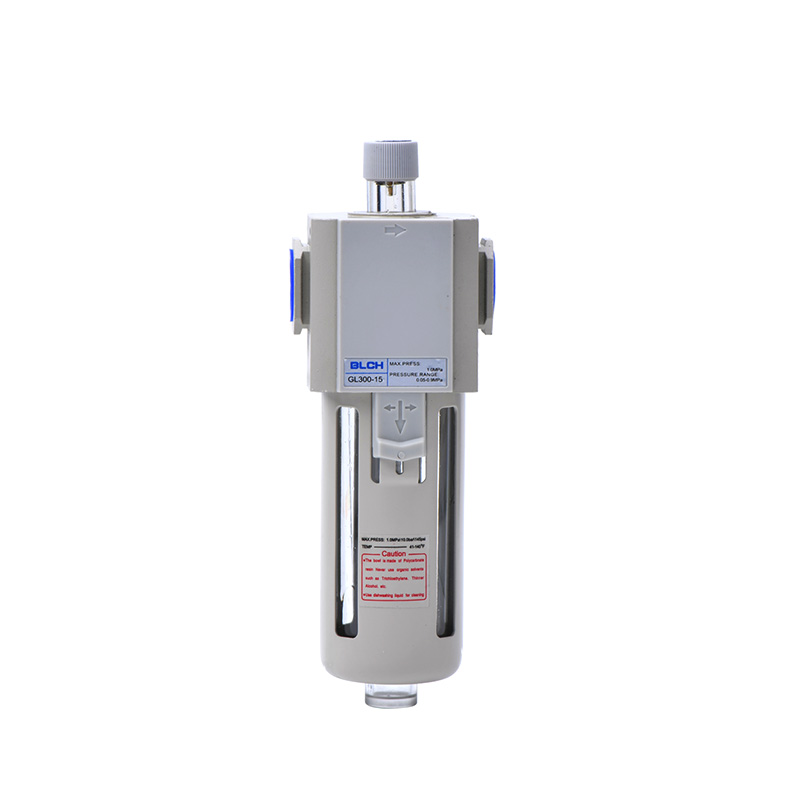

| GL300-08 | PT1/4″ | 5000L/min | 75mL | Iron guard |
| GL300-10 | PT3/8″ | |||
| GL300-15 | PT1/2″ | |||
| GL400-10 | PT3/8″ | 8000L/min | 160mL | Iron guard |
| GL400-15 | PT1/2″ |
| Parameter | Specification |
|---|---|
| Working pressure | 0.15-0.9MPa |
| Maximum pressure | 1.0MPa |
| Ambient temperature | -5-60°C |
| Recommended lubricant | Turbine No.1 oil, ISO VG32 |
| Body | Aluminum alloy |
| Bowl | Polycarbonate (PC) |

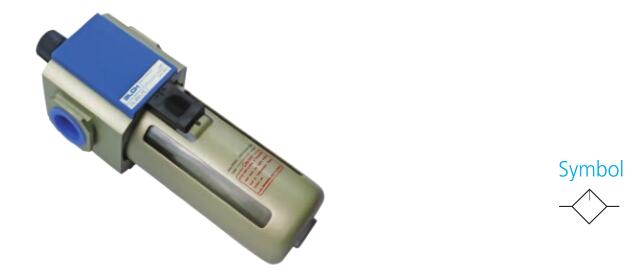

The oil-drip mechanism uses a gap seal and a nozzle that creates negative pressure at the oil outlet. The feed-ring graduation provides an approximate indication of oil delivery, with an approximately linear relationship between ring position and feed quantity.
In GL300-10, G identifies the series, L identifies the lubricator function, 300 identifies the body size and 10 identifies the PT3/8″ port. Available body sizes are 200, 300 and 400.
| Port code | Connection |
|---|---|
| 06 | PT1/8″ |
| 08 | PT1/4″ |
| 10 | PT3/8″ |
| 15 | PT1/2″ |

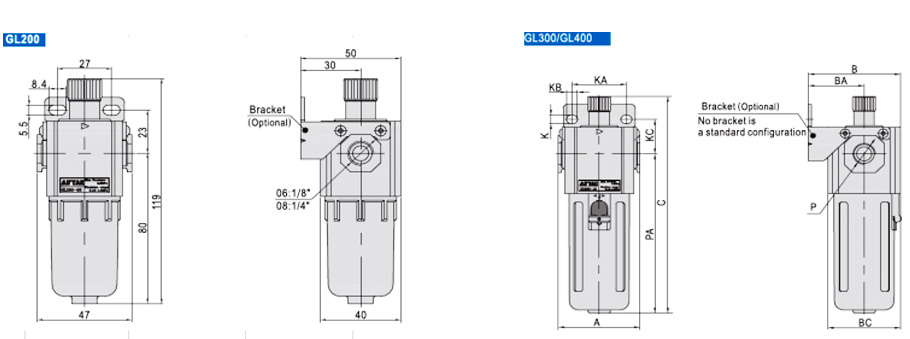

Dimensions below are in mm. Port P follows the model selection table. Brackets are optional.
| Models | A | B | BA | BC | C | K | KA | KB | KC | PA |
|---|---|---|---|---|---|---|---|---|---|---|
| GL200-06/08 | 47 | 50 | 30 | 40 | 119 | 5.5 | 27 | 15.5 | 23 | 80 |
| GL300-08/10/15 | 60 | 68 | 41 | 53.5 | 169 | 6.5 | 40 | 8 | 27 | 125 |
| GL400-10/15 | 80 | 85.5 | 50 | 71 | 190 | 8.5 | 55 | 11 | 33.5 | 142 |
The attached Pneumatic Components Catalogue includes GL lubricators and related air preparation components.
