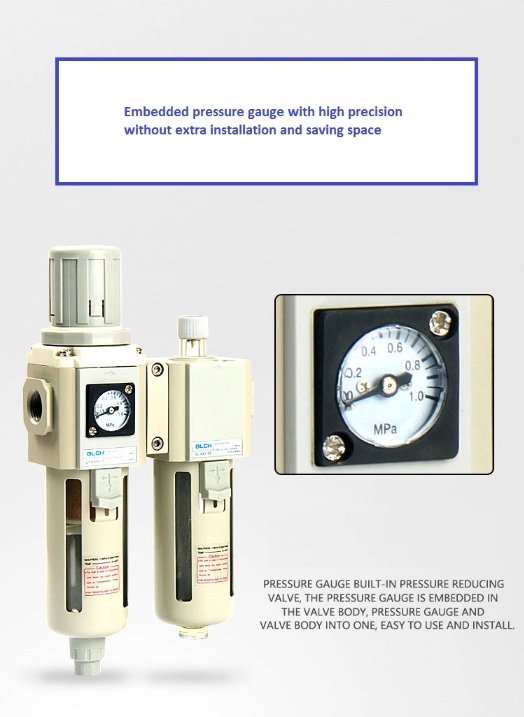

GFC200, GFC300 and GFC400 pair a GFR filter-regulator with a GL lubricator. The two modules are joined by mounting clamps, and the filter-regulator includes a built-in pressure gauge for local adjustment.
For GFC300-10, G is the series, FC identifies the filter-regulator/lubricator combination, 300 is the body size and 10 is the port code.
| Code | Choices |
|---|---|
| Body size | 200, 300 or 400 |
| Port code | 06: 1/8″; 08: 1/4″; 10: 3/8″; 15: 1/2″ |
| Model | Filter-regulator | Lubricator | Port P | Maximum flow, L/min (ANR) |
|---|---|---|---|---|
| GFC200-06 | GFR200 | GL200 | PT1/8 | 3000 |
| GFC200-08 | GFR200 | GL200 | PT1/4 | 3000 |
| GFC300-08 | GFR300 | GL300 | PT1/4 | 4500 |
| GFC300-10 | GFR300 | GL300 | PT3/8 | 4500 |
| GFC300-15 | GFR300 | GL300 | PT1/2 | 4500 |
| GFC400-10 | GFR400 | GL400 | PT3/8 | 6500 |
| GFC400-15 | GFR400 | GL400 | PT1/2 | 6500 |
| Item | Specification |
|---|---|
| Working pressure | 0.15-0.9MPa |
| Maximum pressure | 1.0MPa |
| Ambient temperature | -5-60°C |
| Filtration | 40μm standard; 5μm optional |
| Recommended oil | No. 1 turbine oil, ISO VG32 |
| Body | Aluminum alloy |
| Bowls | Polycarbonate (PC) |

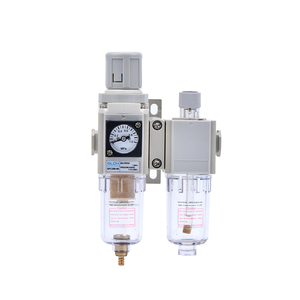

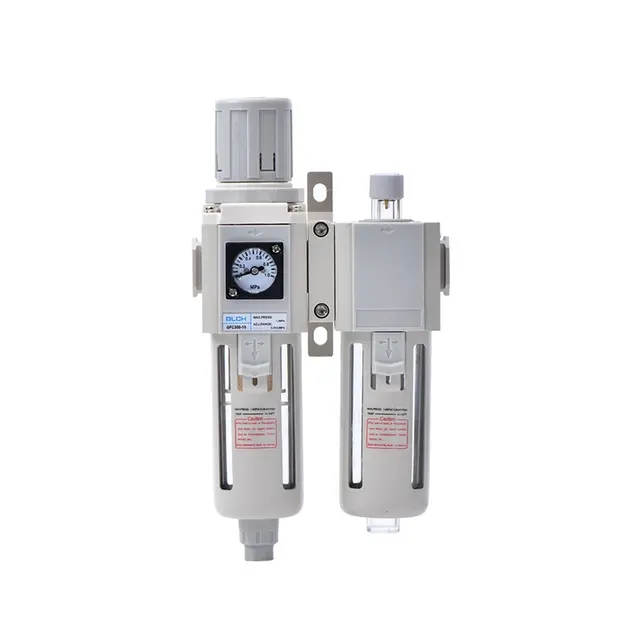

| Bowl guards | GFC200: without guards; GFC300 and GFC400: iron guards |

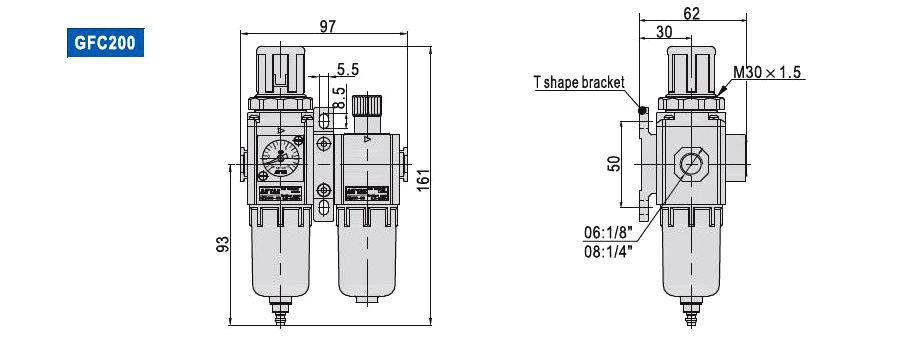

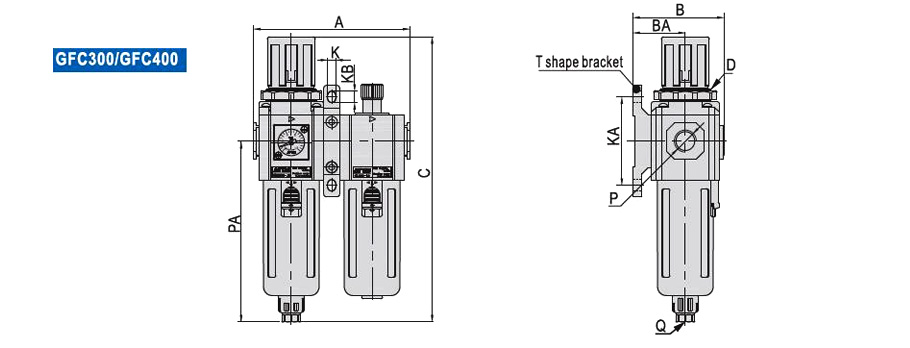

Dimensions below apply to the listed port variants within each body size. Linear dimensions are in mm; D and Q are thread designations. Port P follows the model-specific PT connection in the selection table.
| Body size and port codes | A | B | BA | C | D | K | KA | KB | PA | Q |
|---|---|---|---|---|---|---|---|---|---|---|
| GFC200-06/08 | 97 | 62 | 30 | 161 | M30×1.5 | 5.5 | 50 | 8.5 | 93 | — |
| GFC300-08/10/15 | 124 | 72 | 41.5 | 225.5 | M40×1.5 | 6.5 | 70 | 9 | 143 | G1/8 |
| GFC400-10/15 | 164 | 89 | 50 | 225.5 | M55×2.0 | 8.5 | 80 | 12 | 166.5 | G1/4 |
Q is not specified for GFC200. The attached Pneumatic Components Catalogue covers the wider pneumatic range.
