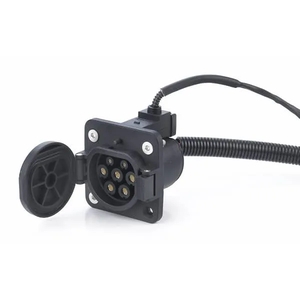

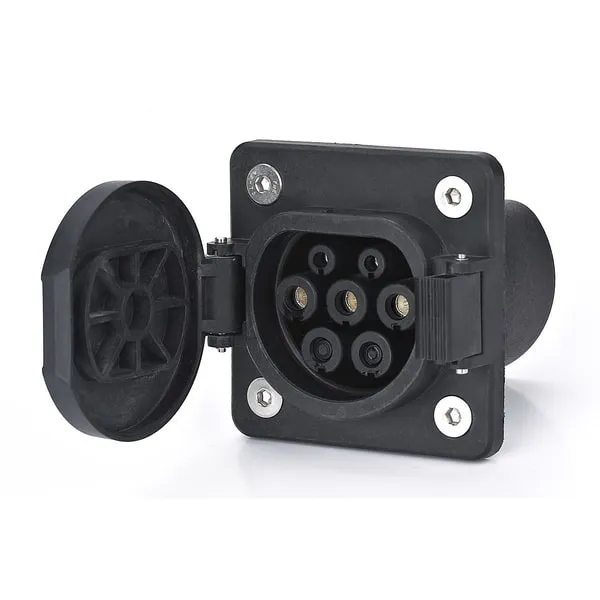

The GEVC GB AC EV charging socket is designed for AC electric vehicle charging interfaces. It supports 16 A and 32 A current ratings, 250 V and 440 V operating voltage levels, and an IP55 protected housing for EV charging equipment installations.
Electrical Performance
| Rated current | 16 A / 32 A |
|---|
| Operating voltage | 250 V / 440 V |
|---|
| Insulation resistance | >1000 Mohm at DC 500 V |
|---|
| Contact resistance | 0.5 mohm max. |
|---|
| Terminal temperature rise | <50 K |
|---|
| Withstand voltage | 2500 V |
|---|
Mechanical and Environmental Data
| Operating temperature | -40°C to +105°C |
|---|
| Degree of protection | IP55 |
|---|
| Mechanical life | No-load plug-in/out >10000 times |
|---|
| Coupled insertion force | 45 N < F < 100 N |
|---|
Materials
| Case material | Thermoplastic, flame retardant grade UL94 V-0; white or black shell color optional |
|---|
| Insert sleeve | Copper alloy, silver plating |
|---|
| Sealing element | Rubber or silica gel |
|---|
