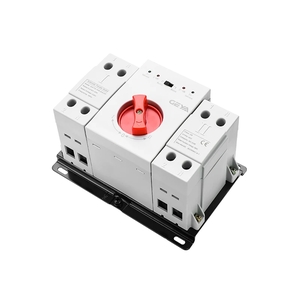

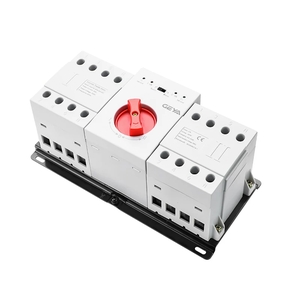

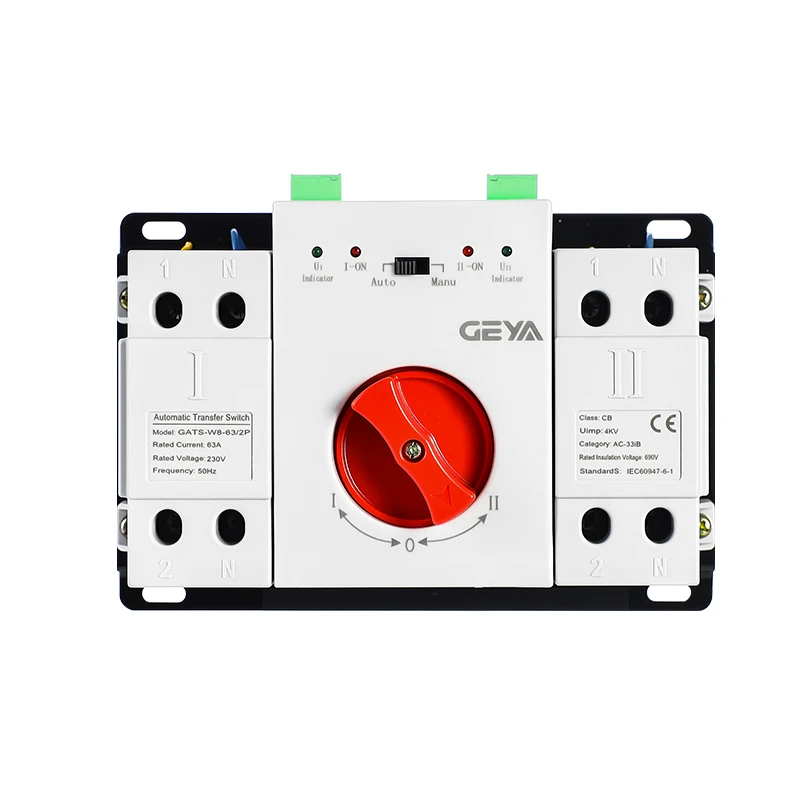

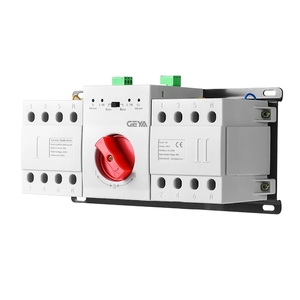

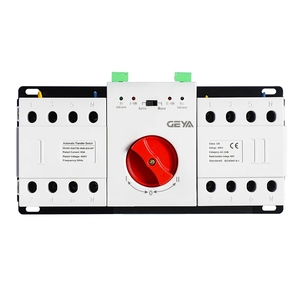

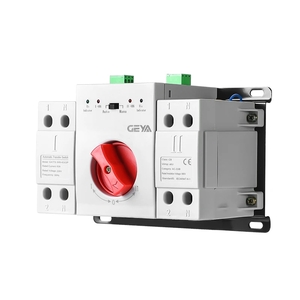

The GATS-W8 dual power automatic transfer switch is designed for terminal-type dual-circuit power supply systems. It supports automatic transfer between two power sources and also provides manual switching for maintenance or controlled operation.
Key Features
- Suitable for 50Hz/60Hz systems.
- Rated working voltage of 220V for 2P and 380V for 4P versions.
- Rated current options from 10A to 63A.
- Supports automatic and manual switching.
- Includes overload and short-circuit protection functions.
- Compact construction for installation in limited panel space.
Applications
- Residential dual-power supply systems.
- Commercial panels requiring normal/backup supply conversion.
- Terminal-type power distribution systems where 2P or 4P transfer is required.
Technical Summary
| Rated current | 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|---|
| Poles | 2P, 4P |
|---|
| Rated working voltage | 220V for 2P; 380V for 4P |
|---|
| Rated frequency | 50Hz / 60Hz |
|---|
| Protection | Overload protection and short-circuit protection |
|---|

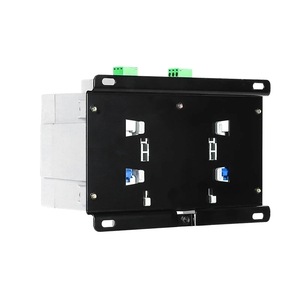

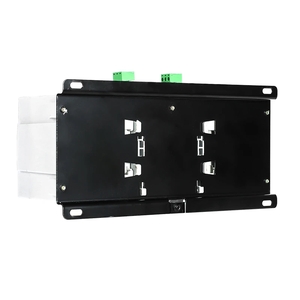

| Mounting | Screw-on installation |
|---|
