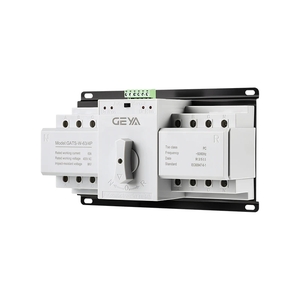

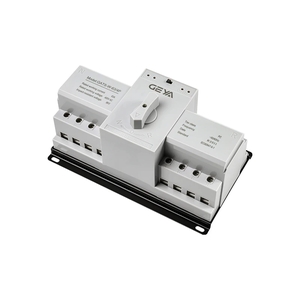

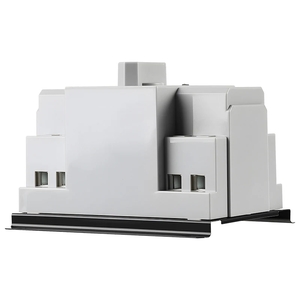

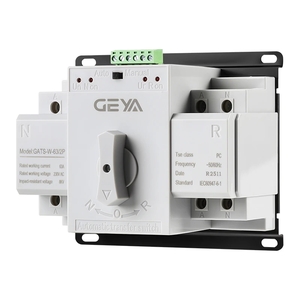

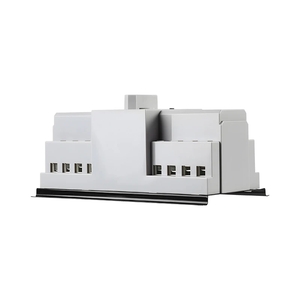

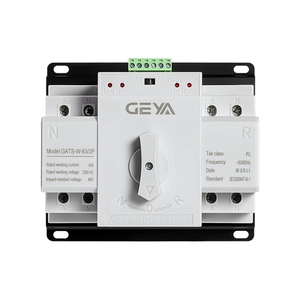

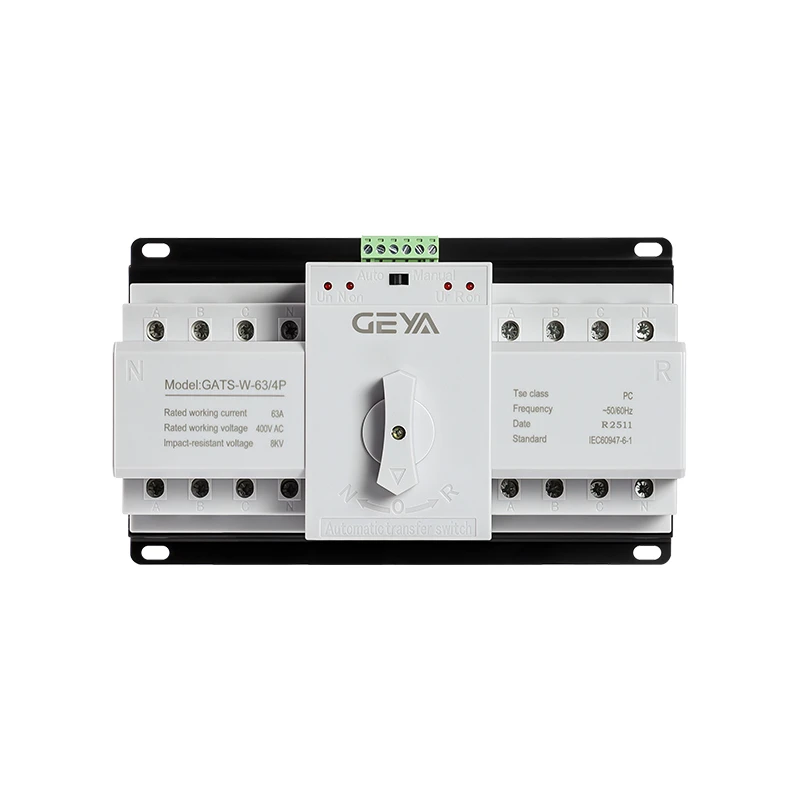

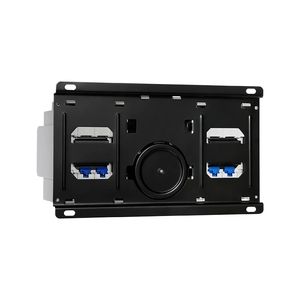

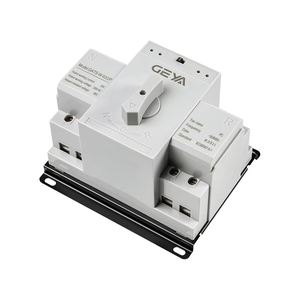

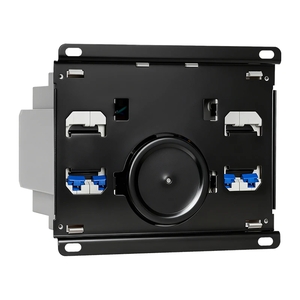

GATS-W-63 Mini Automatic Transfer Switch


Description

The GATS-W-63 mini automatic transfer switch is used for selective conversion between two power sources in AC 50Hz or 60Hz systems. It is a compact CB-grade transfer device for rated voltage 400V and rated working current up to 63A.

Key Features

  • Compact structure for small distribution panels.
  • Protective cover for safer and more reliable operation.
  • Automatic and manual conversion functions.
  • Designed for dual-power transfer where selective conversion is required.

Technical Parameters

Rated operating current Ie6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Electrical equipment gradeGrade CB
Utilization categoryAC-33iB
Tripping current5-10In type C; 10-15In type D
Rated operating voltage Ue220V for 2-pole; 380V for 3-pole and 4-pole
Rated frequency60Hz
Rated short-circuit making capacity Icm9.18kA, 6.615kA
Rated short-circuit breaking capacity Icn10kA, 4.5kA
