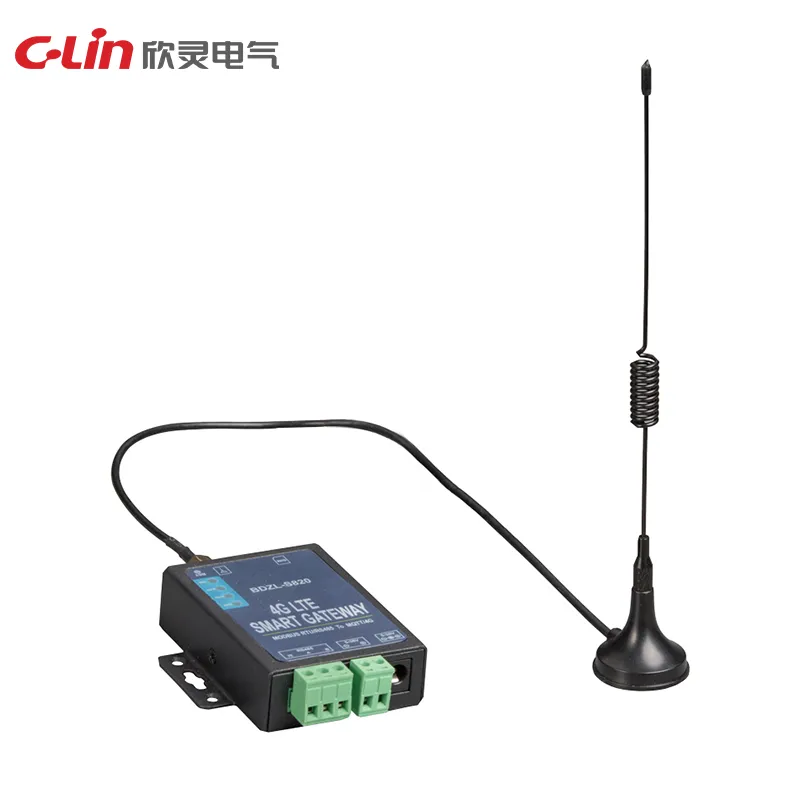

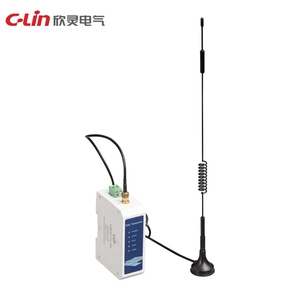

CBOX Series gateways connect field control devices to cellular data networks for remote communication and data exchange. The gateway supports LTE-TDD and LTE-FDD bands, TCP/UDP/MQTT protocols, RS232/RS485 device interfaces and an external SMA antenna connection.
| Parameter | Specification |
|---|---|
| Model | CBOX |
| Power Supply | DC24V |
| Supported LTE Bands | LTE-TDD B34/B38/B39/B40/B41; LTE-FDD B1/B3/B5/B8 |
| Data Rate | LTE-TDD up to 7.5Mbps downlink and 1Mbps uplink; LTE-FDD up to 10Mbps downlink and 5Mbps uplink |
| Transmit Power | Class 3, 23dBm +/-2dB for LTE TDD and LTE FDD bands |
| Network Protocol | TCP, UDP and MQTT |
| RF Interface | SMA-K external-thread inner-hole connector |
| Baud Rate | Default 115200bps; maximum 460800bps |
| Data Interface | RS232 / RS485 |
| Dimensions | CBOX1: 30 x 110 x 66 mm; CBOX2: 75.3 x 90.7 x 21 mm |
| Ambient Temperature | -30 to +75 deg C |
