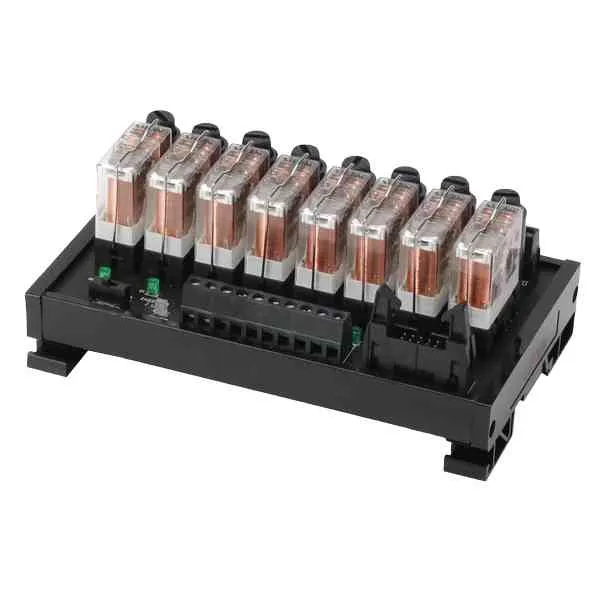

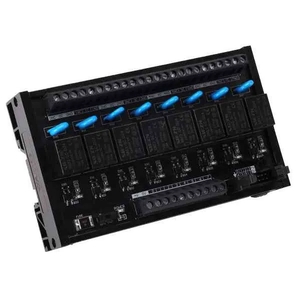

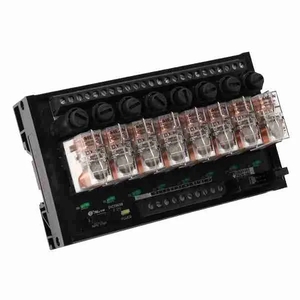

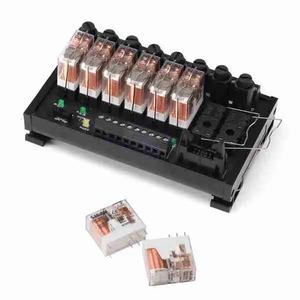

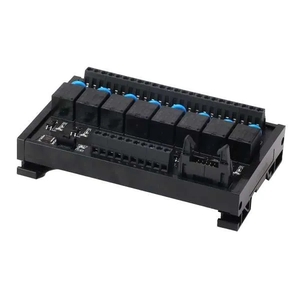

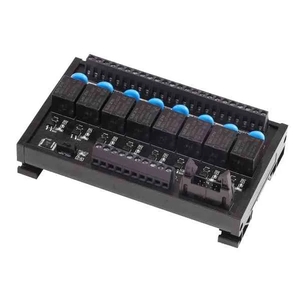

FY-NGG2R / FY-T73 Interface Relay Modules


Description

FY-NGG2R and FY-T73 interface relay modules are relay terminal modules for output load current amplification and isolation protection in PLC, microprocessor, and time relay control systems.

Shared Technical Data

Input operating voltageRated DC/AC +/-10%
Relay mountingSoldered on PCB
Rated load current10A 250V AC / 30V DC
Maximum inrush current10A
Operate timeUp to 10ms at normal voltage
Release timeUp to 10ms at normal voltage
Input/output connectionScrew terminal block
Wire range0.2 to 2.5mm2
Stripping length6-7 mm
DIN rail mounting15/28/35 mm
Power per channel0.45W

Applications

  • PLC output isolation and load current amplification.
  • Control cabinets requiring relay status indication, surge suppression, and overvoltage protection per channel.
  • DIN rail relay interface installations with screw terminal input and output wiring.
