FRL700A three-unit combinations prepare compressed air with a separate F200A filter, R200A pressure regulator and L200A lubricator. Choose the -01 or -02 version for the required port size; both have a maximum flow rating of 1850L/min (ANR).
| Model | Components | Port Rc(G) | Maximum flow, L/min (ANR) | Working pressure | ||
|---|---|---|---|---|---|---|
| Filter | Regulator | Lubricator | ||||
| FRL700A-01 | F200A | R200A | L200A | 1/8″ | 1850 | 0.15-0.85MPa |
| FRL700A-02 | F200A | R200A | L200A | 1/4″ | 1850 | |
| Item | Specification |
|---|---|
| Working medium | Compressed air |
| Standard drain | Differential-pressure type |
| Ambient temperature | 5-60°C |
| Recommended oil | ISO VG32 turbine oil |
| Body material | Aluminum alloy |

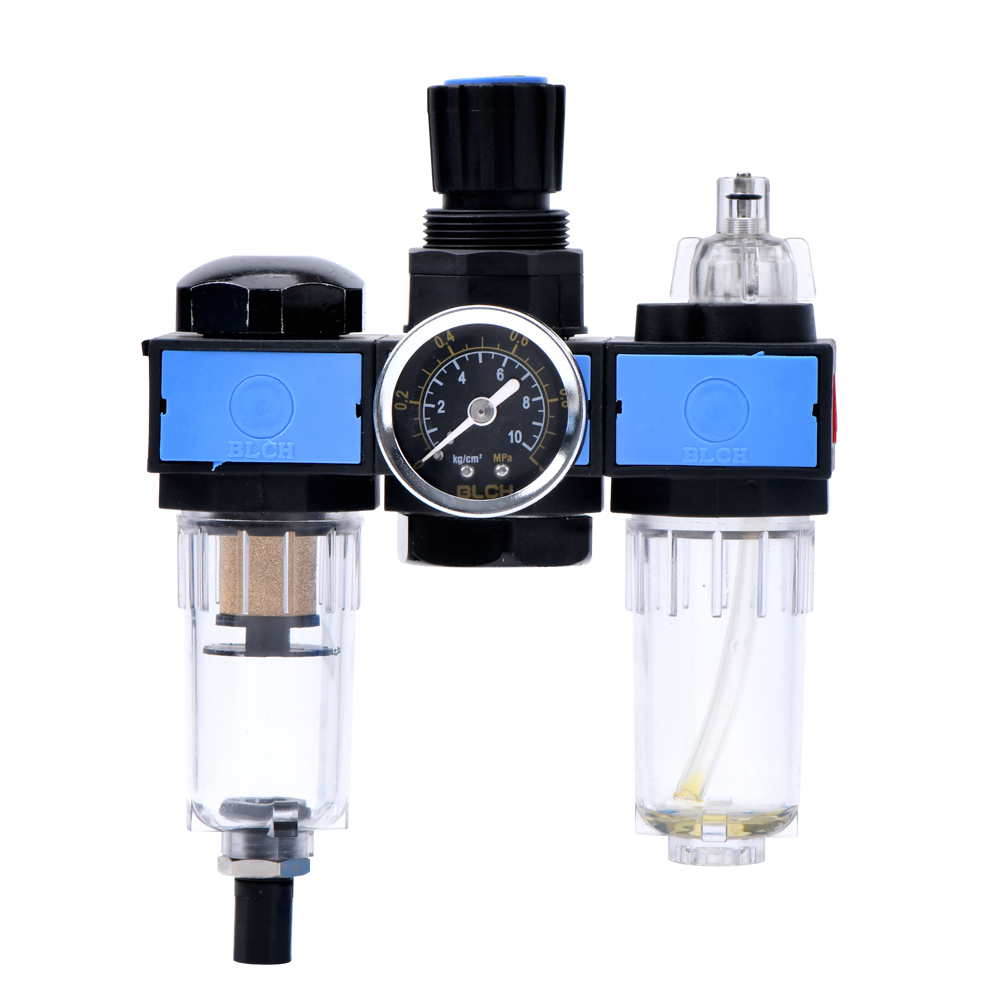

The assembly includes a pressure adjustment knob, a gauge, a transparent filter bowl and a lubricator sight dome. The filter drain is below the bowl.

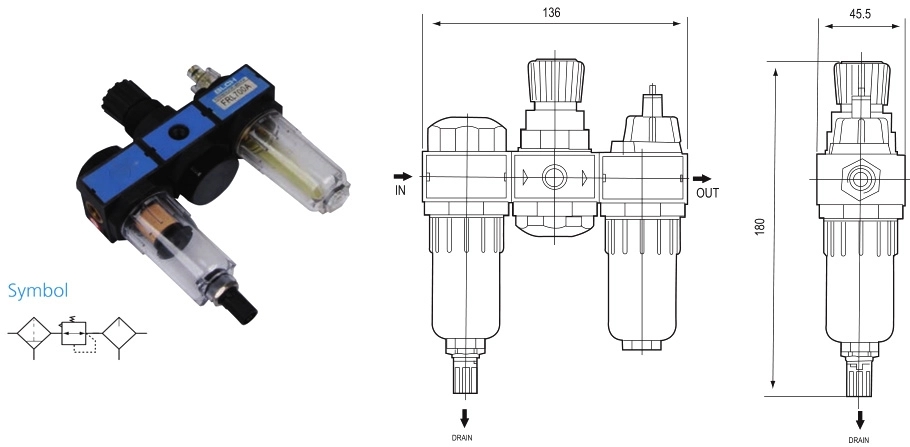

The drawing shows the pneumatic symbol, inlet and outlet direction, and front and side dimensions. The labelled dimensions are 136mm across the assembly, 180mm vertically and 45.5mm in the side view.
The attached Pneumatic Components Catalogue includes the FRL700A range alongside other pneumatic products.
