FRL600A combines an FR500A filter-regulator and an L200A lubricator in a two-unit assembly. The -01 and -02 models share the same component family and working pressure, with different port sizes and maximum flow ratings.
| Model | Components | Port Rc(G) | Maximum flow, L/min (ANR) | Working pressure | |
|---|---|---|---|---|---|
| Filter-regulator | Lubricator | ||||
| FRL600A-01 | FR500A | L200A | 1/8″ | 1650 | 0.15-0.85MPa |
| FRL600A-02 | FR500A | L200A | 1/4″ | 1850 | |
| Item | Specification |
|---|---|
| Standard drain | Differential-pressure type |
| Ambient temperature | 5-60°C |
| Recommended oil | ISO VG32 turbine oil |

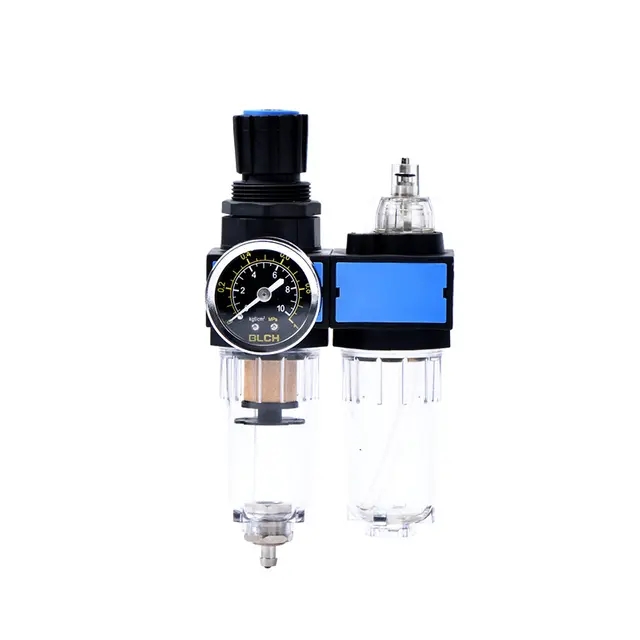

The filter-regulator includes a pressure adjustment knob and a local gauge. The transparent bowls provide a view of the filter element and lubricator contents, and the lubricator includes a sight dome.

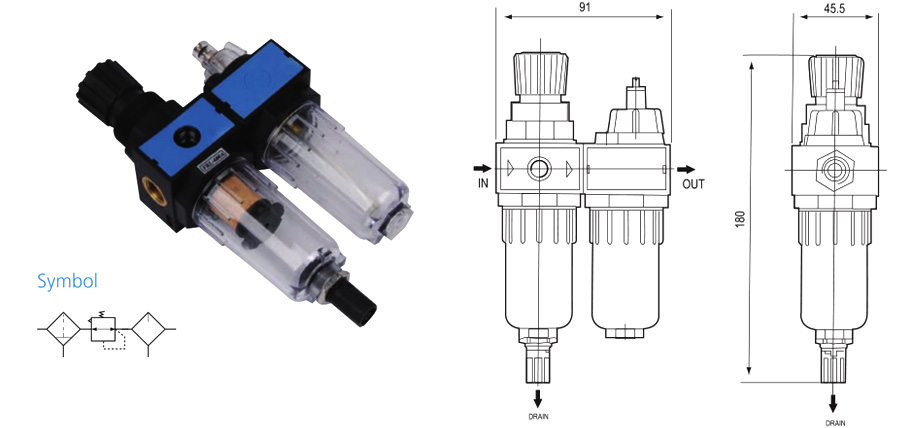

The illustrated outline has labelled dimensions of 91mm across the two units, 180mm vertically and 45.5mm in the side view. The drawing also identifies the inlet, outlet and filter drain, together with the pneumatic symbol.
The attached Pneumatic Components Catalogue includes the FRL600A family and other pneumatic components.
