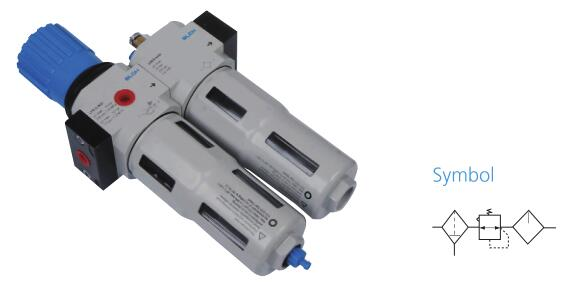

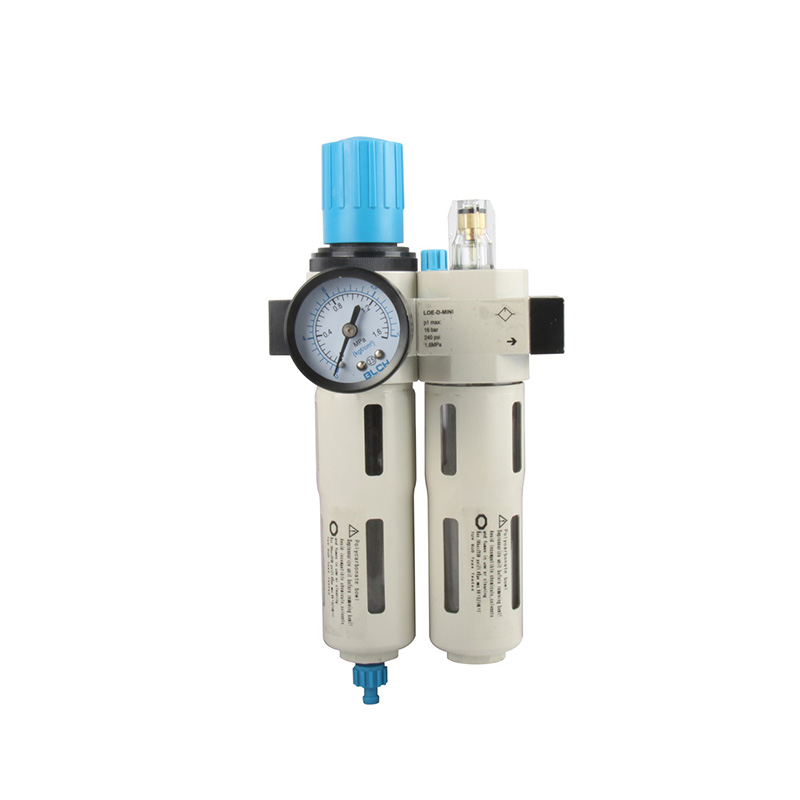

FRC air preparation sets combine an LFR filter-regulator and an LOE lubricator. MINI and MIDI sizes provide six port and flow combinations, with 40μm standard filtration, optional 5μm filtration and manual or automatic drainage.
| Model | Filter-regulator | Lubricator | Port size | Maximum flow, L/min (ANR) |
|---|---|---|---|---|
| FRC-MINI-01 | LFR-MINI | LOE-MINI | 1/8″ | 700 |
| FRC-MINI-02 | 1/4″ | 1000 | ||
| FRC-MINI-03 | 3/8″ | 1200 | ||
| FRC-MIDI-02 | LFR-MIDI | LOE-MIDI | 1/4″ | 1500 |
| FRC-MIDI-03 | 3/8″ | 2000 | ||
| FRC-MIDI-04 | 1/2″ | 2600 |
| Item | Specification |
|---|---|
| Maximum inlet pressure | 1.6MPa |
| Regulated working pressure | 0.15-1.2MPa |
| Filter element | 40μm standard; 5μm optional |
| Drain | Manual standard; automatic optional |
| Ambient temperature | 5-60°C |
| Recommended oil | ISO VG32 turbine oil |
| Body material | Zinc alloy |

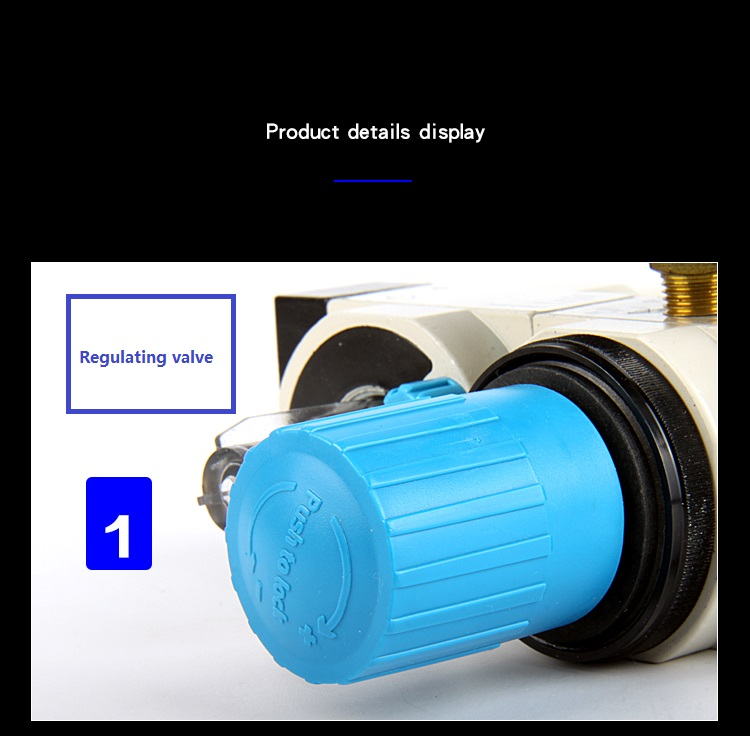

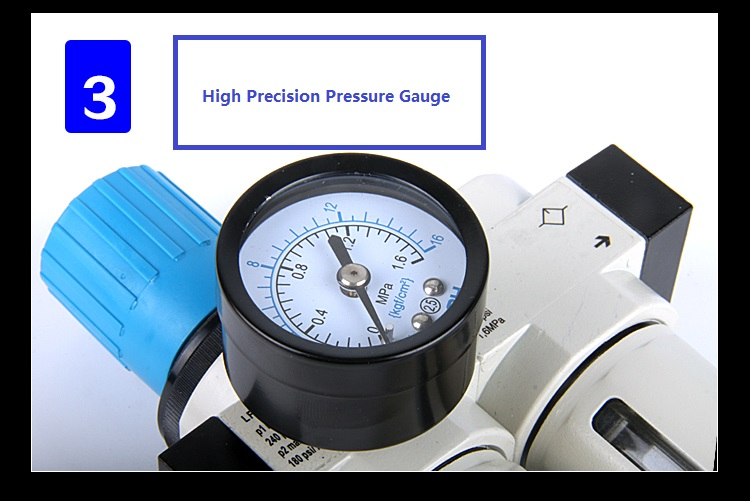

The regulator knob sets the outlet pressure, and the fitted gauge provides a local reading. The maximum inlet pressure and regulated working range are separate ratings.

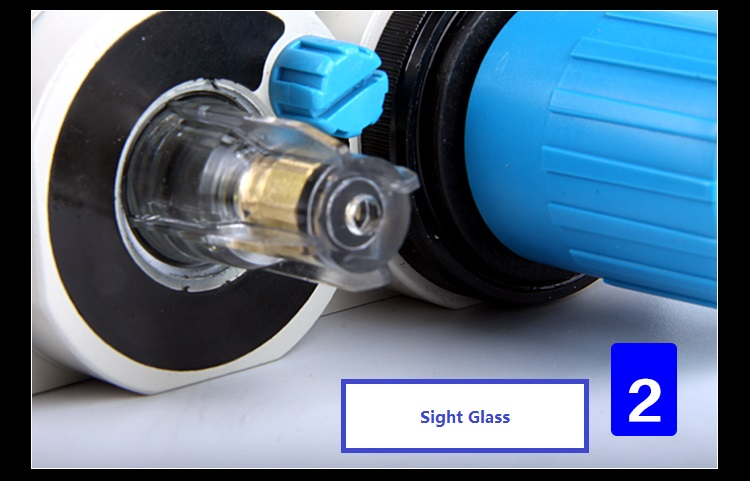

The lubricator includes a sight glass for observing oil delivery and supports replenishment while the air system remains operating. Follow the equipment operating instructions for refilling.
Dimensions correspond to A, B and C in the FRC outline in the attached catalogue. Values apply to all listed port variants of each size.
| Size | A, mm | B, mm | C, mm |
|---|---|---|---|
| FRC-MINI-01/02/03 | 104 | 210 | 40 |
| FRC-MIDI-02/03/04 | 140 | 268 | 55 |
The Pneumatic Components Catalogue covers the FRC range and other pneumatic components.
