FR500A Air Filter-Regulators

Series Part Number

Part Number: FR500A - 01
Explanation:

Series

FR500A - Combined air filter-regulator series

Port Size

01 - 1/8in
02 - 1/4in

Description

FR500A combines air filtration and pressure regulation in one unit. The -01 model has a 1/8″ port, while the -02 model has a 1/4″ port; both use the same working pressure range and filter-element options.

Models and flow ratings

ModelPort Rc(G)Standard filtrationMaximum flow, L/min (ANR)Working pressure
FR500A-011/8″40μm18400.15-0.85MPa
FR500A-021/4″1940

Filtration and drainage

ItemSpecification
Optional filtration5μm
Standard drainDifferential-pressure type
Ambient temperature5-60°C

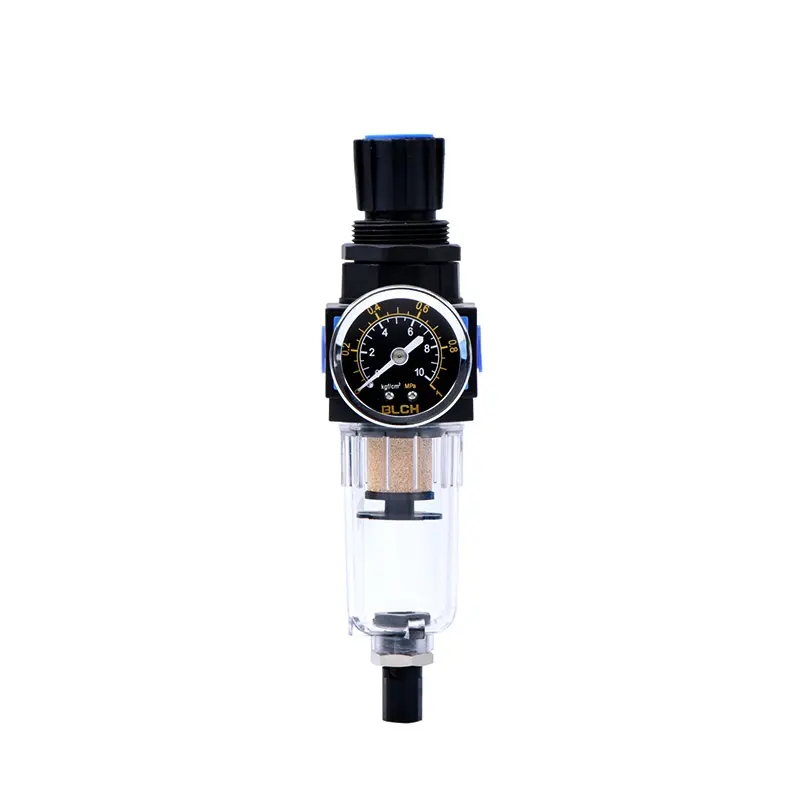

The unit includes a pressure adjustment knob, a fitted gauge and a transparent filter bowl. The drain is located below the bowl.

Installation outline

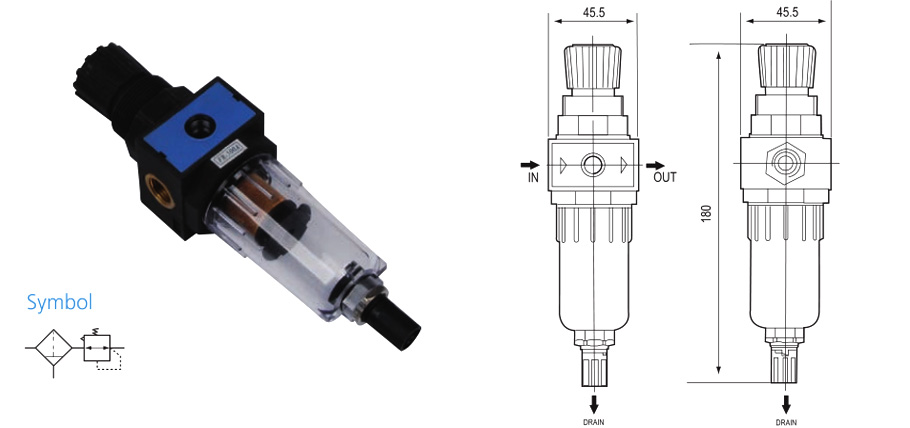

The drawing shows 45.5mm across the front and side views and a 180mm vertical dimension. It also identifies the inlet, outlet and drain, together with the filter-regulator pneumatic symbol.

FR500A filter-regulator outline and pneumatic symbol
FR500A installation outline and flow direction; dimensions in mm.

The attached Pneumatic Components Catalogue includes FR500A filter-regulators and the wider pneumatic range.
