Forward And Reverse Controller HHD7 Series


Description

HHD7 Series forward and reverse controllers automate timed motor direction changes with stop intervals between forward and reverse operation. The range includes fixed-delay controllers, selectable timing versions, wide-range digital models and a spray-cycle controller, so each item is kept separately by timing range, operation mode and installation format.

Common Parameters

ParameterSpecification
Contact Capacity3A AC250V resistive load for relay-output versions
Typical OperationForward rotation, stop, reverse rotation and stop cycle control

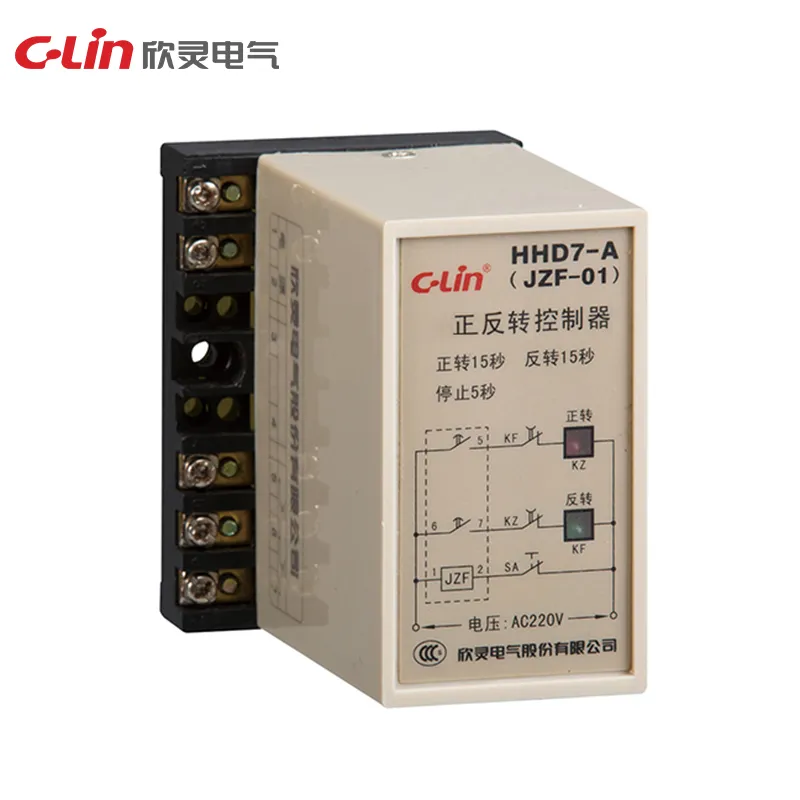

HHD7-A / HHD7-A1

ParameterSpecification
Power SupplyAC24V, AC220V or AC380V, 50Hz
Delay RangeHHD7-A: forward/reverse 15s, stop 5s; HHD7-A1: forward/reverse 25s, stop 5s
Repeat Error1% or less
Contact FormTwo normally open contacts
Dimensions65 x 77.5 x 72.5 mm
Installation MethodScrew mounting

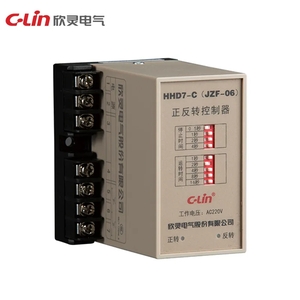

HHD7-C

ParameterSpecification
Power SupplyAC24V, AC220V or AC380V, 50Hz
Forward / Reverse Time1s, 2s, 4s, 8s or 16s
Stop Time0.5s, 1s, 2s or 4s
Repeat Error1% or less
Contact FormTwo normally open contacts
Dimensions65 x 77.5 x 72.5 mm
Installation MethodScrew mounting

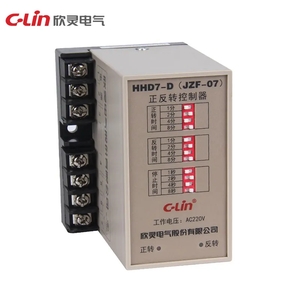

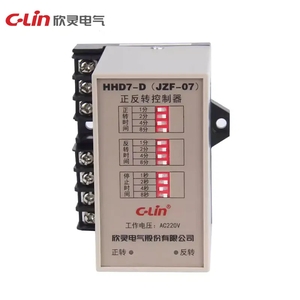

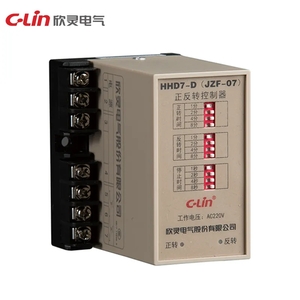

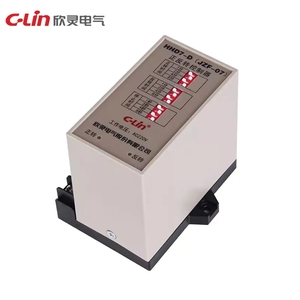

HHD7-D / HHD7-D1 / HHD7-D2

ParameterSpecification
Power SupplyAC24V, AC220V or AC380V, 50Hz
Forward / Reverse TimeHHD7-D: 1m, 2m, 4m or 8m; HHD7-D1: 1s, 2s, 4s or 8s; HHD7-D2: 1s, 2s, 4s or 8s multiplied by 15
Stop Time1s, 2s, 4s or 8s
Repeat Error1% or less
Contact FormTwo normally open contacts
Dimensions65 x 77.5 x 72.5 mm
Installation MethodScrew mounting

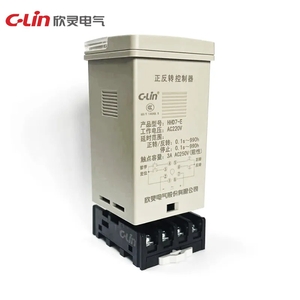

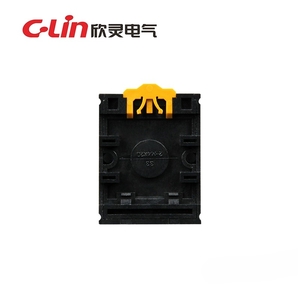

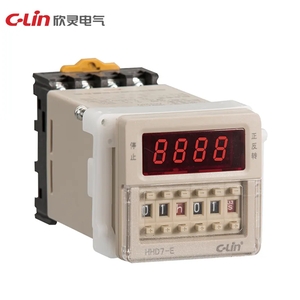

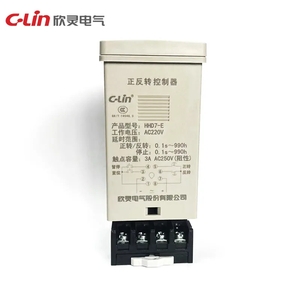

HHD7-E

ParameterSpecification
Power SupplyDC24V; AC24V, AC220V or AC380V, 50Hz
Delay RangeForward/reverse 0.1s to 990h; stop 0.1s to 990h
Repeat Error1% or less
Operation ModeForward first, stop, reverse, stop; adjustable
Contact FormTwo normally open contacts with reset/pause terminal
Dimensions48 x 48 x 105 mm
Installation MethodPanel, screw or 35mm DIN rail mounting

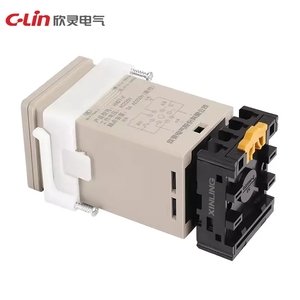

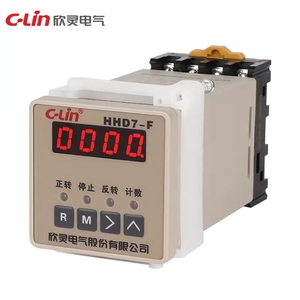

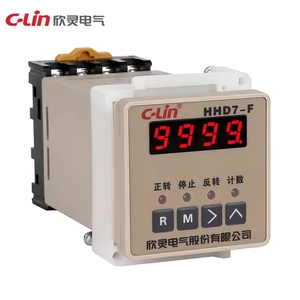

HHD7-F

ParameterSpecification
Power SupplyDC24V; AC24V, AC220V or AC380V, 50Hz

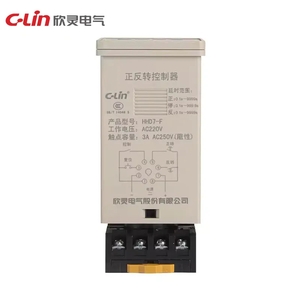

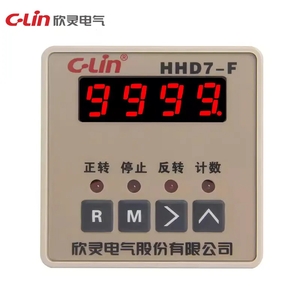

Forward / Reverse Time1s to 99m99s, 0.1s to 999.9s or 1s to 9999s
Stop Time0.1s to 999.9s
Action CountUnlimited or settable from 1 to 9999 times
Operation ModeStop-forward-stop-reverse cycle or forward-stop-reverse cycle
Contact FormTwo normally open contacts with control reset terminal
Dimensions48 x 48 x 108 mm
Installation MethodPanel, screw or 35mm DIN rail mounting

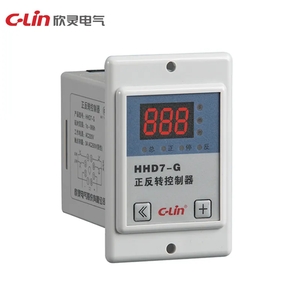

HHD7-G

ParameterSpecification
Power SupplyDC24V; AC24V, AC220V or AC380V, 50Hz
Timing RangeForward/reverse, stop and total time each settable from 1s to 999h
Contact FormForward/reverse: two normally open contacts; total time: one normally open and normally closed contact set
Dimensions57 x 86 x 81 mm
Panel Cutout53 x 61 mm; 75.5-2 x Phi 4.5 mm mounting
Installation MethodPanel mounting

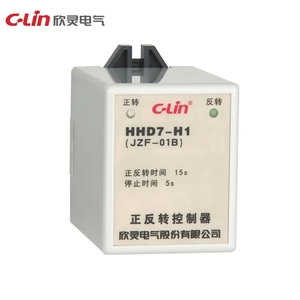

HHD7-H1

ParameterSpecification
Power SupplyDC24V; AC24V, AC220V or AC380V
Delay RangeForward/reverse 15s with stop 5s, or forward/reverse 25s with stop 5s
Repeat Error1% or less
Contact FormTwo normally open contacts
Dimensions50 x 78 x 80 mm
Installation MethodScrew mounting or 35mm DIN rail mounting

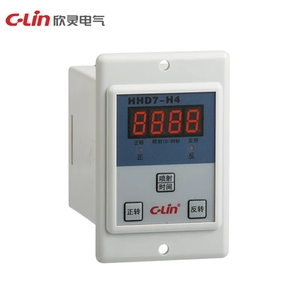

HHD7-H4

ParameterSpecification
Power SupplyDC24V; AC24V, AC220V or AC380V, 50Hz
Delay RangeSpray time 10-99s settable; forward and reverse 3s; stop positioning 0.1-24s settable
Counting Times1-9 times settable
Repeat Error1% or less
Operation ModeCycle delay
Display ModeDigital tube indication
OutputTwo voltage outputs
Dimensions57 x 86 x 81 mm
Panel Cutout53 x 61 mm; 75.5-2 x Phi 4.5 mm mounting
Installation MethodPanel mounting
