The fork type busbar is used for power distribution between modular protective devices in distribution boards. The series covers 2P and 4P fork-type configurations, with M5 and M6 dimension variants for different terminal structures.
Common Parameters
| Connection type | Fork type |
|---|
| Rated current reference | 50A, 63A, 70A, 80A according to cross section |
|---|
| Distance | 17.8mm |
|---|
| Cross section options | 8mm², 10mm², 13mm², 16mm² |
|---|
| Reference current by cross section | 8mm²: 50A; 10mm²: 63A; 13mm²: 70A; 16mm²: 80A |
|---|
M5 And M6 Fork Dimensions
| Variant | Width of Fork | Length of Fork |
|---|
| M5 / F type | 12mm | 12mm |
| M6 / G type | 11mm | 13.5mm |

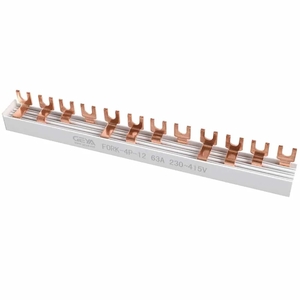

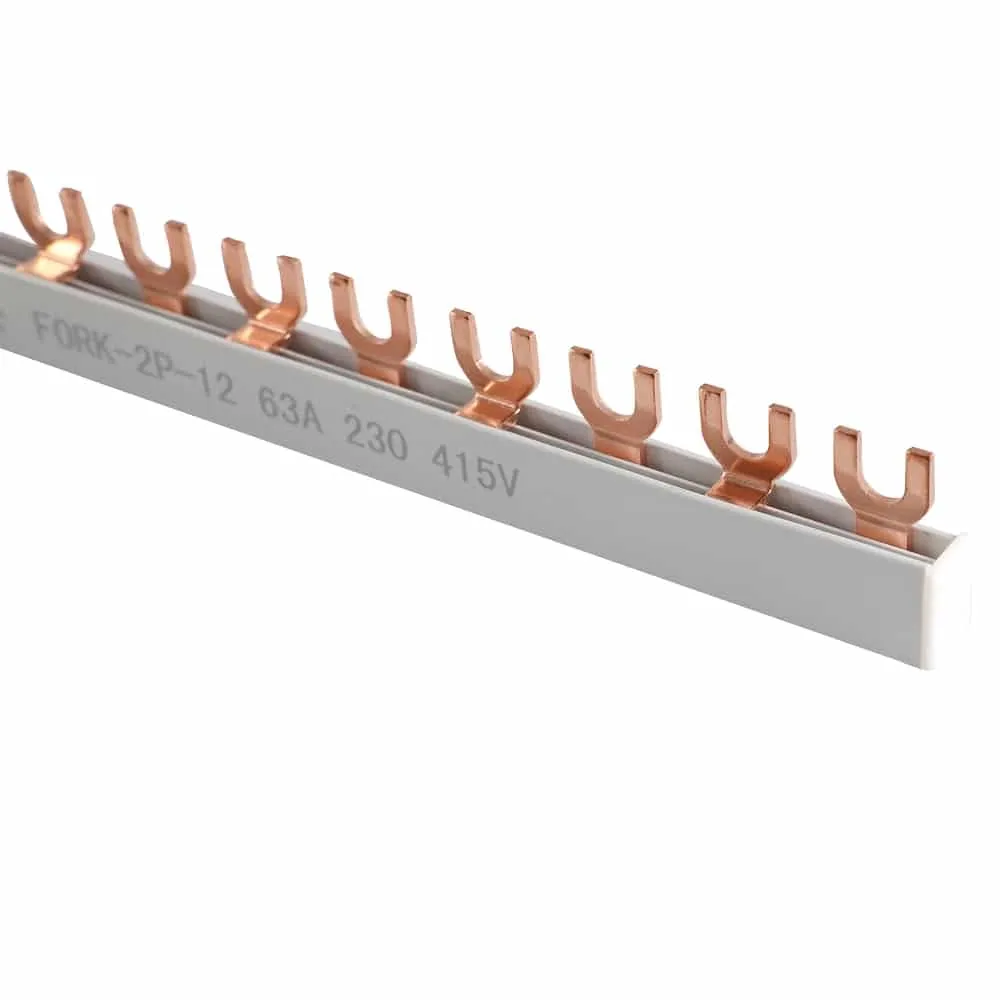

2P Fork Busbar
| Variant | Description | Article No. | Cross Section | Modules | Length | Reference Current |
|---|
| M5 | F-2L-210/8, /10, /13, /16 | KF21208, KF21210, KF21213, KF21216 | 8-16mm² | 12 | 210mm | 50-80A |
| M5 | F-2L-1000/8, /10, /13, /16 | KF25408, KF25410, KF25413, KF25416 | 8-16mm² | 54 | 1000mm | 50-80A |
| M5 | F-2L-1016/8, /10, /13, /16 | KF25608, KF25610, KF25613, KF25616 | 8-16mm² | 56 | 1016mm | 50-80A |
| M6 | G-2L-210/8, /10, /13, /16 | KG21208, KG21210, KG21213, KG21216 | 8-16mm² | 12 | 210mm | 50-80A |
| M6 | G-2L-1000/8, /10, /13, /16 | KG25408, KG25410, KG25413, KG25416 | 8-16mm² | 54 | 1000mm | 50-80A |
| M6 | G-2L-1016/8, /10, /13, /16 | KG25608, KG25610, KG25613, KG25616 | 8-16mm² | 56 | 1016mm | 50-80A |
4P Fork Busbar
| Variant | Description | Article No. | Cross Section | Modules | Length | Reference Current |
|---|
| M5 | F-4L-210/8, /10, /13, /16 | KF41208, KF41210, KF41213, KF41216 | 8-16mm² | 12 | 210mm | 50-80A |
| M5 | F-4L-1016/8, /10, /13, /16 | KF45608, KF45610, KF45613, KF45616 | 8-16mm² | 56 | 1016mm | 50-80A |
| M6 | G-4L-210/8C, /10C, /13C, /16C | KG41208C, KG41210C, KG41213C, KG41216C | 8-16mm² | 12 | 210mm | 50-80A |
| M6 | G-4L-1016/8C, /10C, /13C, /16C | KG45608C, KG45610C, KG45613C, KG45616C | 8-16mm² | 56 | 1016mm | 50-80A |
