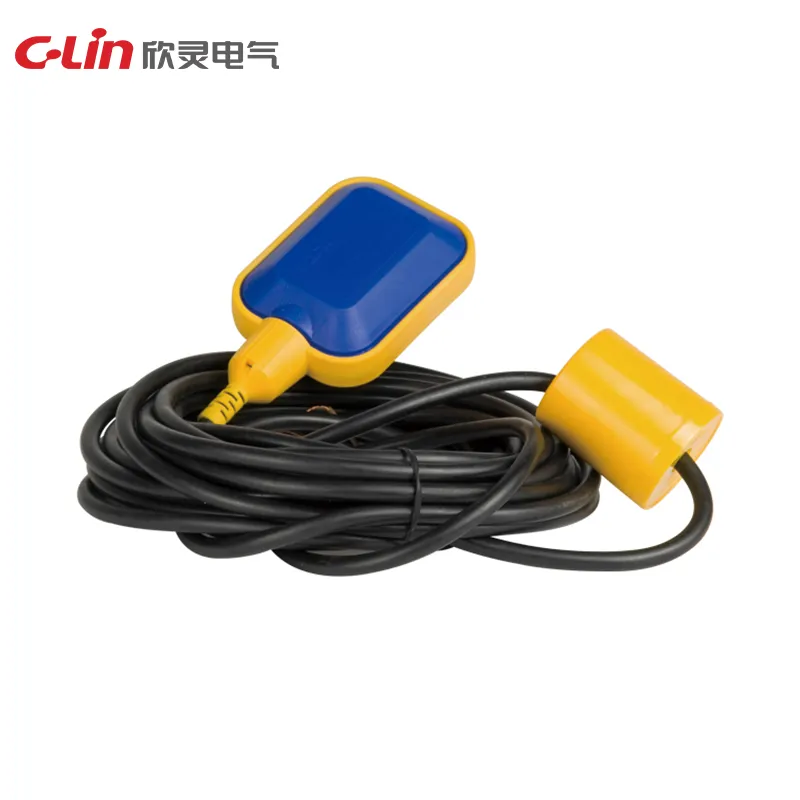

HHY14 is a floating-ball liquid level relay for simple water supply and drainage control. It uses a float contact mechanism, selectable lead lengths and a heavy-hammer fixing method for tank and reservoir level switching.
| Parameter | Specification |
|---|---|
| Model | HHY14 |
| Working Mode | Float contact type; water supply or drainage mode selected by shorting terminal |
| Contact Form | One normally open and one normally closed contact |
| Contact Capacity | 10A AC250V resistive load; 10(8A) 250V to 10(4A) 380V resistive listing also provided |
| Lead Length | 1m, 2m, 3m, 4m, 5m or 10m; other lengths available by request |
| Dimensions | 160 x 80 x 45 mm |
| Installation Method | Heavy-hammer fixing / screw installation listing |
