FI oil atomizer nozzles provide a compact range of Atomizer 9 and Atomizer 12 variants for burner service. The group keeps W2, WE, and K3 atomizer types together while preserving each article number, spray angle, and kg/h capacity for selection work.
Model Specifications
Variant
Atomizer type
Article No.
Spray angle
Size (kg/h)
Atomizer 12, W2, 550 kg h, 60°
W2
221 22 668
60
550
Atomizer 12, WE, 460 kg h, 50°
WE
221 22 177
50
460
Atomizer 12, WE, 420 kg h, 50°
221 22 178
420
Atomizer 12, W2, 450 kg h, 60°
W2
221 22 667
60
450
Atomizer 12, W2, 400 kg h, 60°
221 22 669
400
Atomizer 9, K3, 220 kg h, 45°
K3
221 22 666
45
220
Atomizer 9, K3, 200 kg h, 45°
222 23 218
200
Product Detail Images

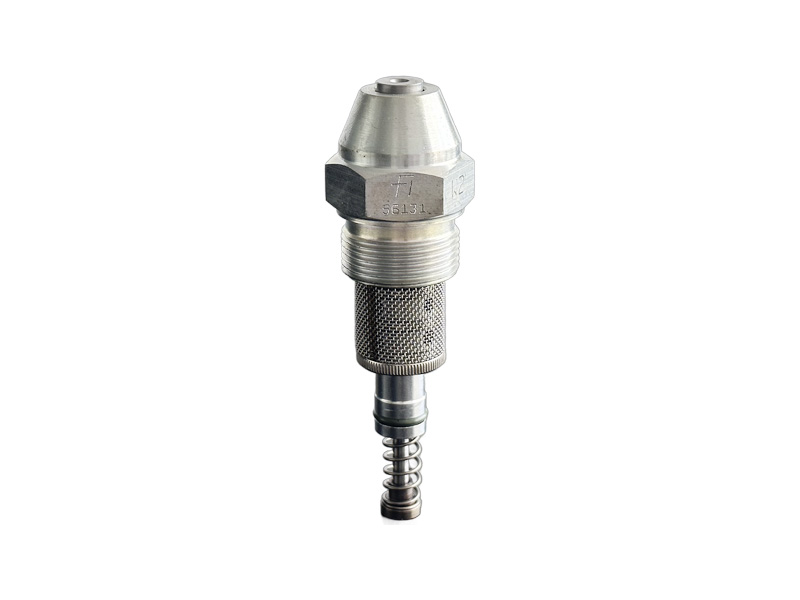

Atomizer 12, W2, 550 kg h, 60°
Atomizer outlet, filter and lower stem.Atomizer body with engraved flow identification.Atomizer outlet and spray-angle identification.Atomizer side identification and threaded connection.Atomizer filter and lower stem viewed from another side.
Atomizer 12, WE, 460 kg h, 50°
Atomizer body with WE identification, filter and lower stem.Atomizer body with engraved flow identification.Atomizer outlet and spray-angle identification.Atomizer side identification and threaded connection.Atomizer filter and lower stem viewed from another side.
Atomizer 12, WE, 420 kg h, 50°
Atomizer body with WE identification, filter and lower stem.Atomizer body with engraved flow identification.Atomizer outlet and spray-angle identification.Atomizer side identification and threaded connection.Atomizer filter and lower stem viewed from another side.
Atomizer 12, W2, 450 kg h, 60°
Atomizer outlet, filter and lower stem.Atomizer body with engraved flow identification.Atomizer outlet and spray-angle identification.Atomizer side identification and threaded connection.Atomizer filter and lower stem viewed from another side.
Atomizer 12, W2, 400 kg h, 60°
Atomizer outlet, filter and lower stem.Atomizer body with engraved flow identification.Atomizer outlet and spray-angle identification.Atomizer side identification and threaded connection.Atomizer filter and lower stem viewed from another side.
Atomizer 9, K3, 220 kg h, 45°
Atomizer body with K3 identification, filter and lower stem.Atomizer body with engraved flow identification.Atomizer outlet and spray-angle identification.Atomizer side identification and threaded connection.Atomizer filter and lower stem viewed from another side.
Atomizer 9, K3, 200 kg h, 45°
Atomizer body with K3 identification, filter and lower stem.Atomizer body with engraved flow identification.Atomizer outlet and spray-angle identification.Atomizer side identification and threaded connection.Atomizer filter and lower stem viewed from another side.
