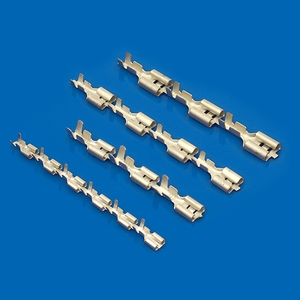

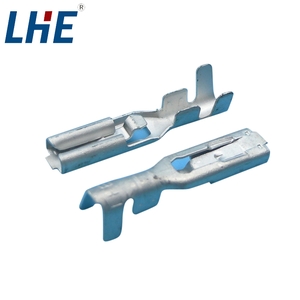

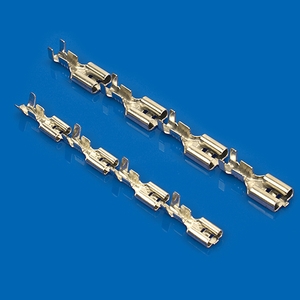

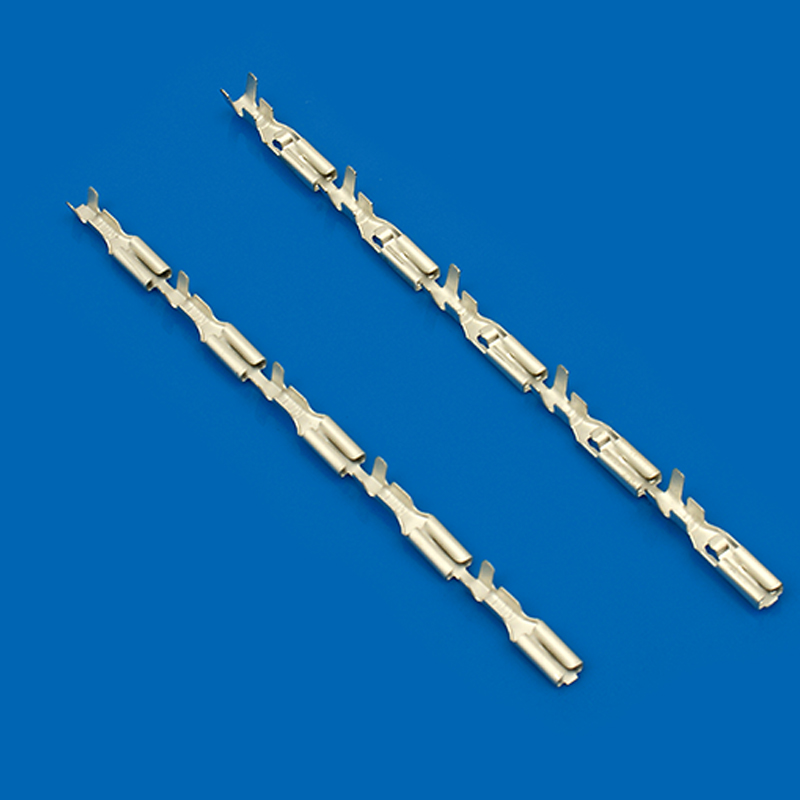

Faston 110 crimp terminals provide a 2.8 mm quick-disconnect interface for cable assemblies. Select the terminal model by the 0.5 or 0.8 mm tab thickness and the required crimp-barrel range.
The family covers 26–18 AWG overall, with some model summaries specifying narrower conductor selections. Confirm the exact terminal reference against the wire size and mating tab before production.
| Product role | Crimp terminal |
|---|---|
| Faston interface | 110; 2.8 mm tab |
| Tab thickness | 0.5 or 0.8 mm by model |
| Wire range | 26–18 AWG overall |
| Maximum current | 10 A |
| Maximum voltage | 300 VAC/DC |
| Contact material | Brass or phosphor bronze by model |
| Contact finish | Tin plating |
| Operating temperature | -25 °C to 85 °C |
| Packaging | Reel |
| UL file | E364711 |
