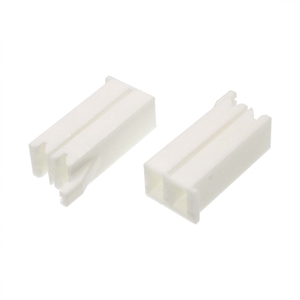

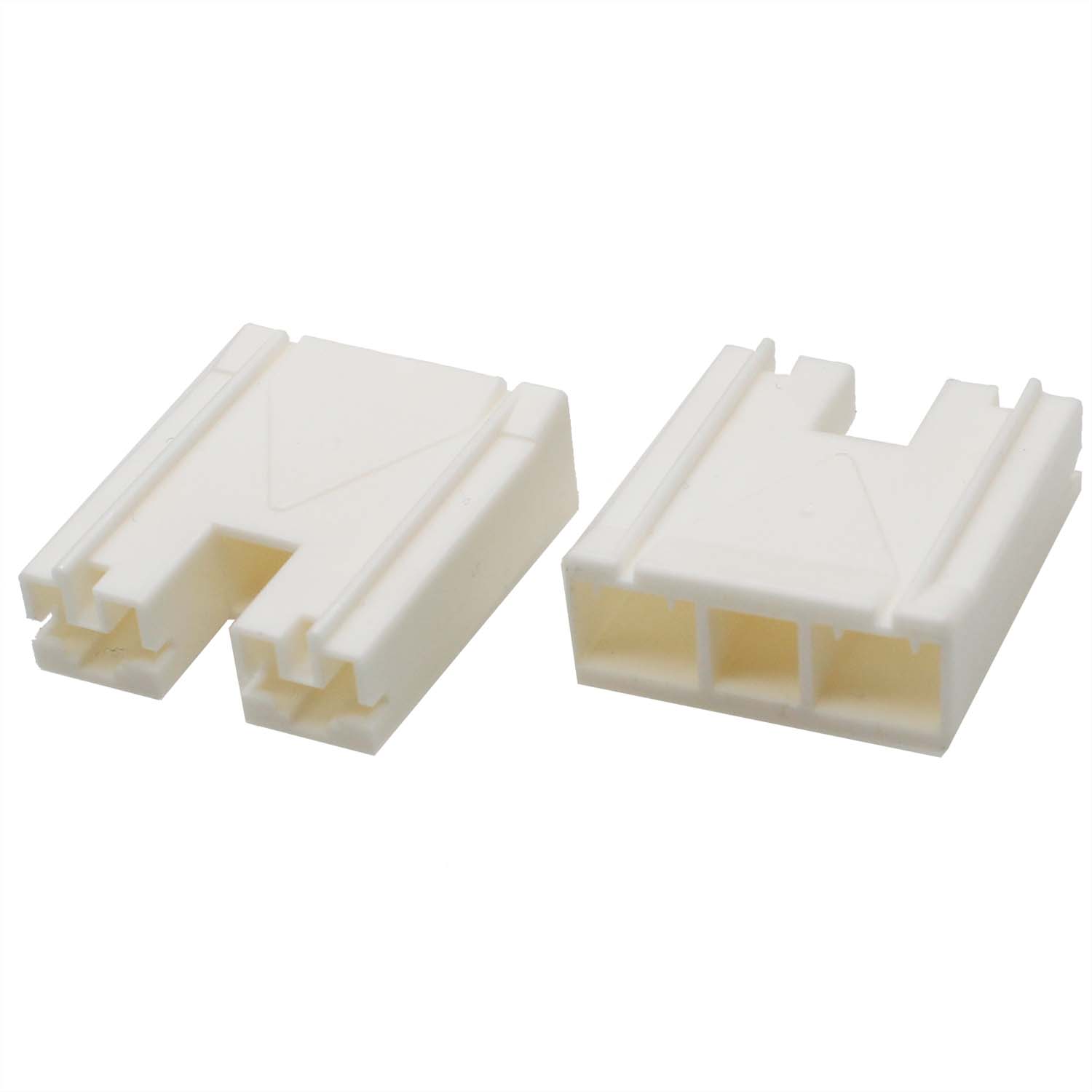

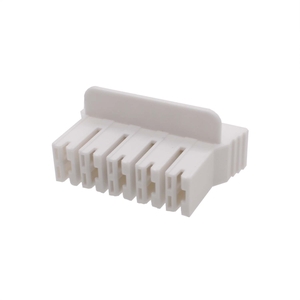

These Faston crimp terminal housings provide white nylon 66 UL94V-0 insulation for 110, 187 and 250 terminal interfaces. Select the housing model by the required interface, circuit count and row layout. D4803-H04 uses a 4.8 mm centerline.
Available models cover 1, 2, 4 and 5 positions in single- or double-row formats. Confirm the selected housing against the mating terminal and assembly drawing before release.
| Product role | Crimp terminal housing |
|---|---|
| Centerline | 4.8 mm for D4803-H04 |
| Faston interface | 110, 187 or 250 by model |
| Positions | 1, 2, 4 or 5 |
| Rows | Single or double row |
| Housing material | White nylon 66 UL94V-0 |
| Maximum current | 3–15 A by model |
| Maximum voltage | 250 VAC/DC where specified |
| Operating temperature | -40 °C to 105 °C or -25 °C to 105 °C by model |
| UL file | E364711 |
| Packaging | Bag or bag/carton |
