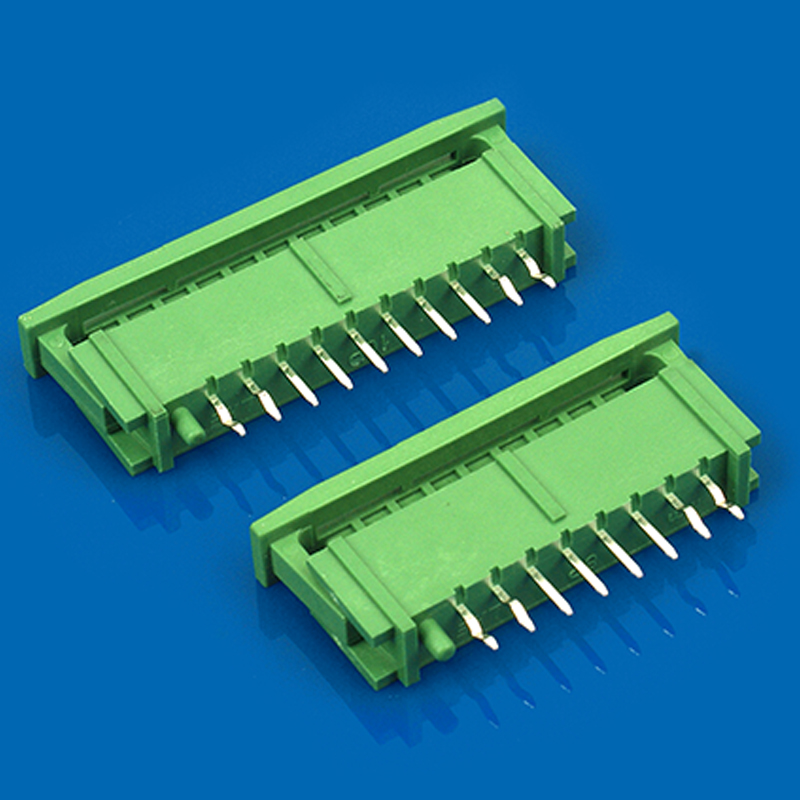

F2541 is a 2.54 mm FPC vertical header with 10 single-row positions. Its green PBT housing and tin-plated phosphor bronze contacts provide a defined board-mounted cable interface.
Use F2541 on a 1.6 mm PCB and confirm the mating cable, land pattern and assembly process against the drawing before production.
| Product role | Vertical header |
|---|---|
| Centerline | 2.54 mm |
| Positions | 10 |
| Rows | Single row |
| Housing material | Green PBT |
| Contact material and finish | Phosphor bronze, tin plating |
| Maximum current | 1 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -40 °C to 85 °C |
| PCB thickness | 1.6 mm |
| UL file | E364711 |
| Packaging | Bag/carton |
