EMC.HC uses nickel-plated die-cast zinc bodies with a metal lever-and-peg locking interface. Select the bulkhead housing and the hood configuration together with the cable-entry hardware required by the installation.
| Model | Configuration | Cable-entry interface | Locking interface |
|---|---|---|---|

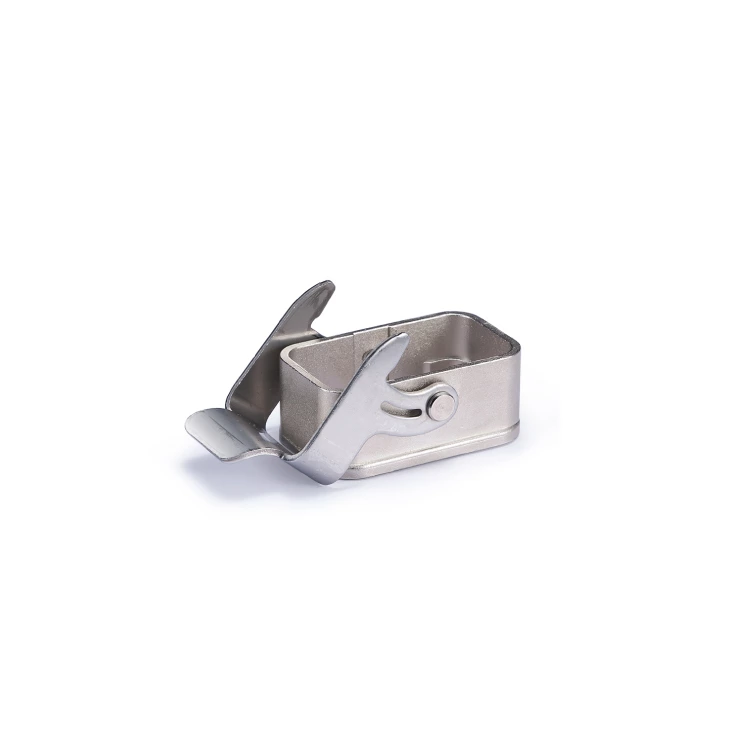

| EMC.HC-ST-1L | Bulkhead housing | Through panel | One metal lever |
| EMC.HC-SKHS-2B-M25 | Side-entry hood | Internal M25 thread | Two pegs |
| EMC.HC-TKHS-2B-M25 | Top-entry hood | Internal M25 thread | Two pegs |
| EMC.HC-TKH-2B-M25 | Top-entry hood | External M25 thread | Two pegs |
| EMC.HC-SKH-2B-M25 | Side-entry hood, extended body | External M25 thread | Two pegs |
| EMC.HC-SK-2B-M25 | Side-entry hood | External M25 thread | Two pegs |
Internal-thread and external-thread entries require different mating cable-entry components. Choose the full model designation to preserve this distinction.
| Property | Specification |
|---|---|
| Body material | Die-cast zinc |
| Surface finish | Nickel-plated |
| Locking mechanism | Elastic metal pressing lever engaging the hood pegs |
| Lever material | Stainless steel |
| Seal | NBR |
| Temperature range | -40°C to +125°C |
| Flammability of applicable nonmetallic components | UL94V0 |
| Protection | IP65 according to EN60529 for the correctly sealed and locked connector |
For an EMC installation, coordinate the housing, cable-screen connection and cable-entry components as a complete assembly. Allow access to the locking lever and space for the chosen cable-entry direction.
