Electrical Busbar System for Control Panels

Series Part Number

Part Number:	BB101
Explanation:	Catalog Number BB101N - 1P+N pin type, 32A BB101 / BB101A - 1-pole pin type, 63A / 100A BB201 / BB201A - 2-pole pin type, 63A / 100A BB301 / BB301A - 3-pole pin type, 63A / 100A BB401 / BB401A - 4-pole pin type, 63A / 100A BB102 / BB102A - 1-pole fork type, 63A / 100A BB202 / BB202A - 2-pole fork type, 63A / 100A BB302 / BB302A - 3-pole fork type, 63A / 100A BB402 / BB402A - 4-pole fork type, 63A / 100A

Part Number:

BB101

Explanation:

Catalog Number

BB101N - 1P+N pin type, 32A

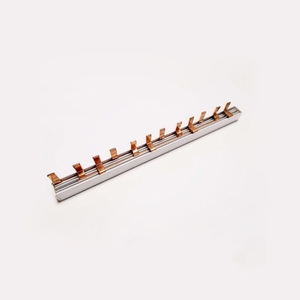

BB101 / BB101A - 1-pole pin type, 63A / 100A
BB201 / BB201A - 2-pole pin type, 63A / 100A
BB301 / BB301A - 3-pole pin type, 63A / 100A
BB401 / BB401A - 4-pole pin type, 63A / 100A

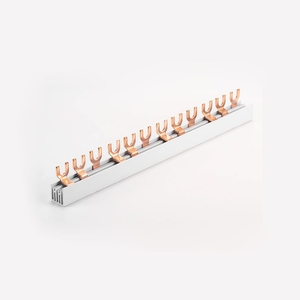

BB102 / BB102A - 1-pole fork type, 63A / 100A
BB202 / BB202A - 2-pole fork type, 63A / 100A
BB302 / BB302A - 3-pole fork type, 63A / 100A
BB402 / BB402A - 4-pole fork type, 63A / 100A

Description

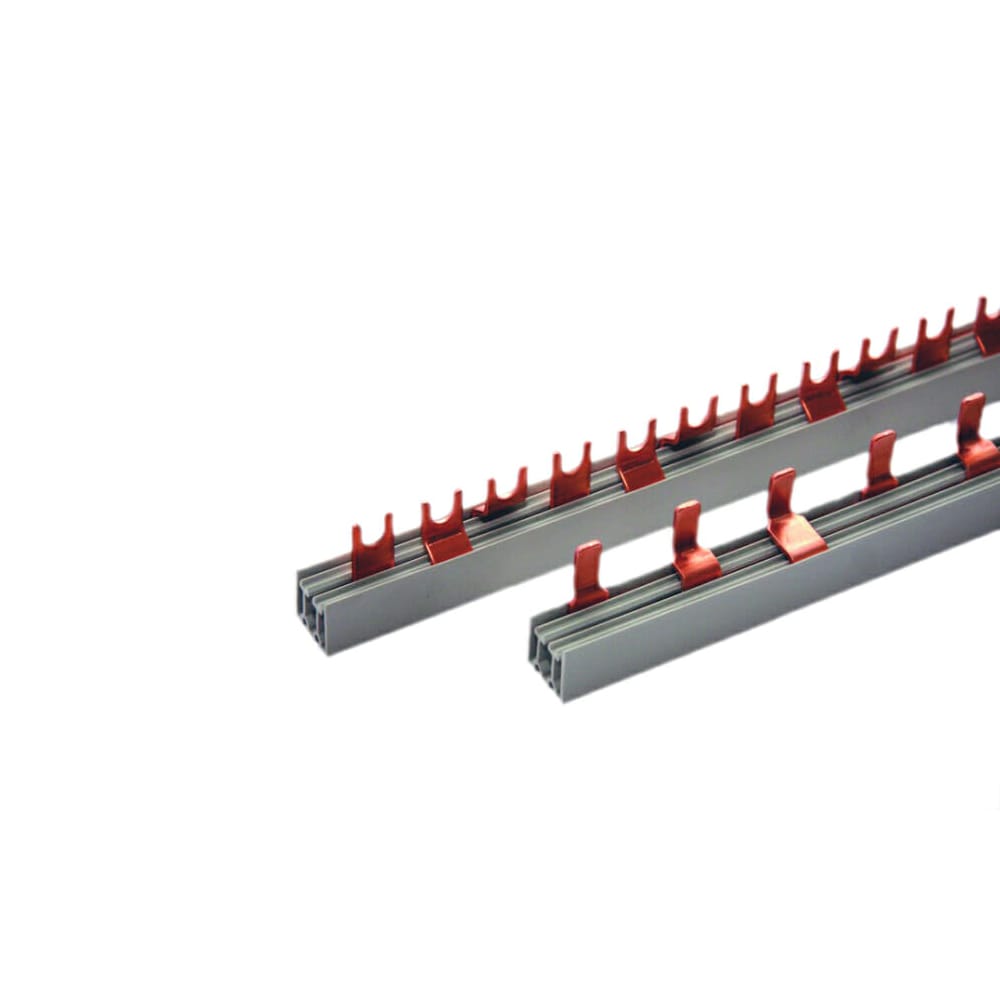

The Electrical Busbar System provides a clean and efficient way to jumper multiple poles of manual motor controllers and supplementary protectors. It reduces wiring time, saves panel space and improves the consistency of power distribution inside control cabinets.

Advantages

Up to 57 poles can be connected depending on configuration.
Helps reduce installation time by replacing repetitive jumper wiring.
Saves panel space and simplifies maintenance.
Supports high electrical ratings for compact distribution layouts.

Busbar Types

1P+N busbar	Pin type, 32A rated current, 500V AC rated insulation voltage.
1P / 2P / 3P / 4P busbar	Pin type or fork type, 63A or 125A rated current, 500V AC rated insulation voltage.
Plastic part	Flammability class 1.

Accessories

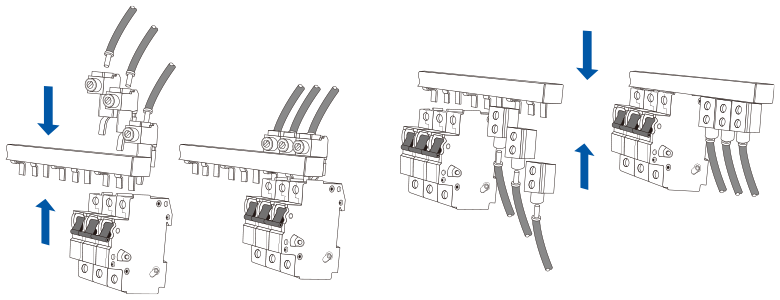

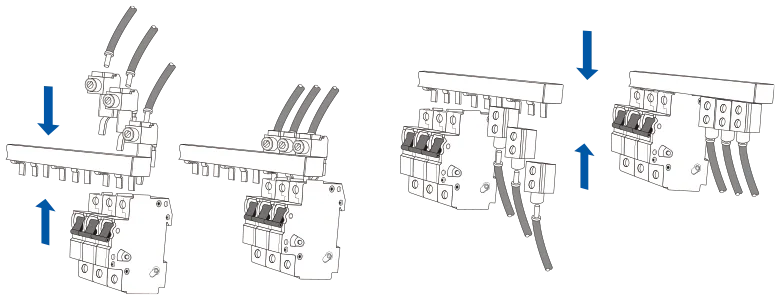

End caps insulate exposed live parts at both ends of the busbar. Terminal adaptors and power feed lugs support reliable busbar connection and incoming power wiring.

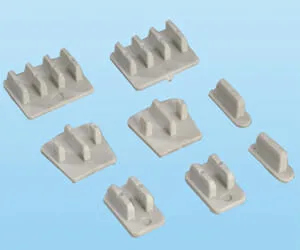

Busbar end cap
