DZ47LE Series residual current circuit breakers combine overcurrent protection with residual current protection for distribution boards and motor-protection circuits. DZ47LE-32 covers lower current ratings, while DZ47LE-63L extends the range to 40A, 50A and 63A selections.
Common Parameters
| Rated Frequency | 50Hz |
|---|
| Poles | 1P+N, 2P, 3P, 3P+N, 4P |
|---|
| Protection Type | Distribution protection, motor protection |
|---|
| Rated Residual Operating Current | 30mA, 50mA |
|---|
| Rated Short-Circuit Breaking Capacity | 6kA |
|---|
| Product Standard | GB/T 16917.1 |
|---|

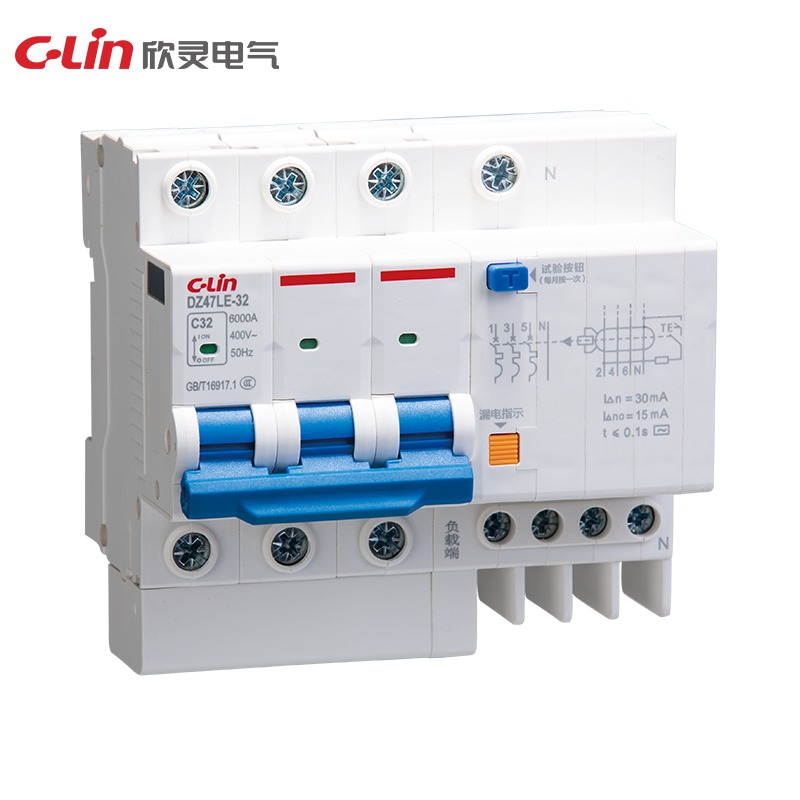

DZ47LE-32
| Rated Operating Voltage | 1P+N/2P: AC230V; 3P/3P+N/4P: AC400V |
|---|
| Rated Operating Current | 6A, 10A, 16A, 20A, 25A, 32A |
|---|
| Instantaneous Trip Type | Type C, Type D |
|---|
| Dimensions | Refer to the user manual or selection guide |
|---|

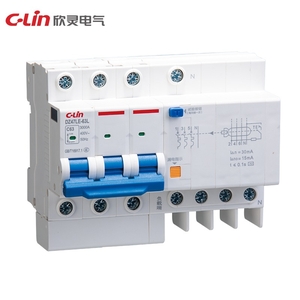

DZ47LE-63L
| Rated Operating Voltage | AC230V/400V |
|---|
| Rated Operating Current | 40A, 50A, 63A |
|---|
| Instantaneous Trip Type | Type C (5-10In), Type D (10-20In) |
|---|
| Dimensions | Refer to the user manual or selection guide |
|---|
