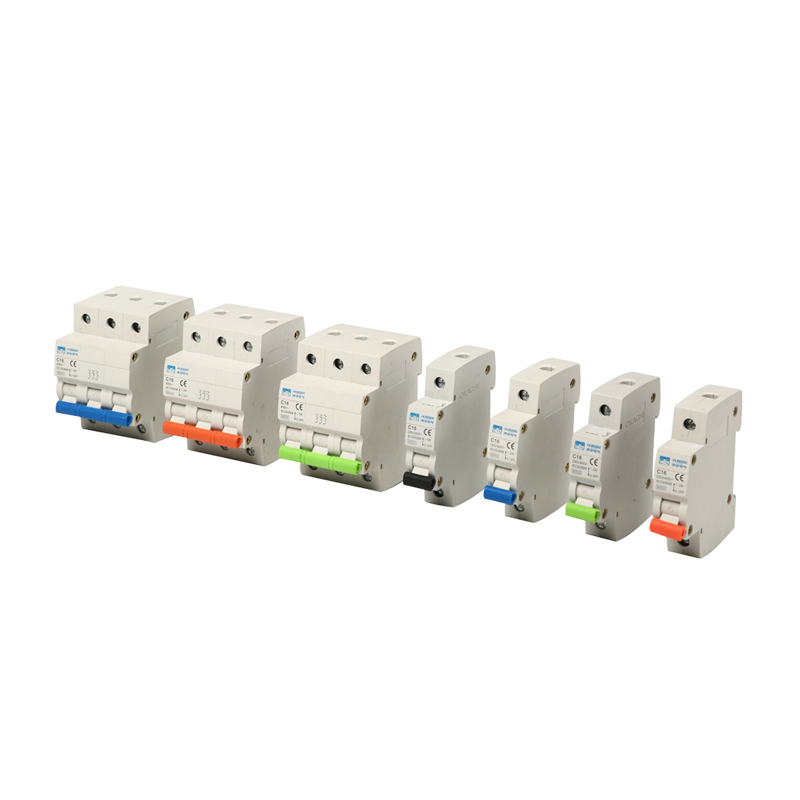

DZ47-63 Mini Circuit Breaker

The DZ47-63 Mini Circuit Breaker is used in AC 50Hz lines for overload and short-circuit protection. It is applicable to 230V single-pole circuits and 400V double-pole, three-pole and four-pole circuits, with rated current up to 63A. It can also be used for infrequent line conversion under normal conditions.

Applications

Suitable for lighting distribution systems in industrial enterprises, commercial districts, high-rise buildings and dwelling houses.

Main Technical Parameters

• Type: MCB.
• Poles: 1P, 2P, 3P and 4P.
• Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A and 63A.
• Rated voltage: 230V for 1P, 400V for 2P/3P/4P.
• Instantaneous release types: C and D.
• Conforms with IEC60898.
