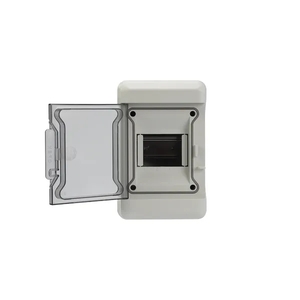

DX-HT-AT distribution boxes are surface-mounted waterproof enclosures for indoor and outdoor distribution circuits. The series includes DXAT boxes with PC construction and HT/DXHT boxes with ABS body and PC transparent cover, offering multiple way counts for circuit protection and terminal distribution.
DXAT Range
| Model | Ways | Rows | Overall dimensions | Busbar configuration |
|---|
| DXAT-4 | 4 way | Single row | 128*200*100 mm | Zero row: 3 holes; ground row: 3 holes |
| DXAT-6 | 6 way | Single row | 164*200*100 mm | Zero row: 5 holes; ground row: 5 holes |
| DXAT-9 | 9 way | Single row | 218*200*100 mm | Zero row: 5 holes; ground row: 5 holes |
| DXAT-13 | 13 way | Single row | 296*230*120 mm | Zero row: 8 holes; ground row: 8 holes |
| DXAT-15 | 15 way | Single row | 332*230*120 mm | Zero row: 8 holes; ground row: 8 holes |
| DXAT-18 | 18 way | Single row | 380*230*120 mm | Zero row: 8 holes; ground row: 8 holes |
| DXAT-26 | 26 way | Double row | 296*390*130 mm | Two 8-hole zero rows; two 8-hole ground rows |
| DXAT-39 | 39 way | Three rows | 296*550*130 mm | Two 8-hole zero rows; two 8-hole ground rows |

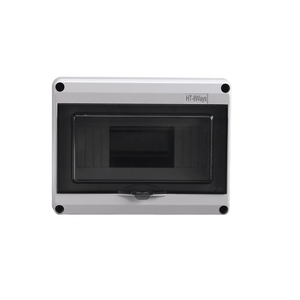

HT and DXHT Range
| Model | Ways | Overall dimensions |
|---|
| CHA-HT 5WAYS / DXHT-5 | 5 way | 115*150*90 mm / 129*170*95 mm |
| CHA-HT 8WAYS / DXHT-8 | 8 way | 197*150*90 mm / 183*170*95 mm |
| CHA-HT 12WAYS / DXHT-12 | 12 way | 250*193*105 mm / 255*200*105 mm |
| CHA-HT 15WAYS / DXHT-15 | 15 way | 305*195*105 mm / 309*200*105 mm |
| CHA-HT 18WAYS / DXHT-18 | 18 way | 360*198*110 mm / 363*200*110 mm |
| CHA-HT 24WAYS | 24 way | 270*350*105 mm |
Application Notes
- DXAT versions use PC material for the bottom shell, frame and transparent cover.
- HT versions use ABS for the bottom shell and surface frame with a PC transparent cover.
- The boxes are intended for waterproof, dustproof and corrosion-resistant installation environments.
