DUNGS LGW and GW pressure switches group differential and compact pressure-switch families for burner air and gas supervision. The LGW A2 and A4 ranges focus on differential pressure control, while GW A5 and A6 compact switches provide selectable mbar ranges with switching-difference data for service comparison.
| Model | Article No. | Setting range (mbar) | Setting tolerance | Switching difference (mbar) |
|---|---|---|---|---|
| LGW 3 A4 | - | 0.4-3 | ±15% | ≤0.3 |
| LGW 10 A4 | - | 1-10 | ±15% | ≤0.5 |
| LGW 50 A4 | - | 2.5-50 | ±15% | ≤1.5 |
| LGW 150 A4 | - | 30-150 | ±15% | ≤5 |
| Model | Article No. | Setting range (mbar) | Setting tolerance | Switching difference (mbar) |
|---|---|---|---|---|
| LGW 3 A2 | 241 23 061 | 0.4-3 | ±0.1 / ±15% | ≤0.3 |
| LGW 10 A2 | 241 23 062 | 1-10 | ±0.2 / ±15% | ≤0.5 |
| LGW 50 A2 | 241 23 063 | 2.5-50 | ±0.75 / ±15% | ≤1 |
| LGW 150 A2 | 241 23 521 | 30-150 | - / ±15% | ≤3 |
| LGW 3 A2P | 241 23 536 | 0.4-3 | ±0.1 / ±15% | ≤0.3 |
| LGW 10 A2P | 241 23 240 | 1-10 | ±0.2 / ±15% | ≤0.5 |
| LGW 50 A2P | 241 23 064 | 2.5-50 | ±0.75 / ±15% | ≤1 |
| LGW 150 A2P | 241 23 065 | 30-150 | - / ±15% | ≤3 |
| Model | Article No. | Setting range (mbar) | Setting tolerance max | Switching diff p↓ min (mbar) | Switching diff p↓ max (mbar) |
|---|---|---|---|---|---|
| GW 3 A5 | 241 23 003 | 1-3 | ±15% | ≤0.7 | ≤0.8 |
| GW 10 A5 | 241 23 004 | 2-10 | ±15% | ≤1.3 | ≤1.5 |
| GW 50 A5 | 241 23 005 | 5-50 | ±15% | ≤2.5 | ≤3 |
| GW 150 A5 | 241 23 006 | 5-150 | ±15% | ≤5 | ≤10 |
| GW 500 A5 | 241 23 007 | 100-500 | ±15% | ≤18 | ≤25 |
| GW 10 A5/1 | 241 23 526 | 2-10 | ±15% | ≤1.3 | ≤1.5 |
| GW 50 A5/1 | 241 23 090 | 5-50 | ±15% | ≤2.5 | ≤3 |
| GW 150 A5/1 | 241 23 514 | 5-150 | ±15% | ≤5 | ≤10 |
| GW 500 A5/1 | 241 23 527 | 100-500 | ±15% | ≤18 | ≤25 |
| Model | Article No. | Setting range (mbar) | Setting tolerance max | Switching diff p↓ min (mbar) | Switching diff p↓ max (mbar) |
|---|---|---|---|---|---|
| GW 3 A6 | 241 23 085 | 1-3 | ±15% | ≤0.7 | ≤0.8 |
| GW 10 A6 | 241 23 009 | 2-10 | ±15% | ≤1.3 | ≤1.5 |
| GW 50 A6 | 241 23 019 | 5-50 | ±15% | ≤2.5 | ≤3 |
| GW 150 A6 | 241 23 050 | 5-150 | ±15% | ≤5 | ≤10 |
| GW 500 A6 | 241 23 051 | 100-500 | ±15% | ≤18 | ≤25 |
| GW 50 A6/1 | 241 23 515 | 5-50 | ±15% | ≤2.5 | ≤3 |
| GW 150 A6/1 | 241 23 515 | 5-150 | ±15% | ≤5 | ≤10 |
| GW 500 A6/1 | 241 23 525 | 100-500 | ±15% | ≤18 | ≤25 |

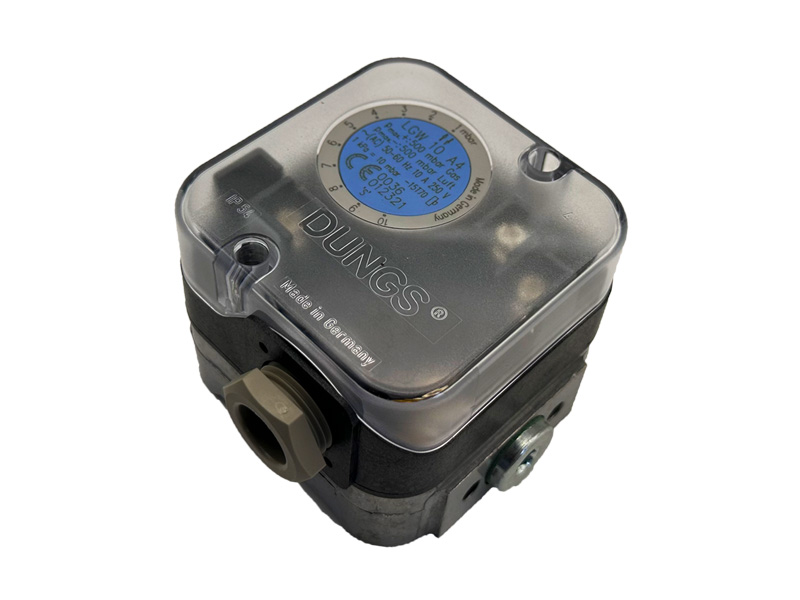

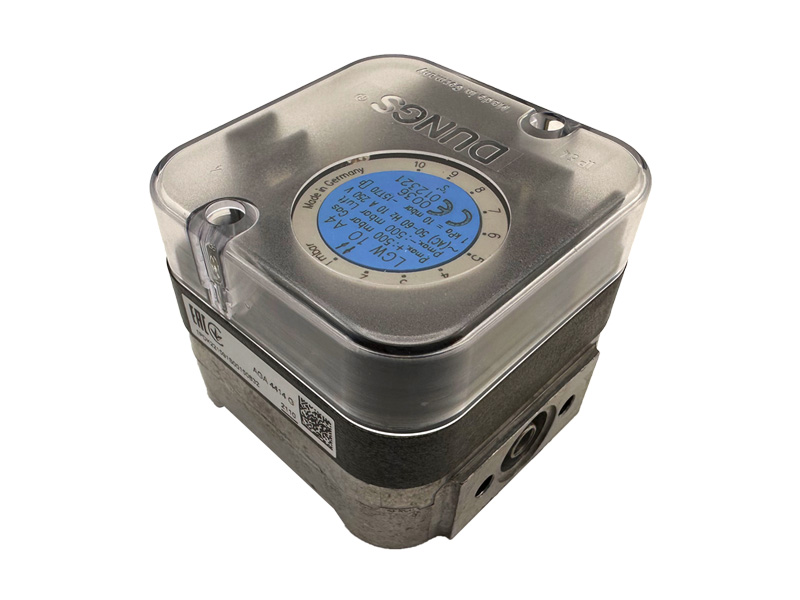

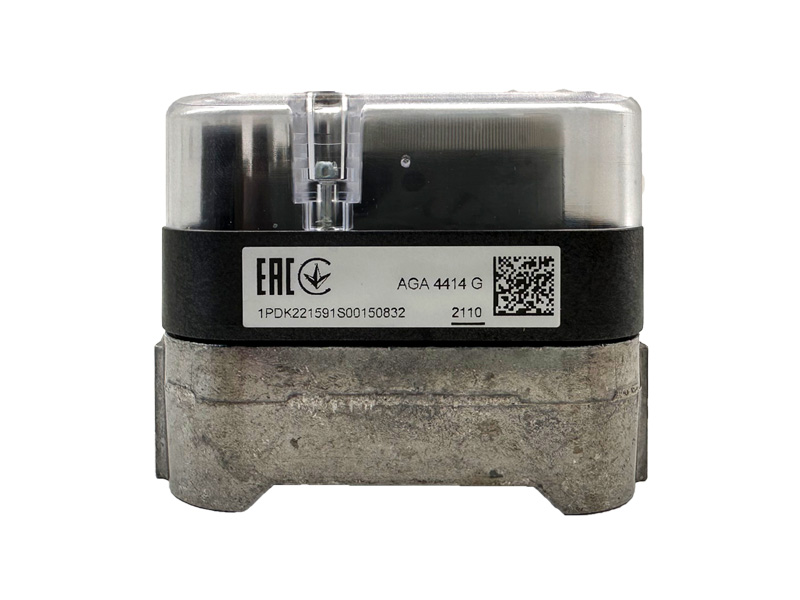

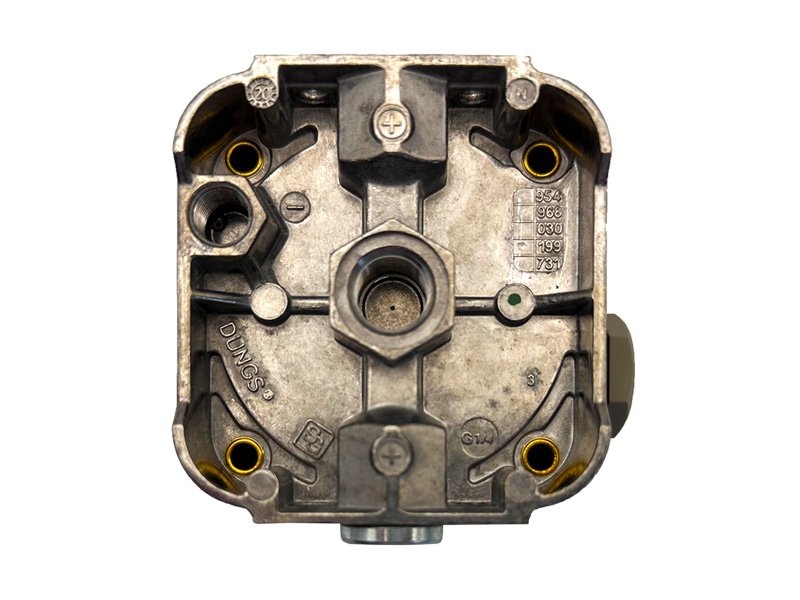

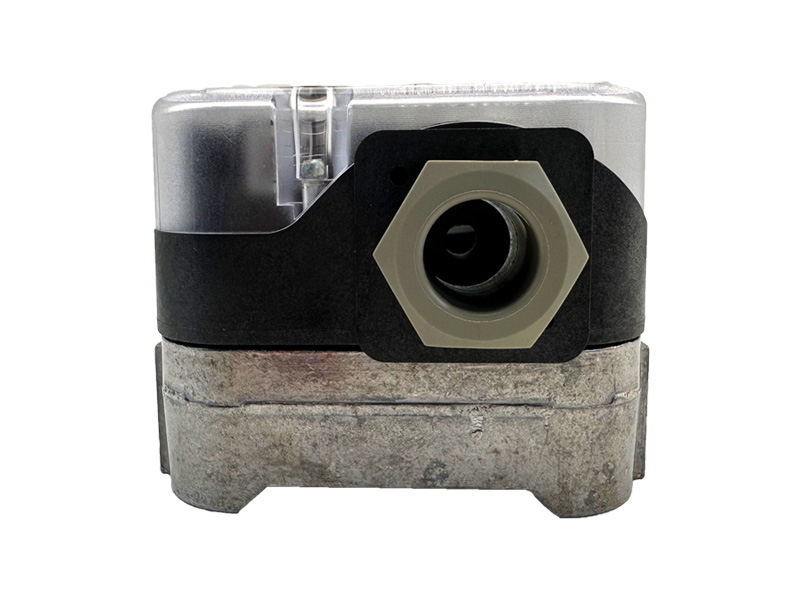

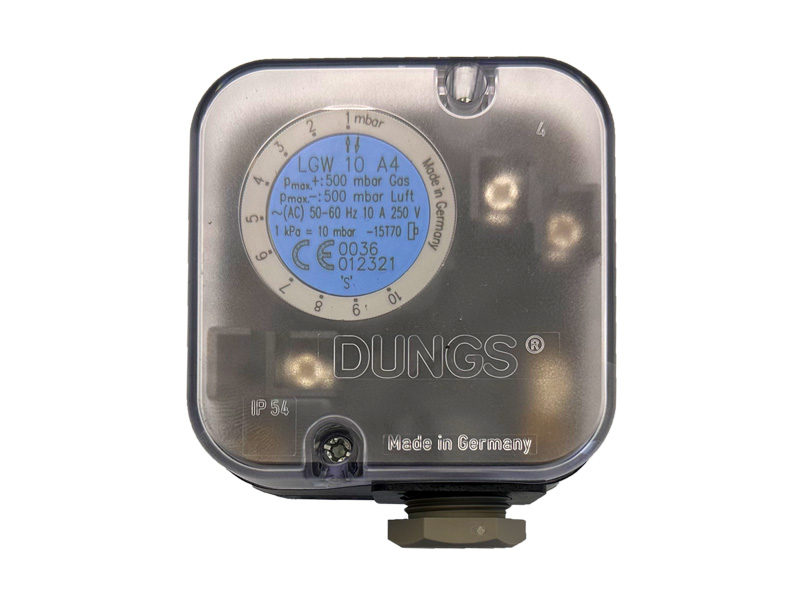

DUNGS LGWA4 Pressure Switch

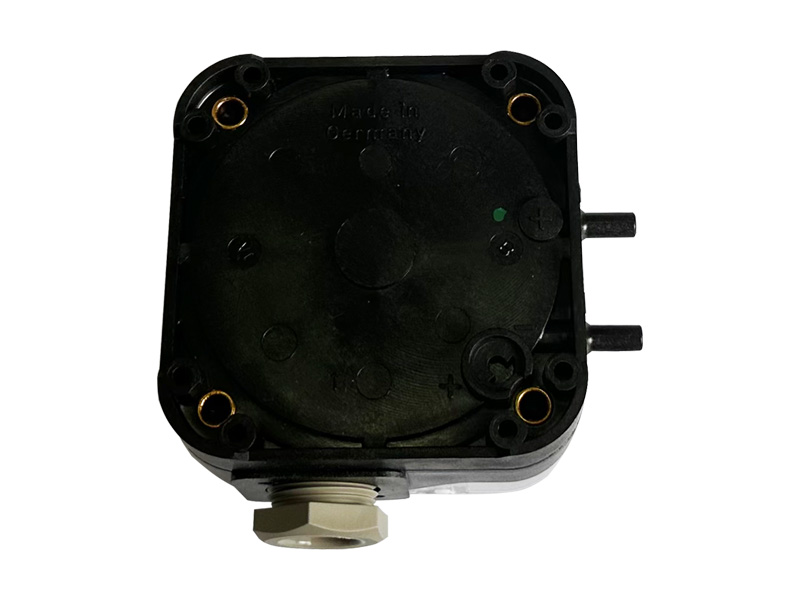

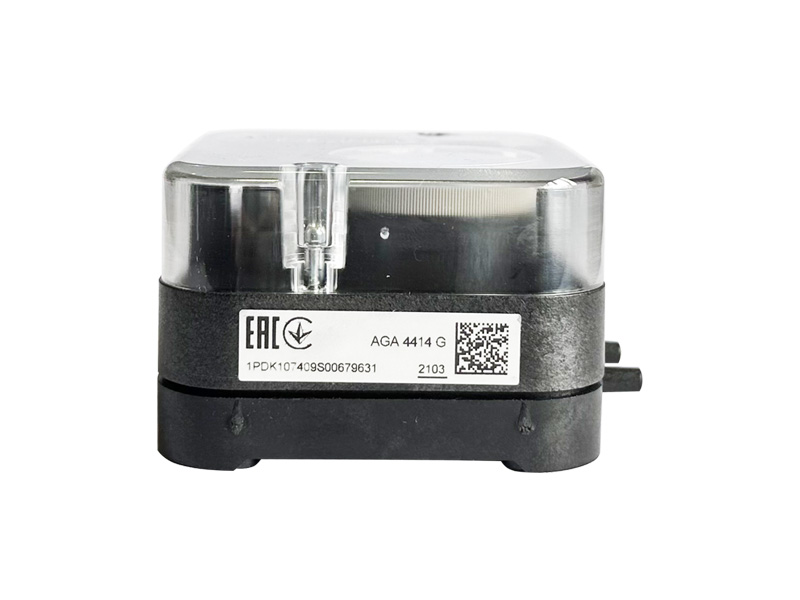

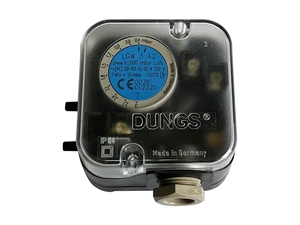

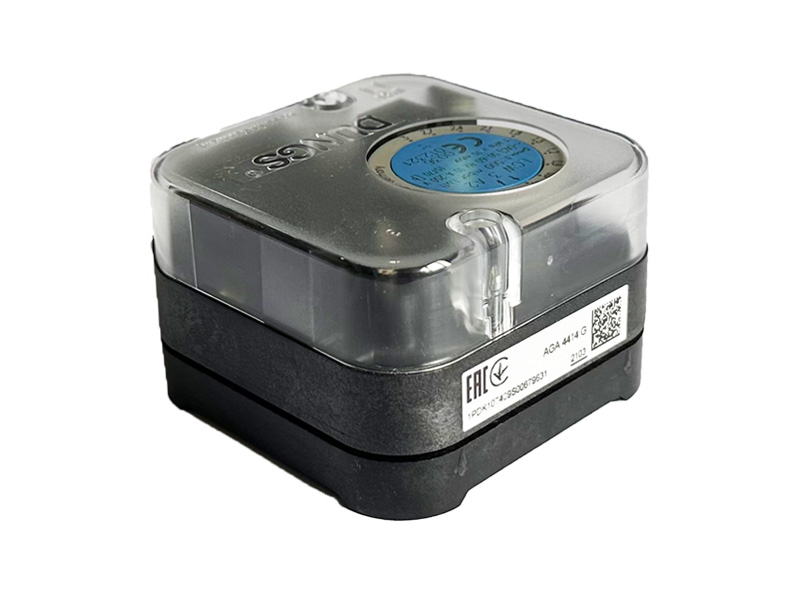

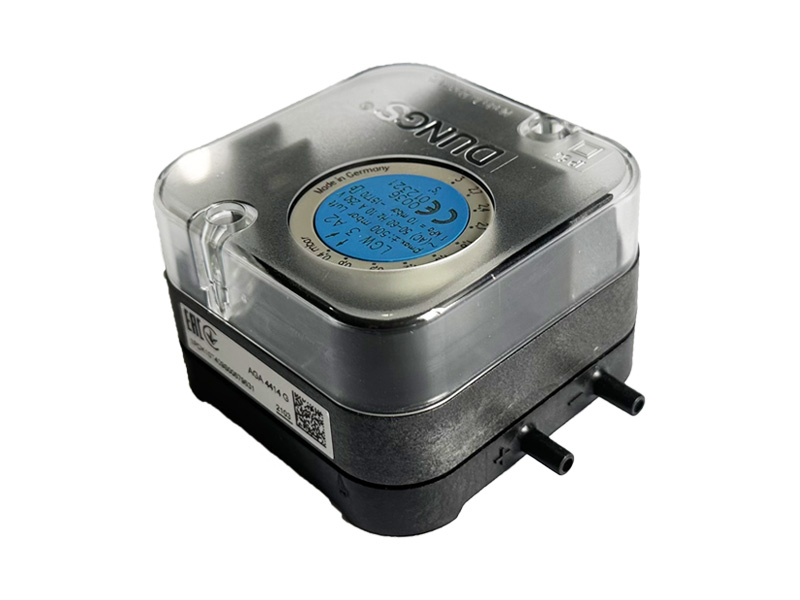

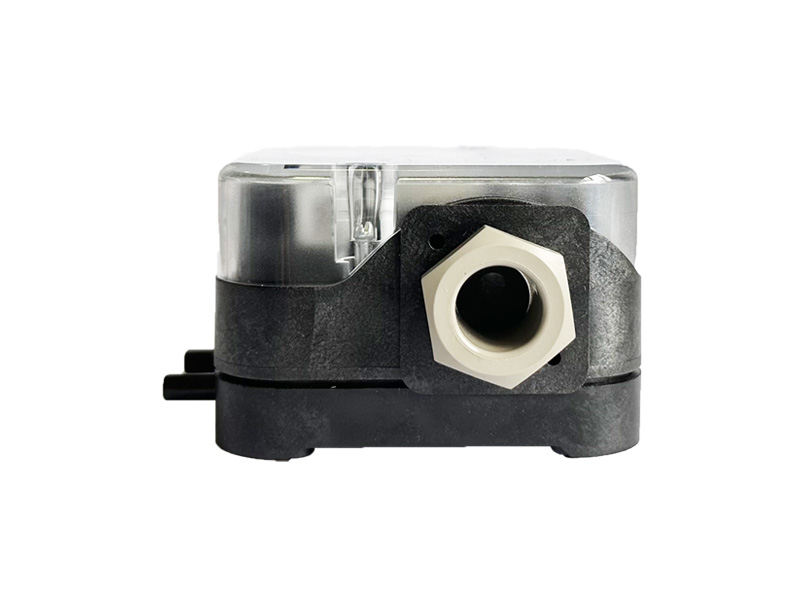

DUNGS LGWA2 Pressure Switch

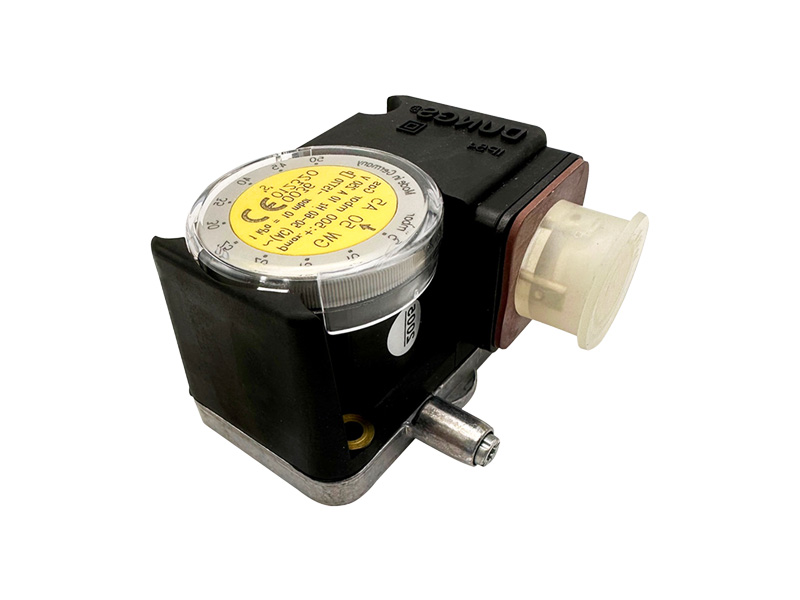

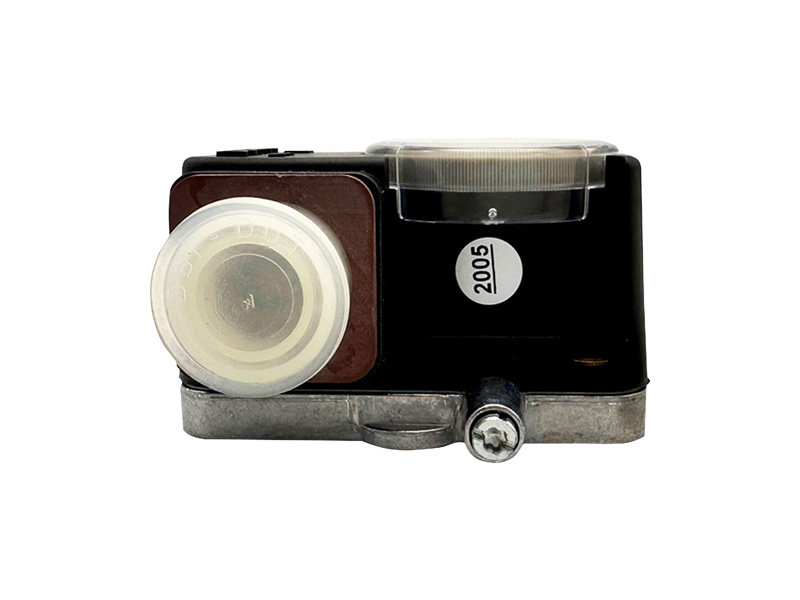

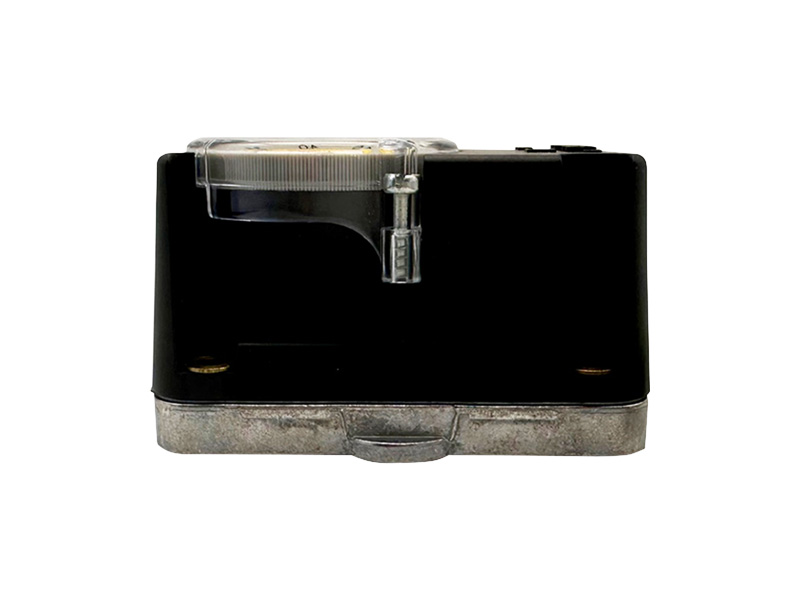

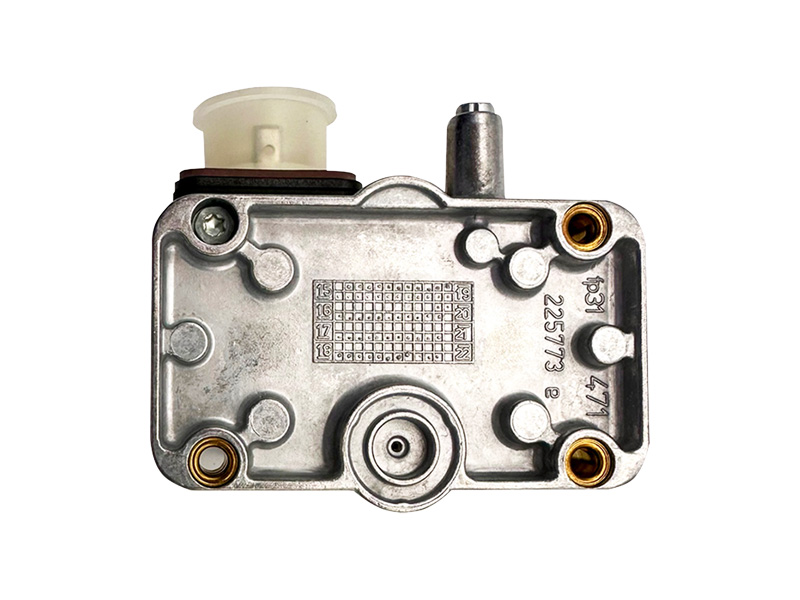

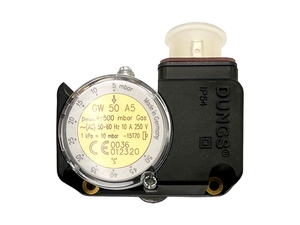

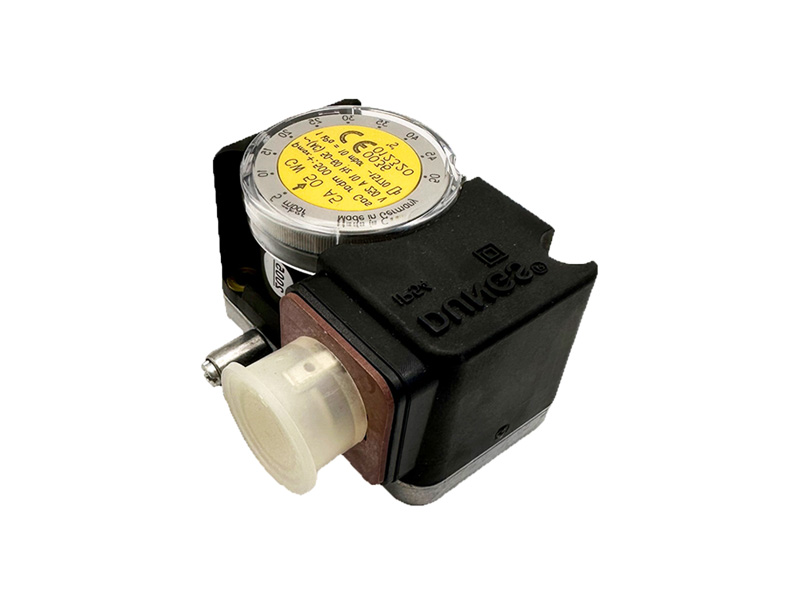

DUNGS GWA5 Pressure Switch

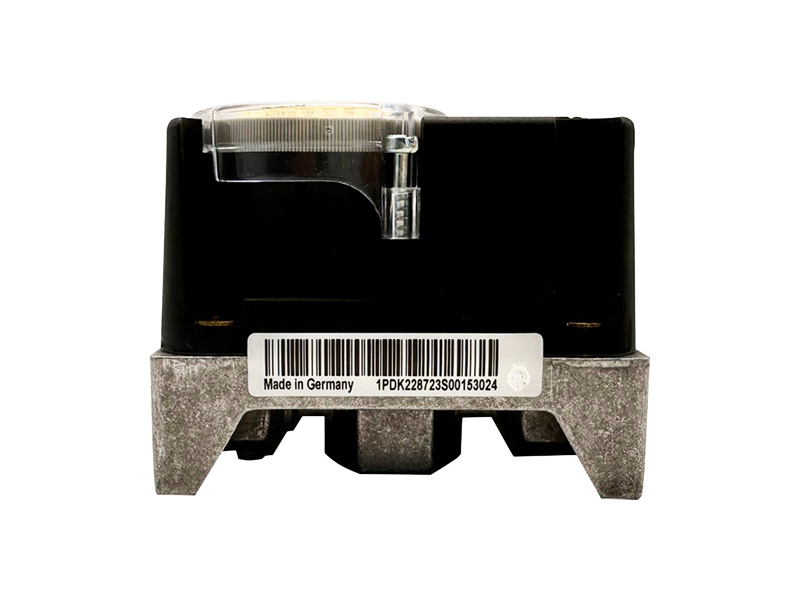

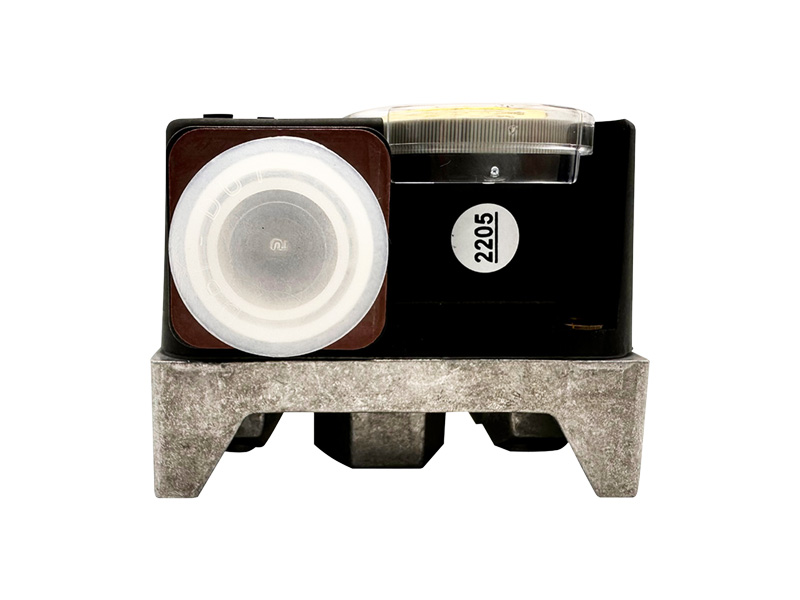

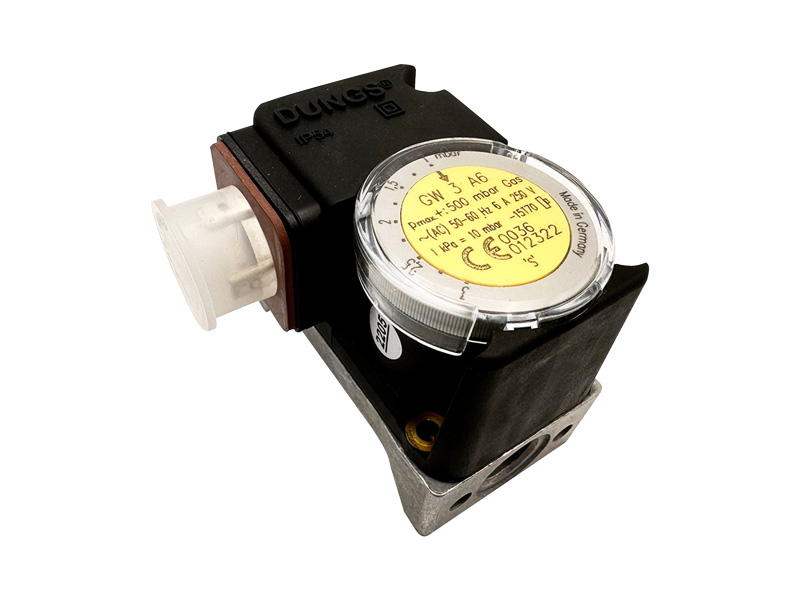

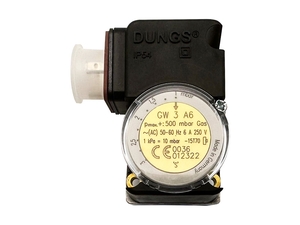

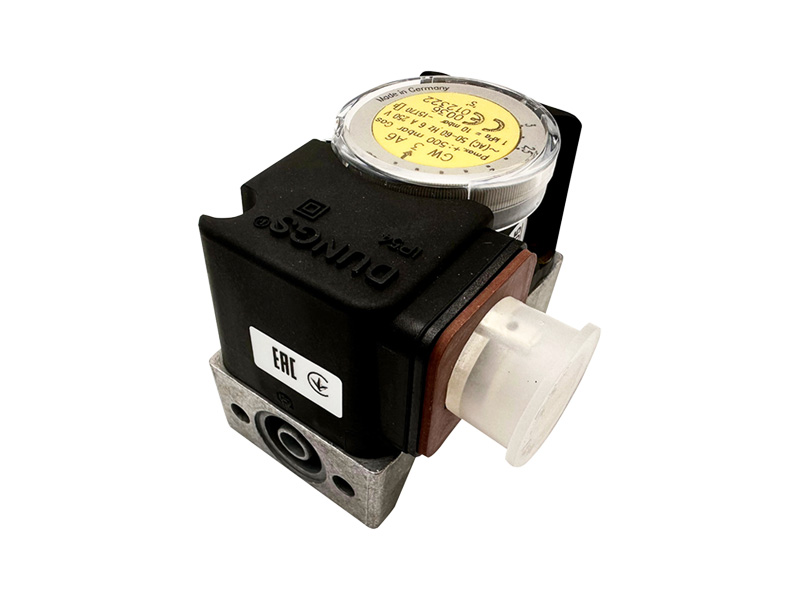

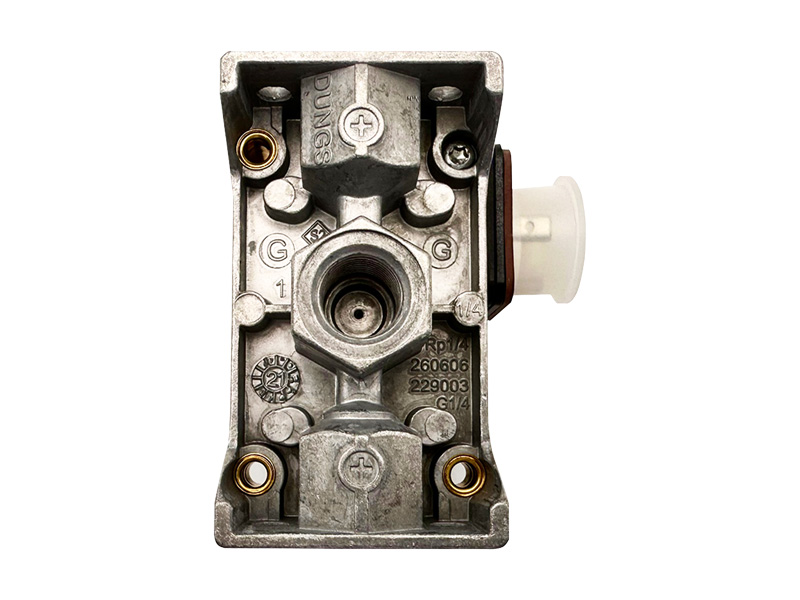

DUNGS GWA6 Pressure Switch
