DUNGS Gas Valve Train

DUNGS MB-ZRDLE 405-412 Series
DUNGS MB-DLE 405-412 Series
DUNGS DMV-D512-520 11 Series
DUNGS MVD 205-220 5 Series
DUNGS MVDLE205-220 5 Series

Description

DUNGS gas train components in this group cover multibloc gas valve assemblies, double solenoid valve blocks, fast-opening safety shut-off valves, and slow-opening valve variants for burner gas trains. The tables keep each model family separate so article numbers, pressure ratings, thread sizes, solenoid data, opening time, power, current, and weight can be compared without mixing product types.

DUNGS MB-ZRDLE 405-412 Series

Type Article No. DN/Rp Weight (kg)
MB-ZRDLE405 B01 S20 221 25 090 Rp1/2 3.3
MB-ZRDLE405 B01 S22 221 25 096
MB-ZRDLE405 B01 S50 221 25 100
MB-ZRDLE407 B01 S20 221 25 091 Rp3/4 3.4
MB-ZRDLE407 B01 S22 221 25 097
MB-ZRDLE407 B01 S50 221 25 101
MB-ZRDLE410 B01 S20 221 25 092 Rp1 6.3
MB-ZRDLE410 B01 S22 221 25 098
MB-ZRDLE410 B01 S50 221 25 102
MB-ZRDLE412 B01 S20 221 25 093 Rp1 1/4 6.4
MB-ZRDLE412 B01 S22 221 25 099
MB-ZRDLE412 B01 S50 221 25 103

DUNGS MB-DLE 405-412 Series

Type Article No. DN/Rp Weight (kg)
MB-DLE405 B01 S20 221 25 071 Rp1/2 2.5
MB-DLE405 B01 S50 221 25 081
MB-DLE407 B01 S20 221 25 072 Rp3/4 2.6
MB-DLE407 B01 S50 221 25 082
MB-DLE410 B01 S20 221 25 073 Rp1 4.9
MB-DLE410 B01 S50 221 25 083
MB-DLE412 B01 S20 221 25 074 Rp1-1/4 5.0
MB-DLE412 B01 S22 222 25 004
MB-DLE412 B01 S50 221 25 084

DUNGS DMV-D512-520 11 Series

Type Article No. Pmax (bar) DN/Rp Solenoid No. Power (W) Weight (kg)
DMV-D512/11 221 25 042 0.5 Rp1-Rp2 1211 65 4.6
DMV-D520/11 221 25 043 90 5.6

DUNGS MVD 205-220 5 Series

Type Article No. Pmax (mbar) DN/Rp Solenoid No. Power (W) Current A (230 V) Opening Time Weight (kg)
MVD205 221 25 029 360 Rp1/2 100 15 0.08 < 1 s 1.10
MVD207 221 25 030 Rp3/4 200 25 0.15 2.55
MVD210 221 25 031 Rp1 2.75
MVD215 221 25 032 200 Rp1 1/2 280 60 0.26 4.40
MVD220 221 25 033 Rp2 300 0.30 6.20

DUNGS MVDLE205-220 5 Series

Type Article No. Pmax (mbar) DN/Rp Solenoid No. Power (W) Current A (230 V) Opening Time Weight (kg)
MVDLE205 221 25 017 360 Rp1/2 100 15 0.08 ca.20s 1.10
MVDLE207 221 25 018 Rp3/4 200 25 0.15 2.55
MVDLE210 221 25 019 Rp1 2.75
MVDLE215 221 25 020 200 Rp1 1/2 280 60 0.26 4.40
MVDLE220 221 25 021 Rp2 300 0.30 6.20

Product Detail Images

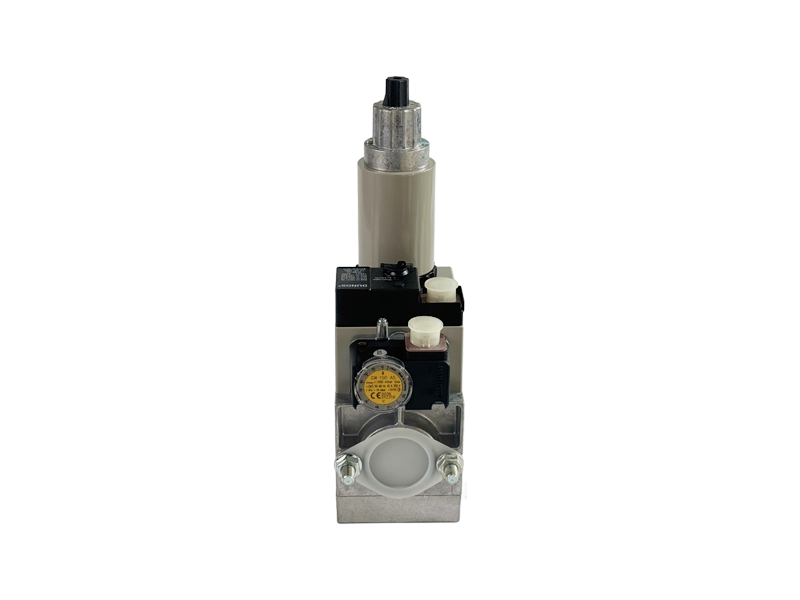

DUNGS MB-ZRDLE 405-412 Series

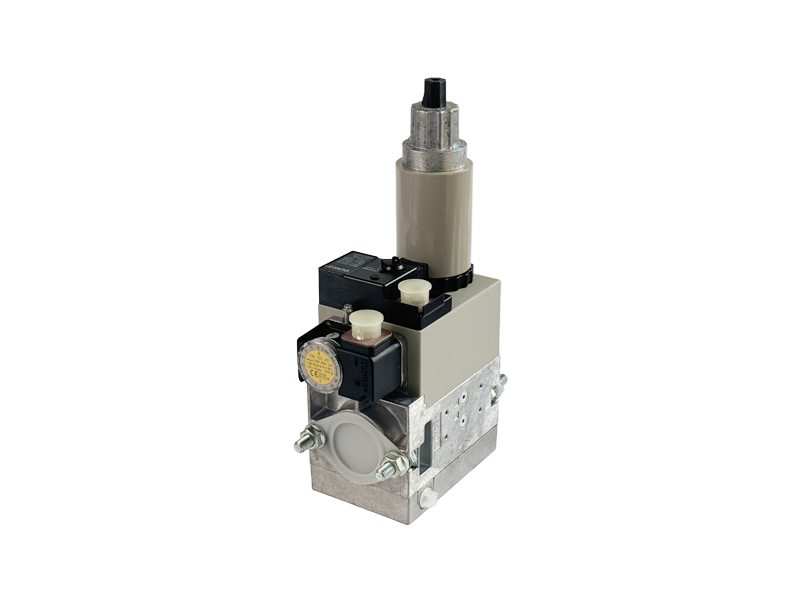

DUNGS MB-ZRDLE 405-412 Series detail view 2
Gas multibloc assembly with valve body and connection flange.

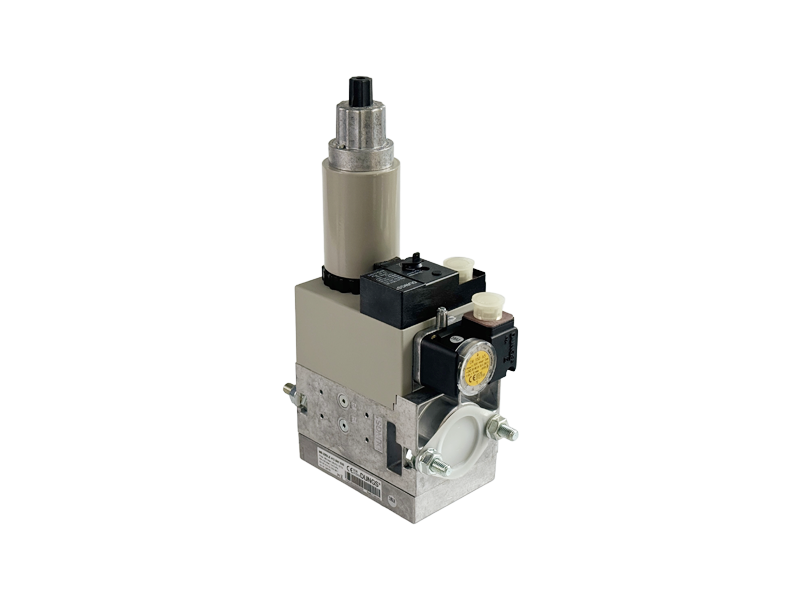

DUNGS MB-ZRDLE 405-412 Series detail view 3
Gas multibloc assembly viewed from the opposite side.

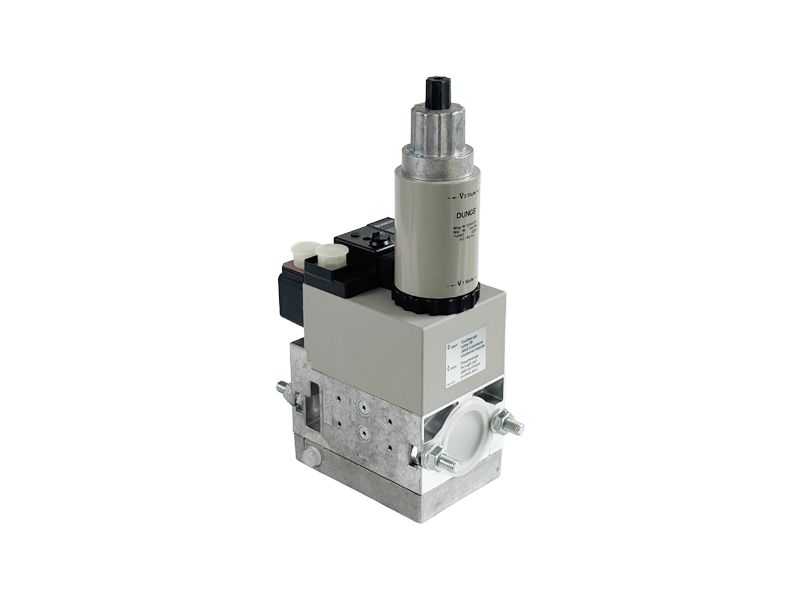

DUNGS MB-ZRDLE 405-412 Series detail view 4
Gas multibloc rear housing and flange layout.

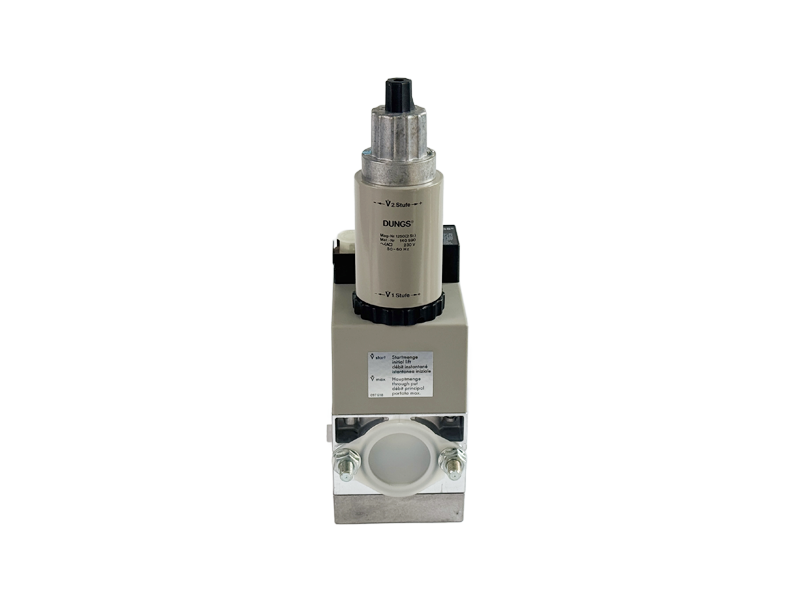

DUNGS MB-ZRDLE 405-412 Series detail view 5
Gas multibloc connection face.

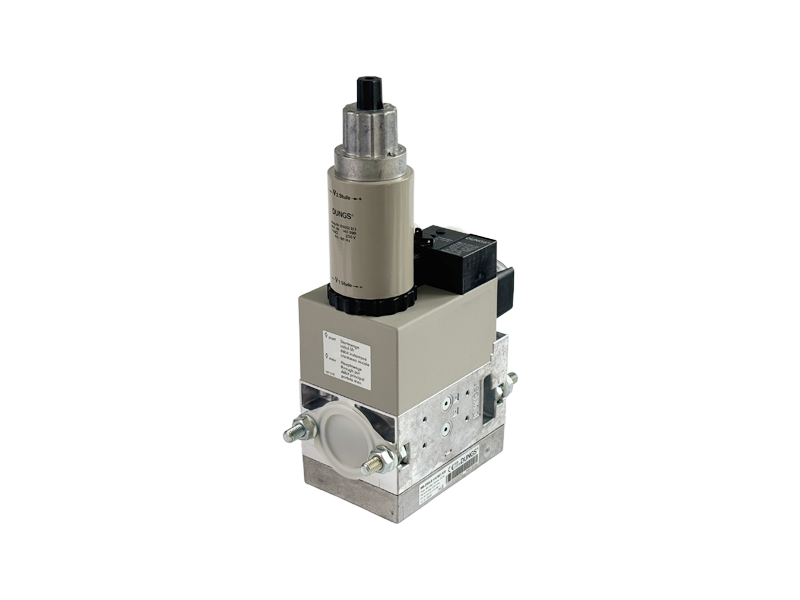

DUNGS MB-ZRDLE 405-412 Series detail view 6
Gas multibloc housing and side connection layout.

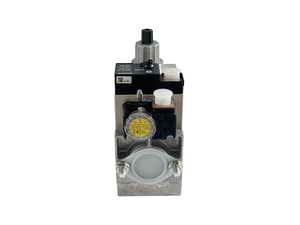

DUNGS MB-DLE 405-412 Series

DUNGS MB-DLE 405-412 Series detail view 2

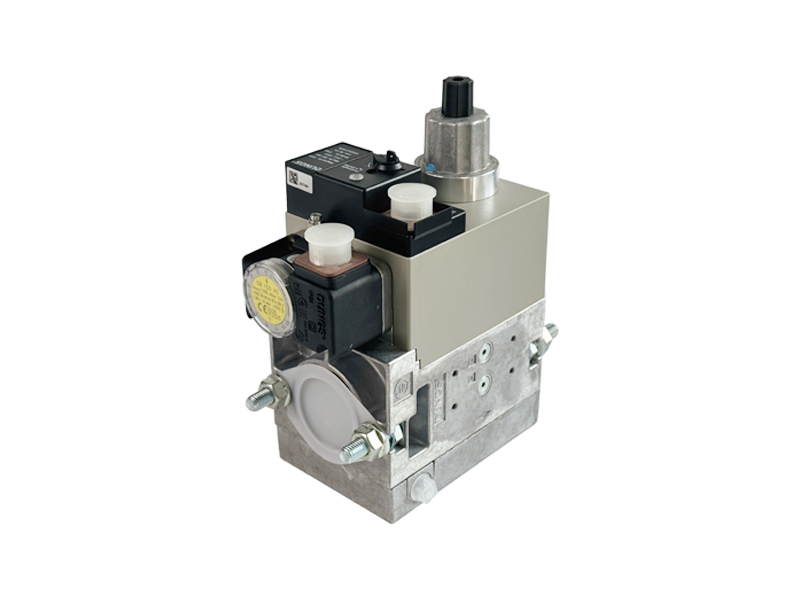

Gas multibloc valve body and connection flange.
DUNGS MB-DLE 405-412 Series detail view 3

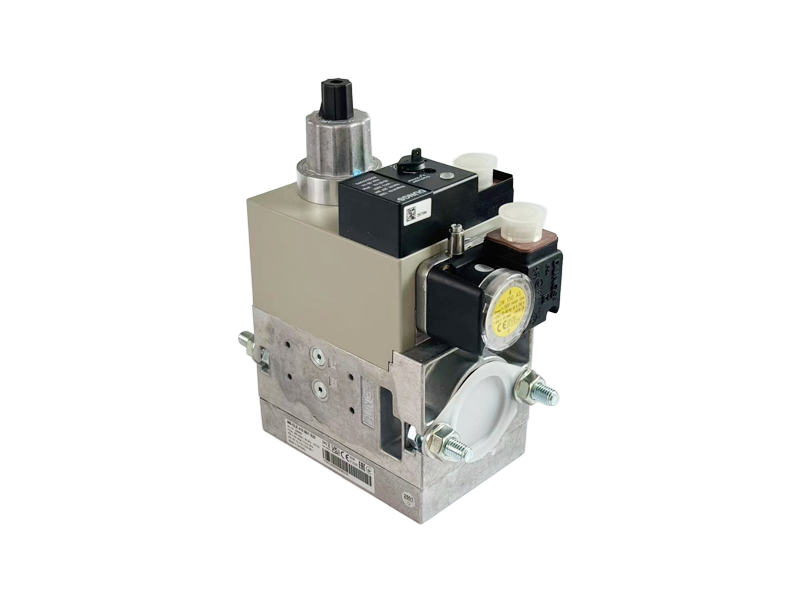

Gas multibloc assembly viewed from the opposite side.

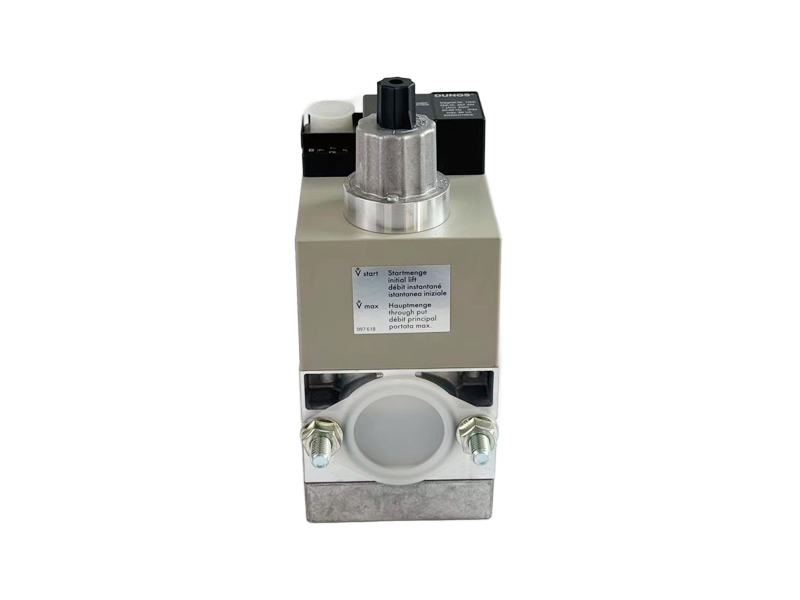

DUNGS MB-DLE 405-412 Series detail view 4
Gas multibloc connection face and identification label.

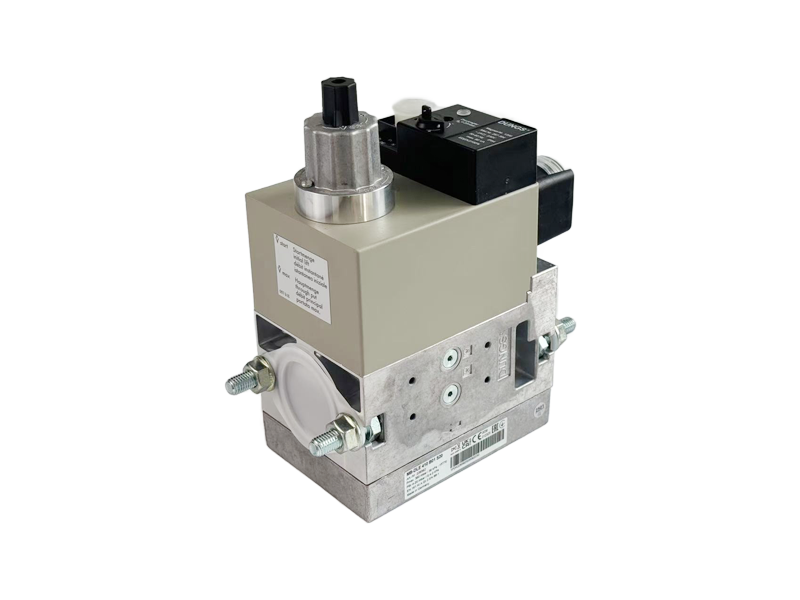

DUNGS MB-DLE 405-412 Series detail view 5
Gas multibloc housing and side connection layout.

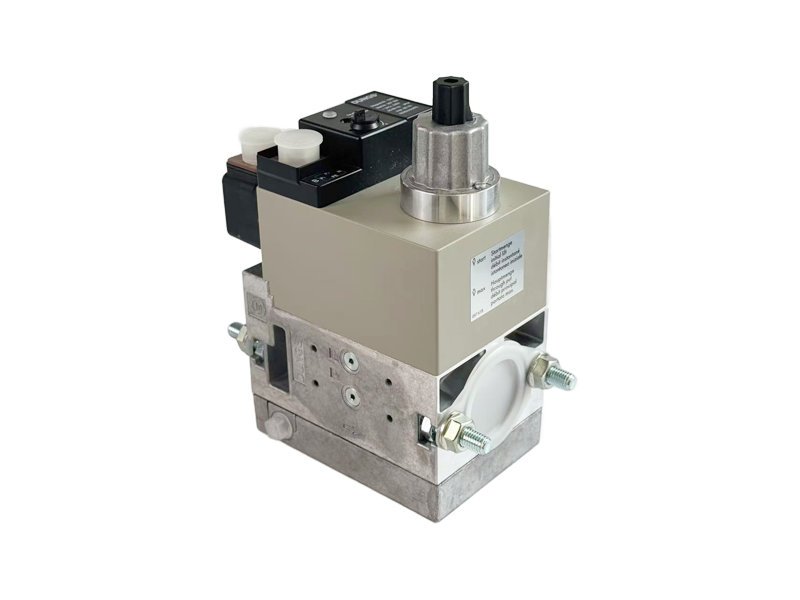

DUNGS MB-DLE 405-412 Series detail view 6
Gas multibloc rear housing and flange layout.

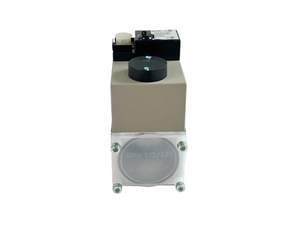

DUNGS DMV-D512-520 11 Series

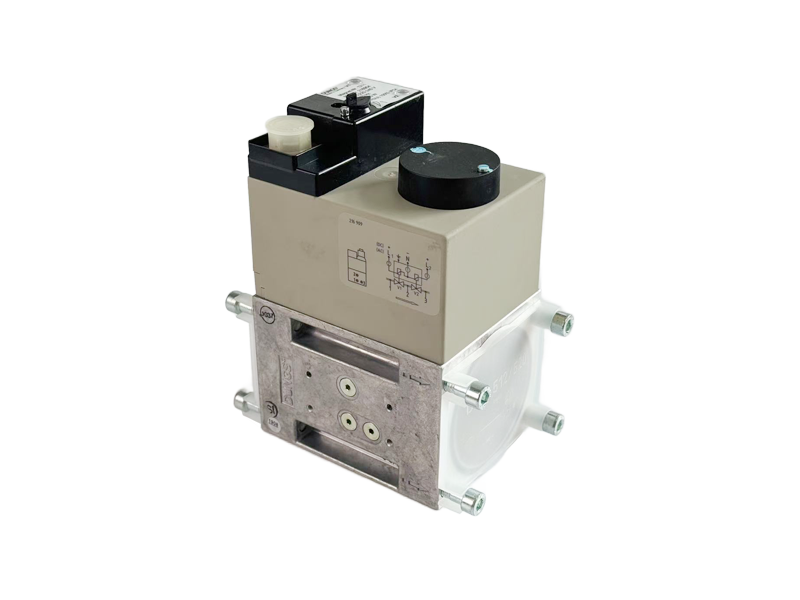

DUNGS DMV-D512-520 11 Series detail view 2
Double-valve block housing and connection flange.

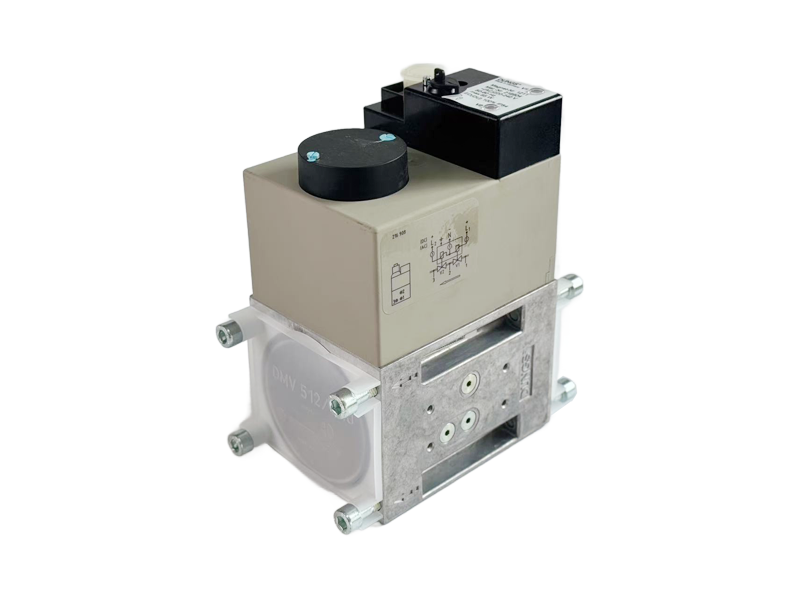

DUNGS DMV-D512-520 11 Series detail view 3
Double-valve block viewed from the opposite side.

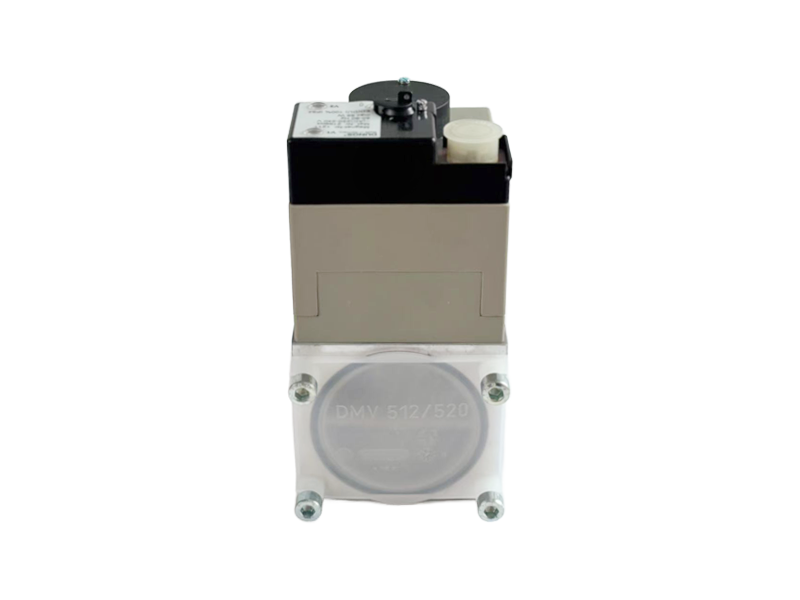

DUNGS DMV-D512-520 11 Series detail view 4
Double-valve block connection face.

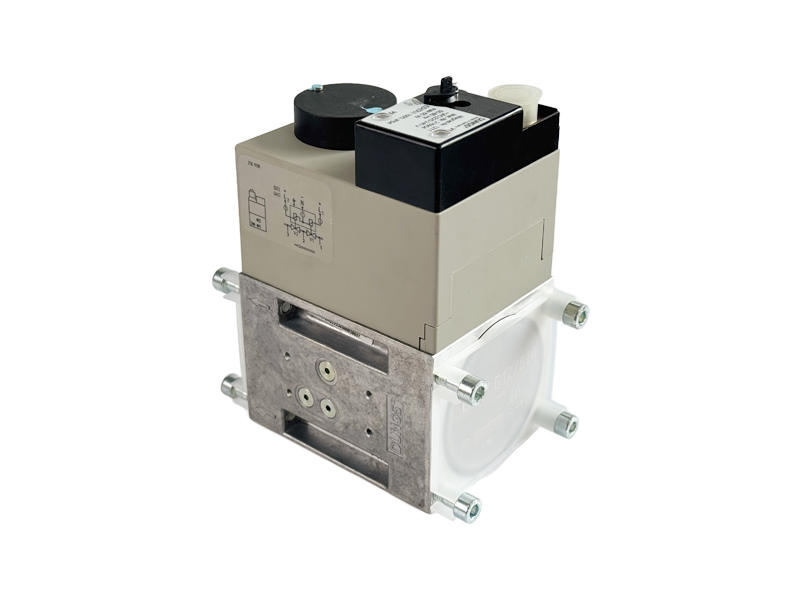

DUNGS DMV-D512-520 11 Series detail view 5
Double-valve block side housing and printed connection identification.

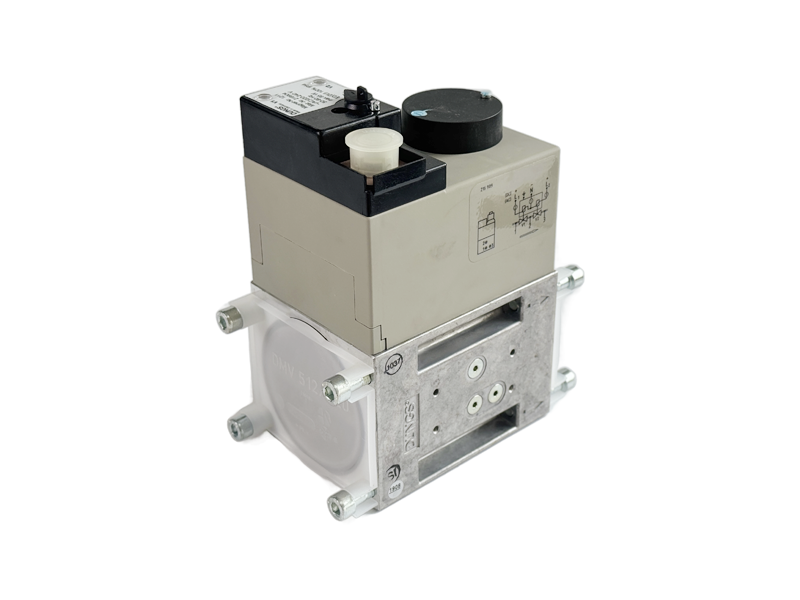

DUNGS DMV-D512-520 11 Series detail view 6
Double-valve block housing and flange arrangement.

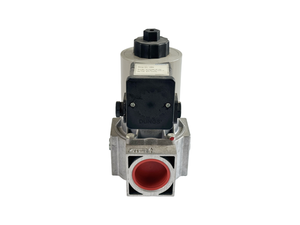

DUNGS MVD 205-220 5 Series

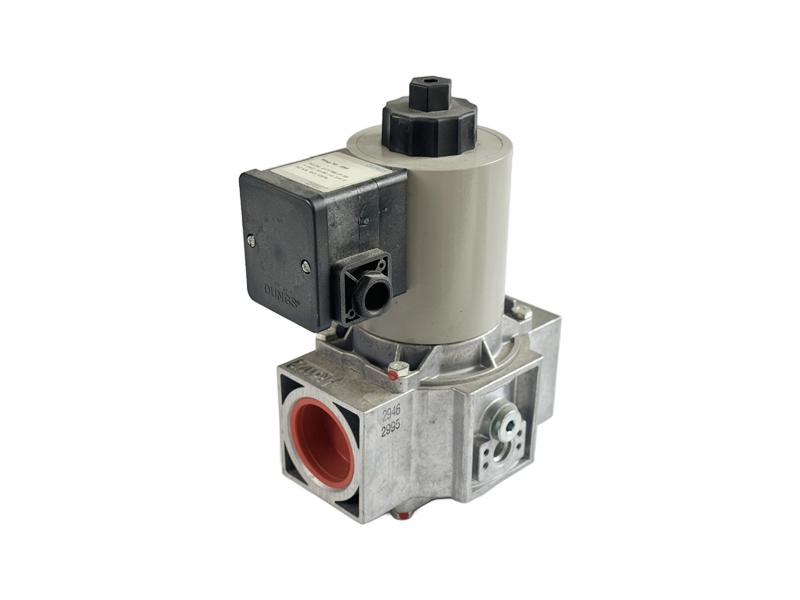

DUNGS MVD 205-220 5 Series detail view 2
Solenoid valve body with coil housing and protected port.

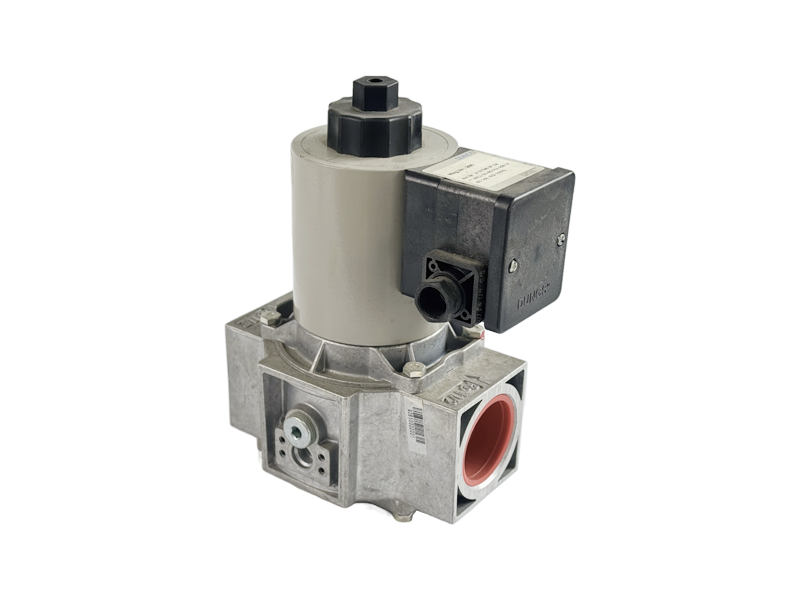

DUNGS MVD 205-220 5 Series detail view 3
Solenoid valve viewed from the opposite side.

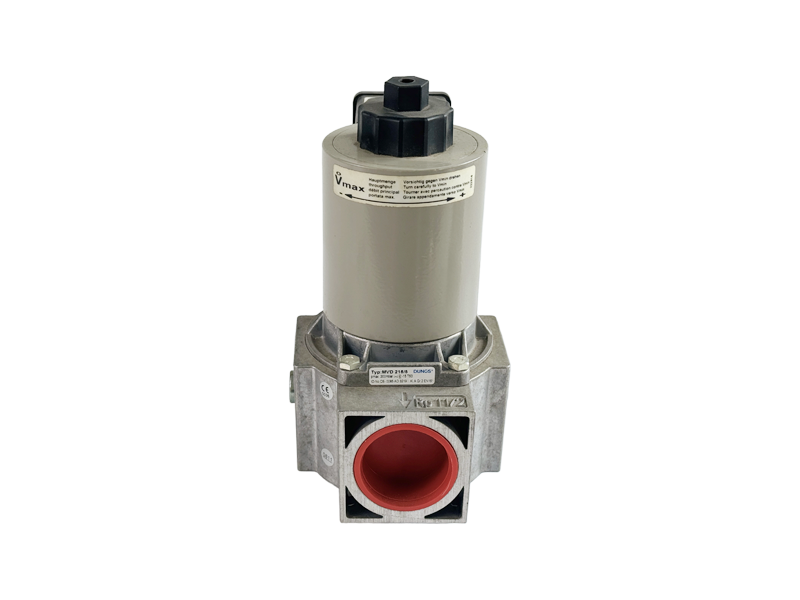

DUNGS MVD 205-220 5 Series detail view 4
Solenoid valve connection face.
DUNGS MVD 205-220 5 Series detail view 5

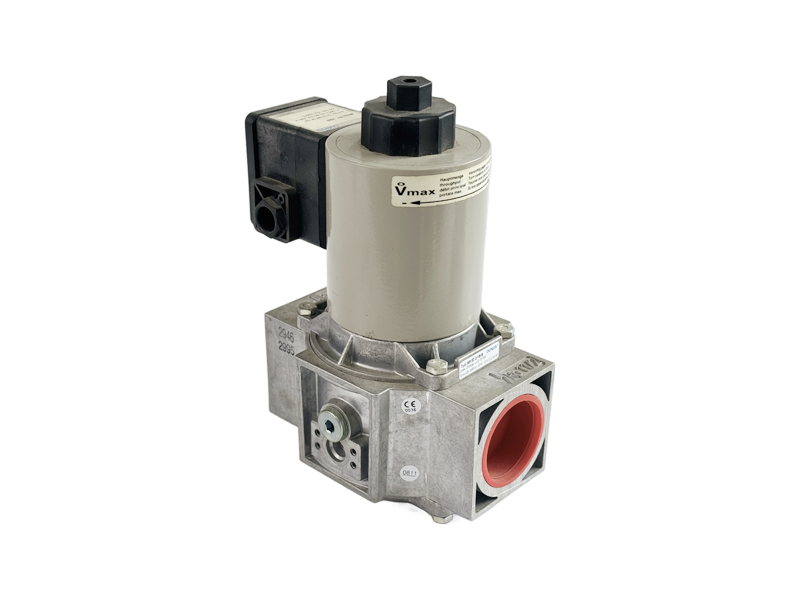

Solenoid valve side port and electrical housing.
DUNGS MVD 205-220 5 Series detail view 6

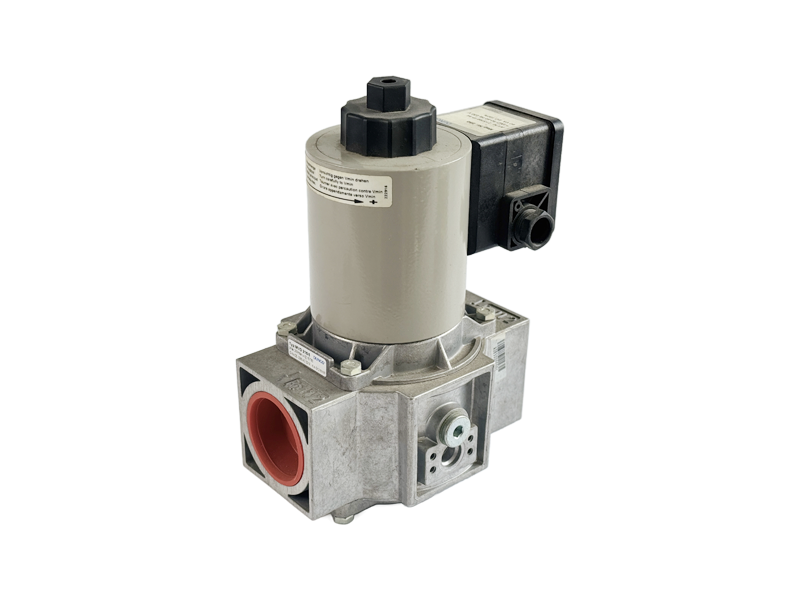

Solenoid valve housing and connection layout.

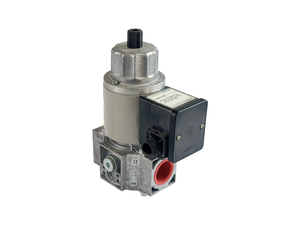

DUNGS MVDLE205-220 5 Series

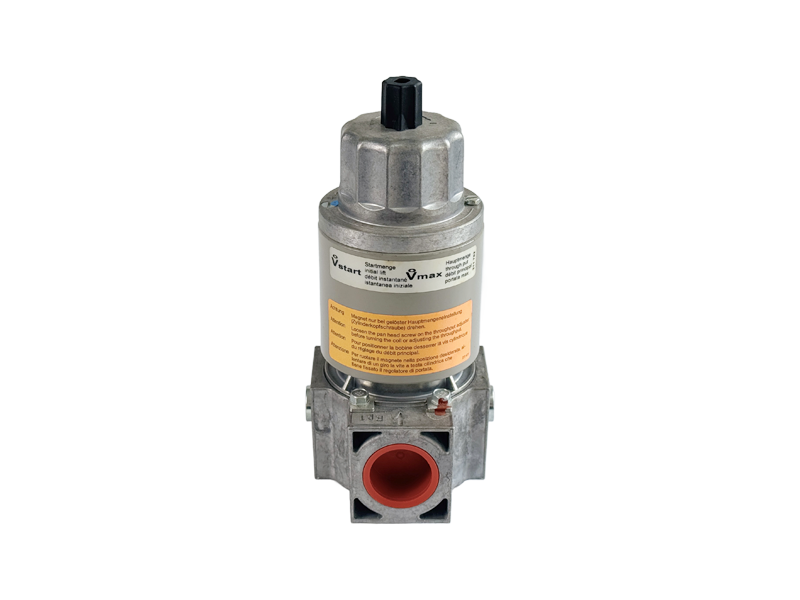

DUNGS MVDLE205-220 5 Series detail view 2
Slow-opening valve housing and protected connection port.

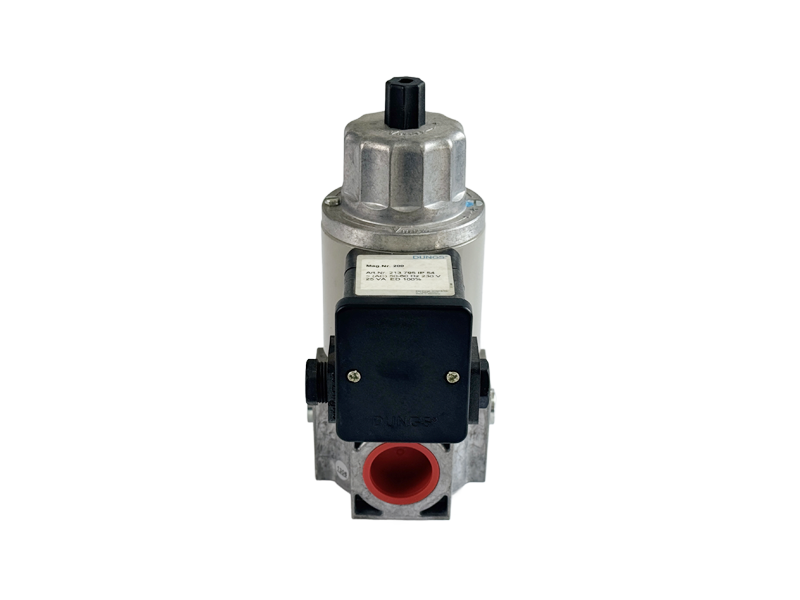

DUNGS MVDLE205-220 5 Series detail view 3
Slow-opening valve electrical connector face.

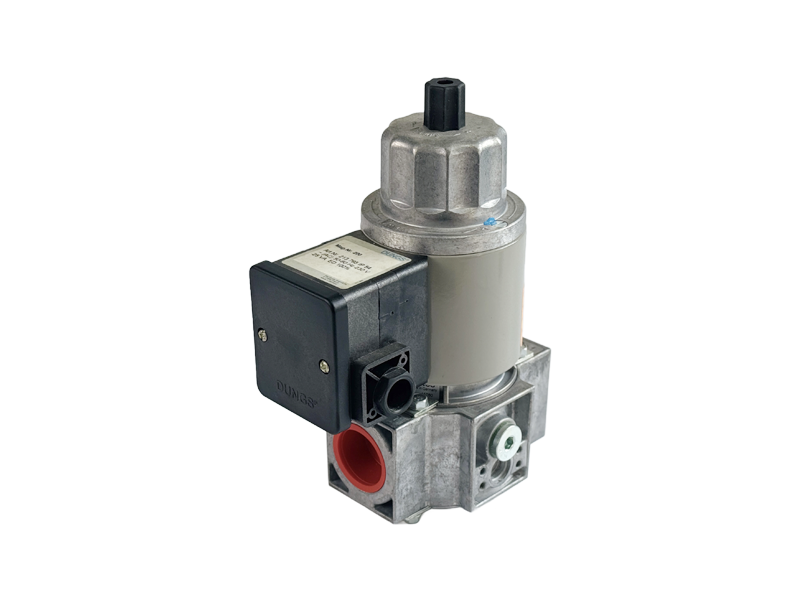

DUNGS MVDLE205-220 5 Series detail view 4
Slow-opening valve coil housing and side port.

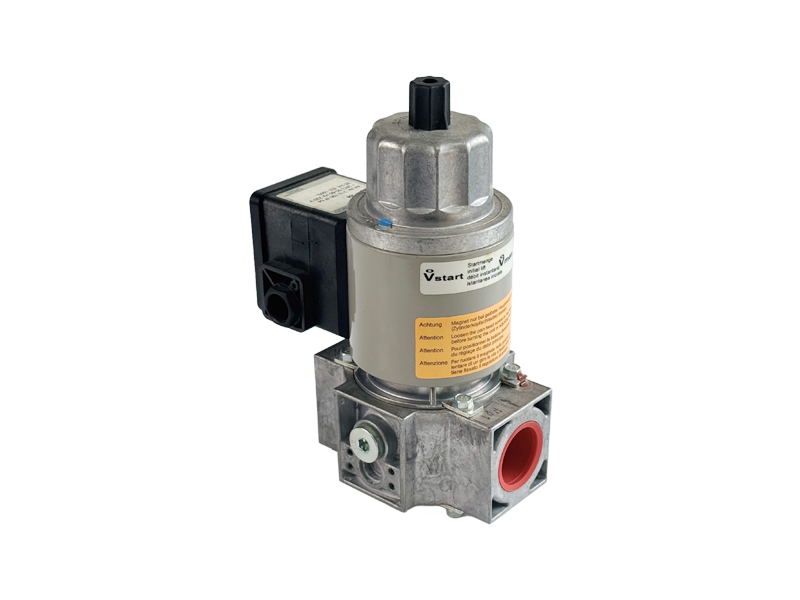

DUNGS MVDLE205-220 5 Series detail view 5
Slow-opening valve housing viewed from another angle.

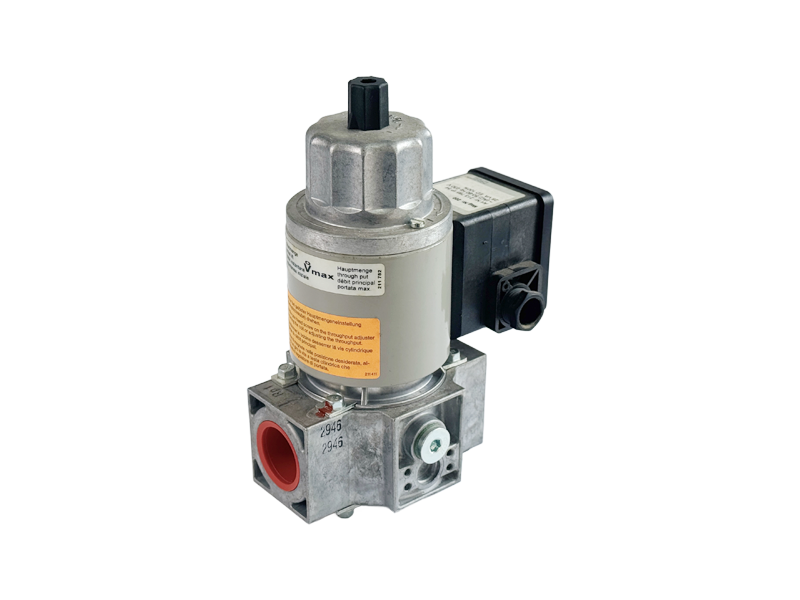

DUNGS MVDLE205-220 5 Series detail view 6
