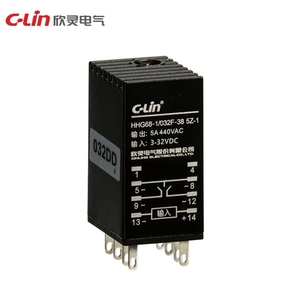

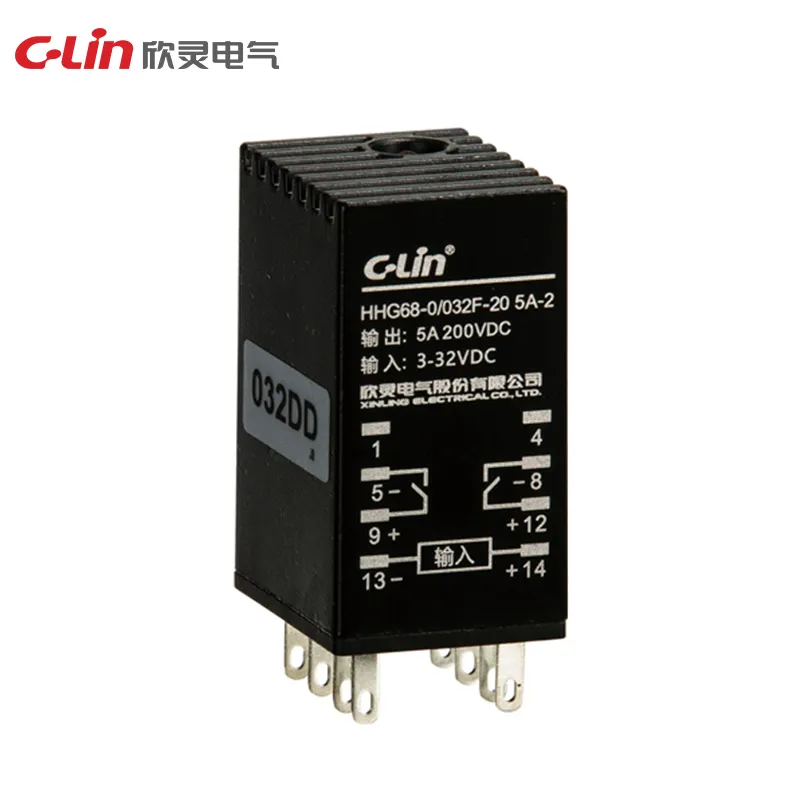

HHG68 Series solid-state relays provide compact switching for AC or DC loads where a small plug-in package is preferred. The device supports dual-output and single-output selections, with load-voltage codes and current ratings chosen to match the controlled circuit.
| Model / specification | HHG68 |
|---|---|
| Control voltage | 3-32VDC |
| Control current | 5-25mA for standard versions; 7-45mA listed for selected DC-output versions |
| Load voltage code | 22: 24-240VAC; 38: 24-440VAC; 20: 12-200VDC; 06: 5-60VDC |
| Load current | Dual output: 1A, 2A, 3A, 4A, 5A with aluminum housing; single output: 3A, 5A, 8A with aluminum housing |
| On-state voltage drop | AC ≤1.5V; selected DC-output data lists ≤1.2V |
| On-off time | AC ≤10ms; selected DC-output data lists ≤5ms |
| Off-state leakage current | AC ≤10mA; selected DC-output data lists ≤5mA |
| Dielectric withstand voltage | ≥1500VAC |
| Ambient temperature | -30°C to 80°C |
| Dimensions | 27×21×39.5mm |
| Installation | DIP, socket, dual-line plug-in or DIN rail installation depending on matching base |
| Thermal instruction | Install beside a well-ventilated heat-dissipation area |
