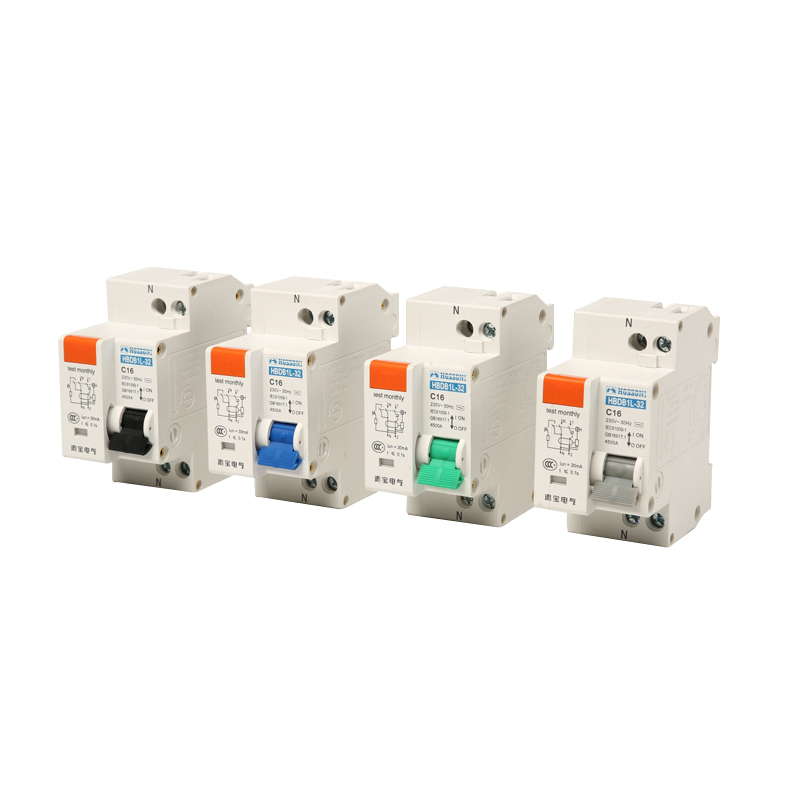

The DPNL HBDB1L Leakage Circuit Breaker is used in single-phase AC 50Hz/60Hz 230V circuits for electric shock protection, overload protection and short-circuit protection. It cuts off live and neutral wires at the same time and helps protect users when live and neutral wires are connected in reverse.
Main Technical Parameters
- Type: DPNL.
- Pole: 1P+N.
- Rated current: 6A, 10A, 16A, 20A, 25A and 32A.
- Rated voltage: 230V.
- Rated residual action current: 0.03A.
- Rated residual non-action current: 0.015A.
- Rated residual making/breaking capacity: 500A.
- Instantaneous release type: C.
- Rated making/breaking capacity: 4500A.
- Conforms with IEC61009.
