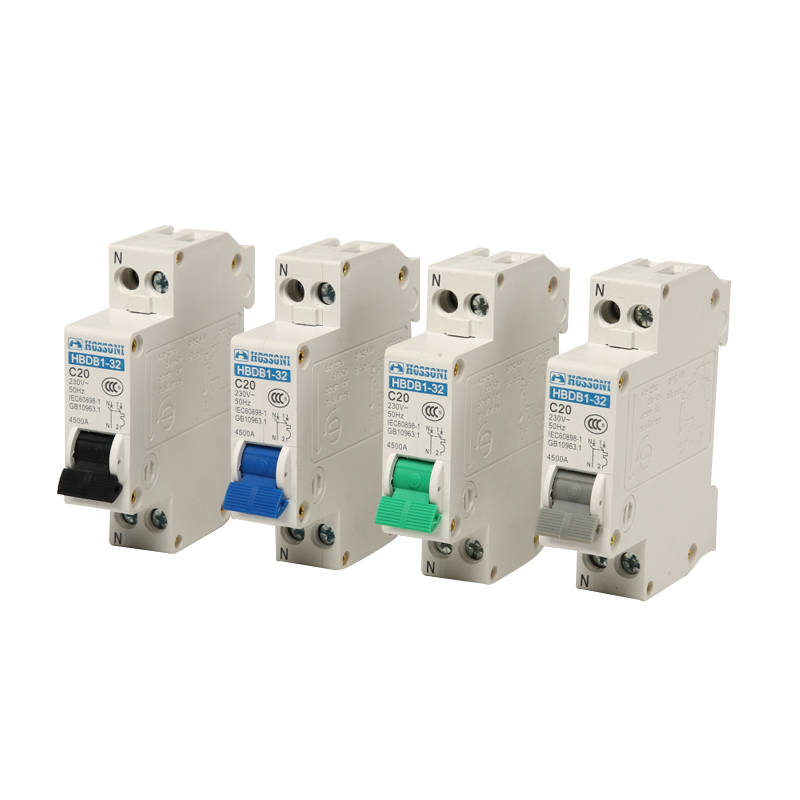

DPN Series Miniature Circuit Breaker

The DPN Series Miniature Circuit Breaker is used in single-phase AC 50Hz/60Hz circuits with rated voltage of 230V or below. It protects circuits from overload and short circuit, with a compact 18mm width and high breaking capacity.

Main Technical Parameters

• Type: DPN.
• Pole: 1P+N.
• Rated current: 6A, 10A, 16A, 20A, 25A and 32A.
• Rated voltage: 230V or below.
• Instantaneous release type: C.
• Rated short-circuit breaking capacity: 4500A.
• Conforms with IEC60898.
