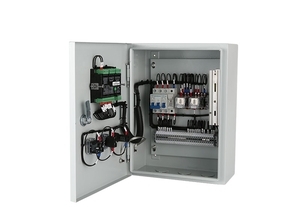

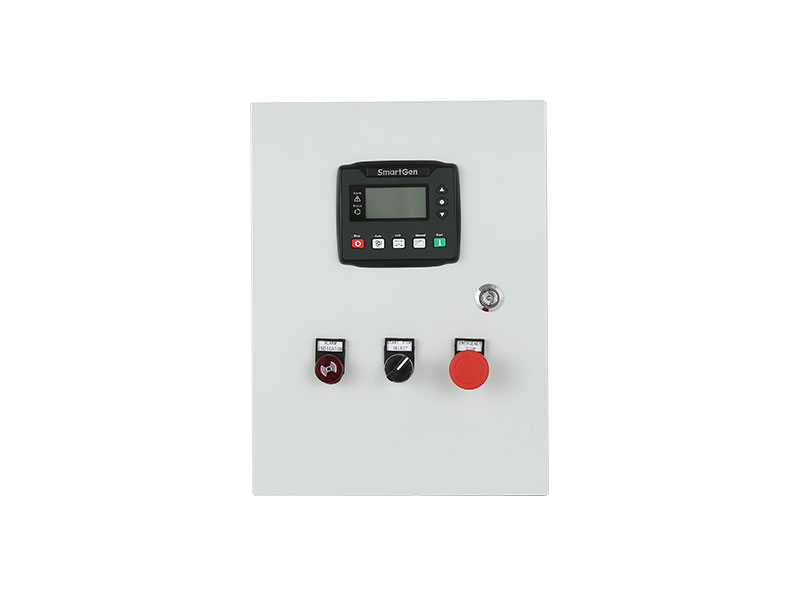

Open DOL Starter Panel

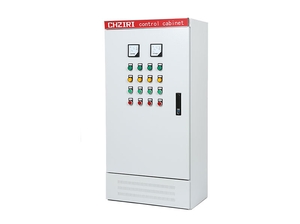

Floor Standing DOL Starter Panel
DOL Starter Control Face

Description

Overview

A direct-on-line starter panel connects each motor directly to the supply for full-voltage starting. The captured project uses 220V, 60Hz circuits with a main breaker and separate starters; the source notes that starting current can reach approximately five to eight times nominal current.

Captured motor groups

  • One panel arrangement for seven 3kW motors.
  • One arrangement for 1kW, 2kW, 3kW and two 1.5kW motors.
  • One related soft-starter arrangement for 3kW, 4kW and two 11kW motors.

Engineering use

The cabinet photos, panel layouts and circuit drawings document these specific arrangements. A new panel must be selected from the actual motor schedule, starting-current limits, protective-device coordination, control voltage and enclosure conditions.

Drawings and connection details

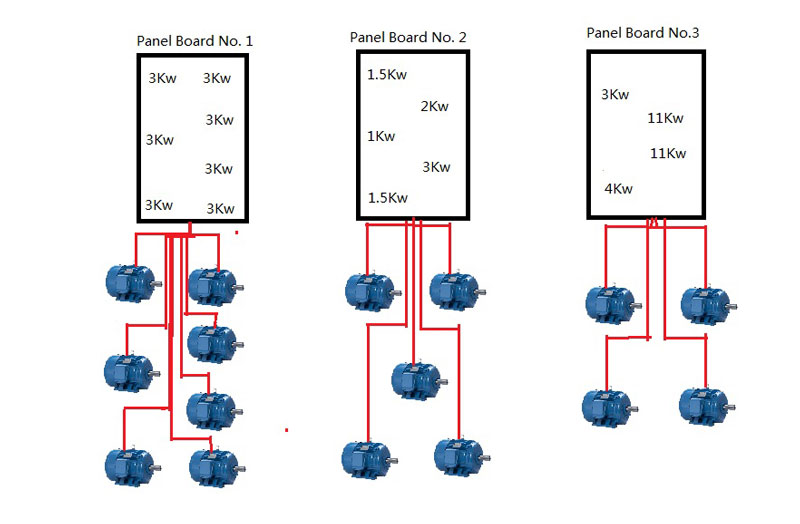

Three documented motor-group arrangements for the starter panels.
Three documented motor-group arrangements for the starter panels.

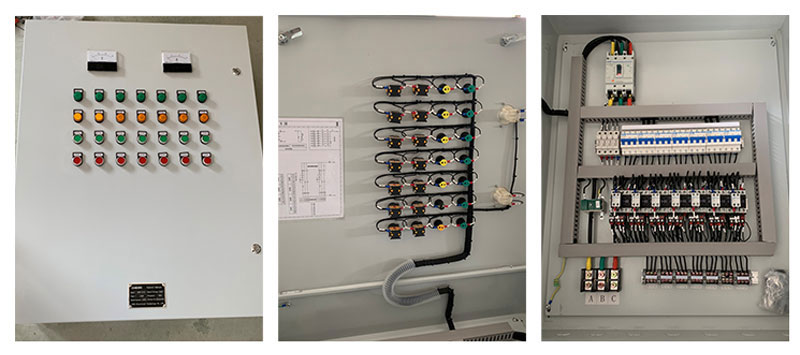

Internal and front views of the seven-motor DOL starter panel.
Internal and front views of the seven-motor DOL starter panel.

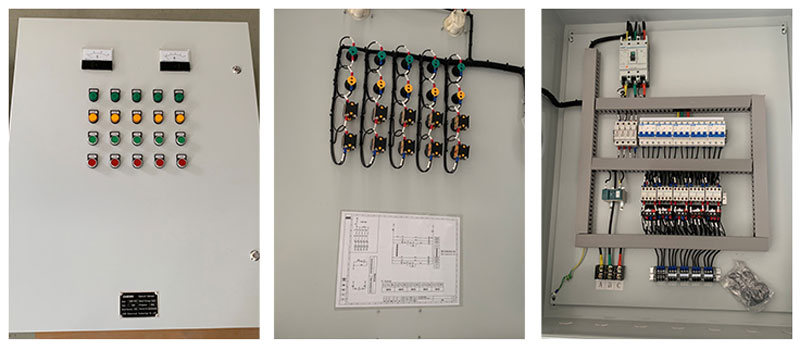

Internal and front views of the mixed-power DOL starter panel.
Internal and front views of the mixed-power DOL starter panel.

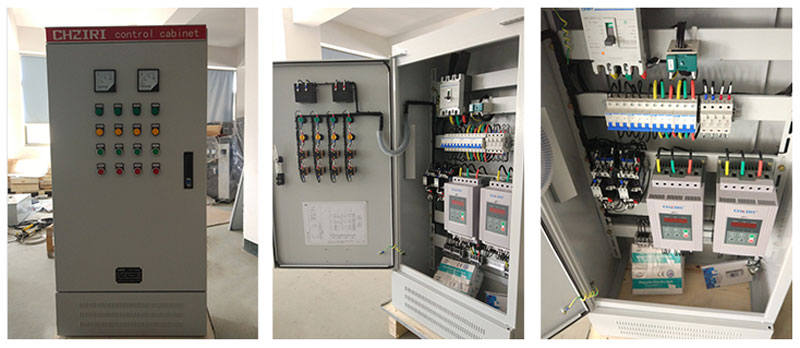

Internal and front views of the related soft-starter panel.
Internal and front views of the related soft-starter panel.

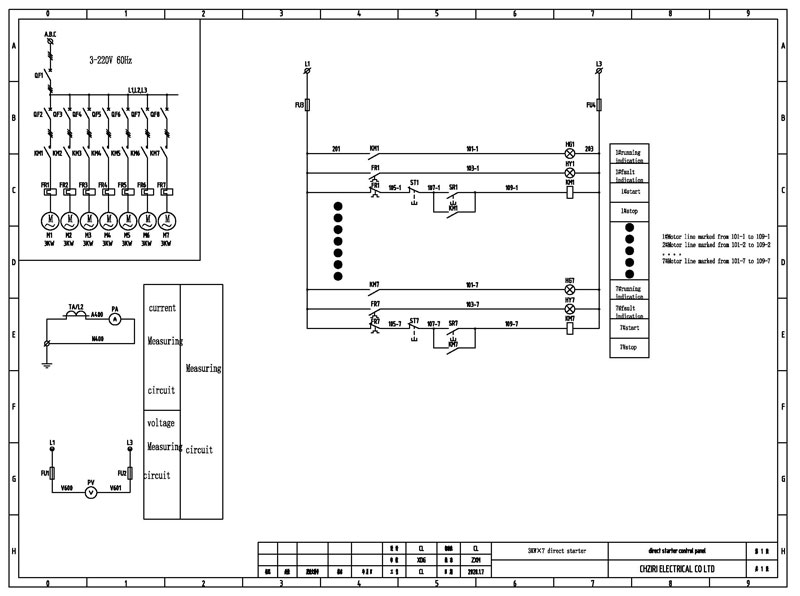

DOL starter panel schematic for the first motor group.
DOL starter panel schematic for the first motor group.

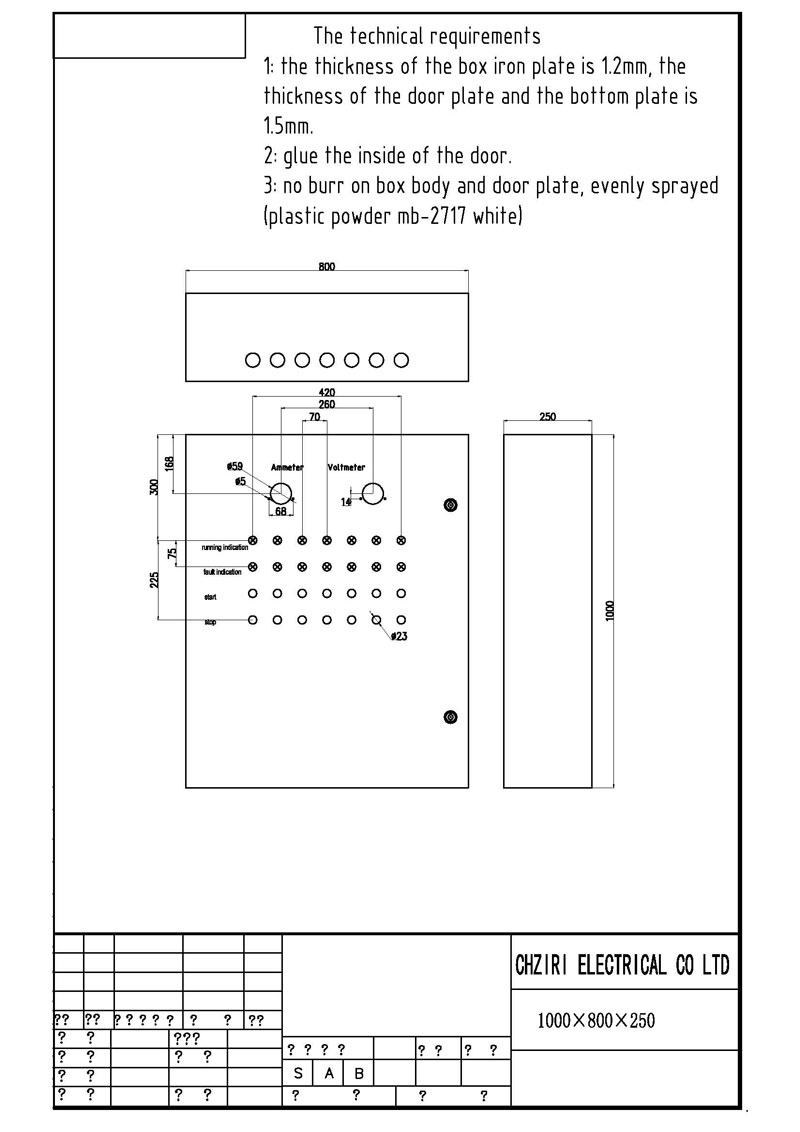

Panel outline and door layout for the first motor group.
Panel outline and door layout for the first motor group.

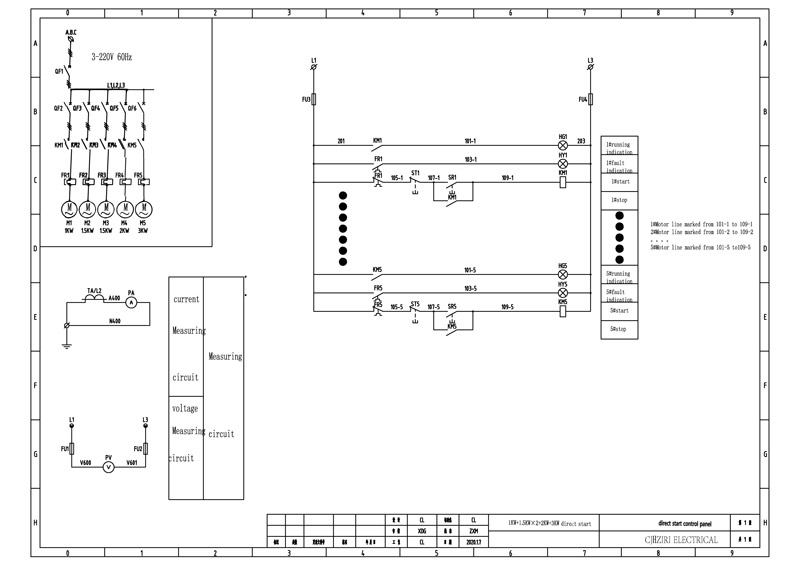

DOL starter wiring schematic for the second motor group.
DOL starter wiring schematic for the second motor group.

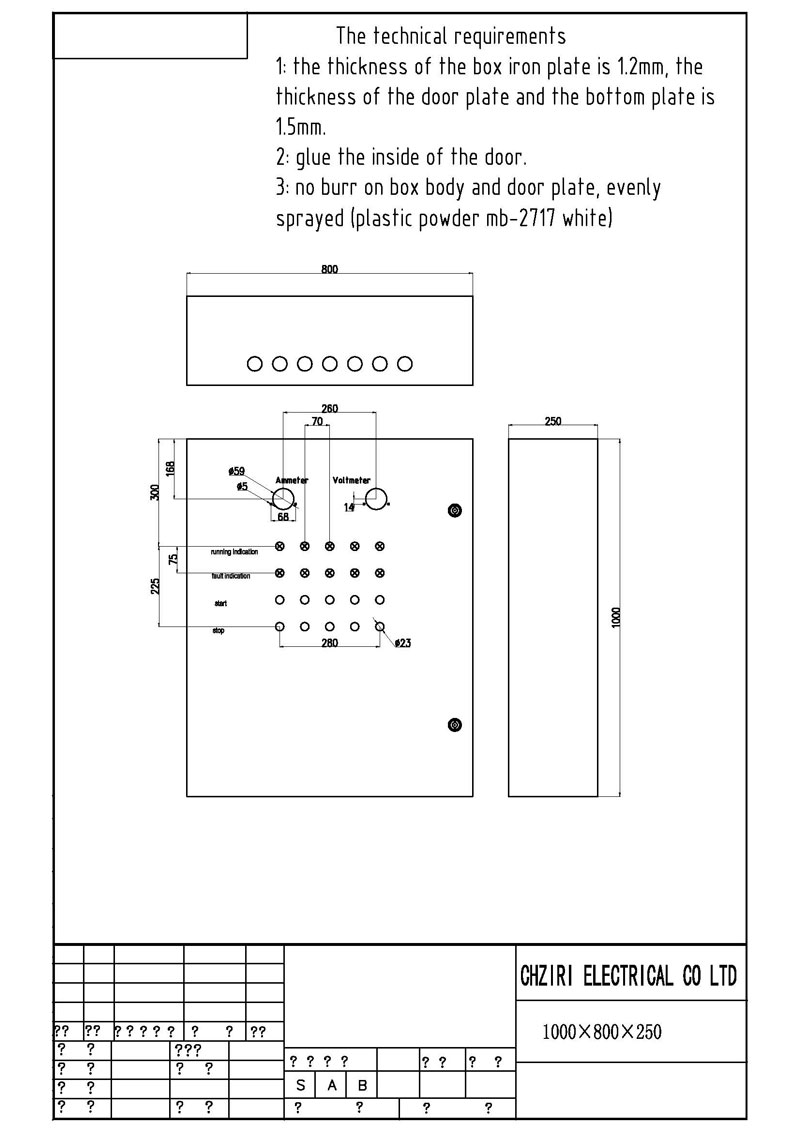

Panel outline and door layout for the second motor group.
Panel outline and door layout for the second motor group.

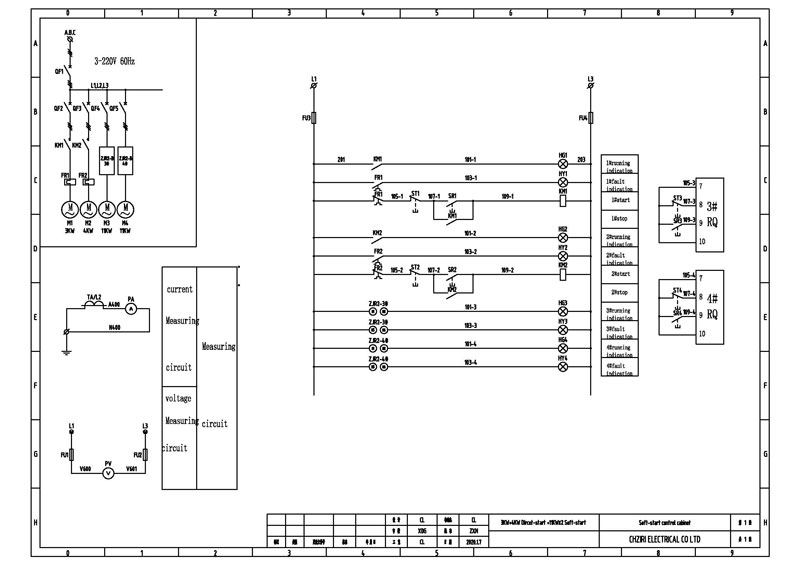

Starter wiring schematic for the third motor group.
Starter wiring schematic for the third motor group.

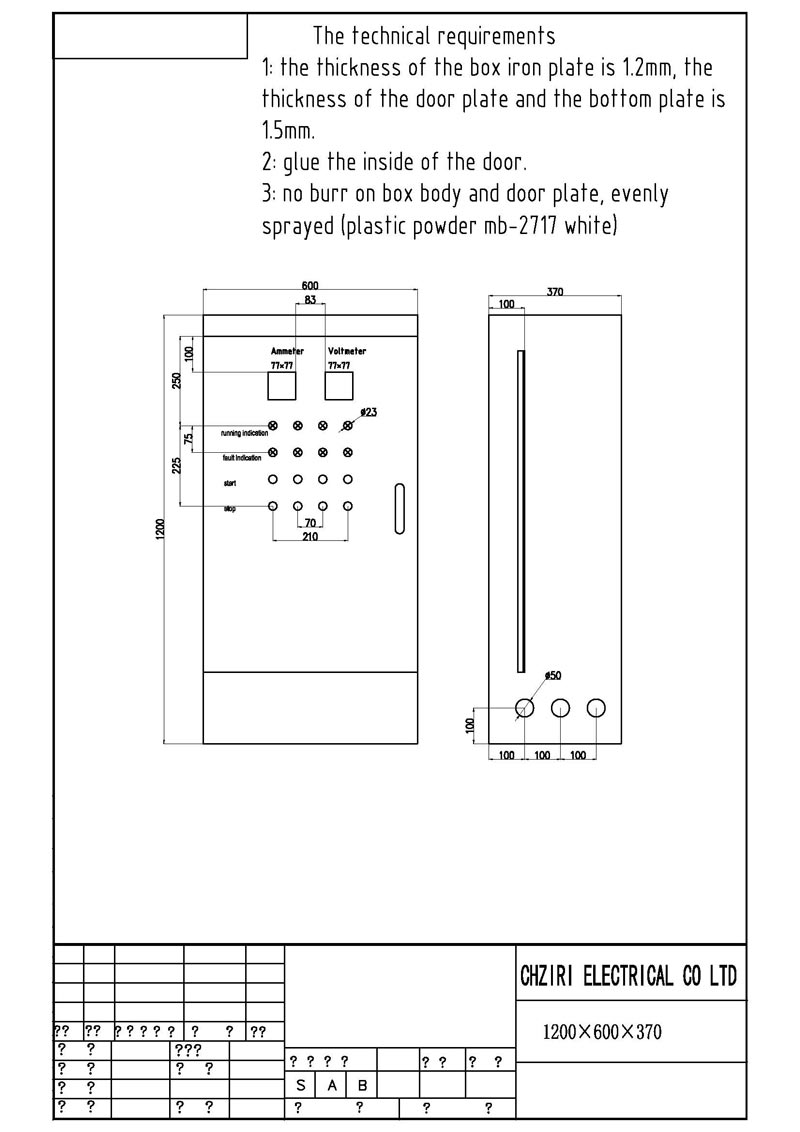

Panel outline and door layout for the third motor group.
Panel outline and door layout for the third motor group.
