DP Series digital meters are used where inverter, transmitter and DC-panel signals need a clear panel display. The series covers DP35 models for 4-20mA and 0-10V standard signal indication, along with DP45 five-digit AC/DC meters for photovoltaic panels, DC cabinets, charging equipment and energy-storage systems.
Common Parameters
| Parameter | Specification |
|---|
| Installation Method | Panel mounting |
| Power Supply | AC220V or AC380V for DP35 and listed DP45 options; DP45 default AC220V +/-10%, 50Hz with custom supply options |

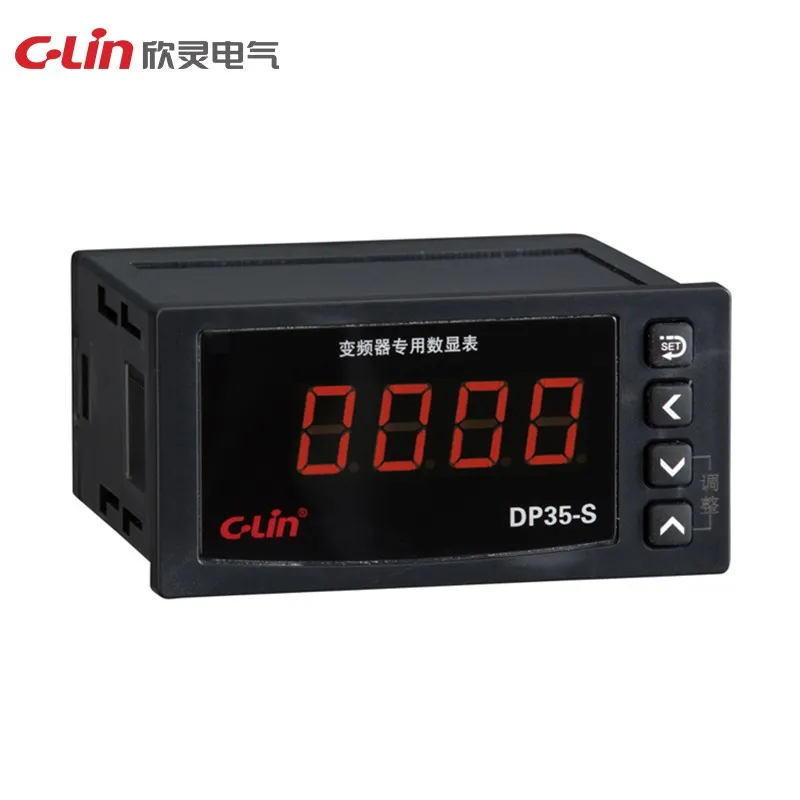

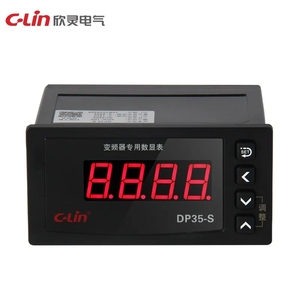

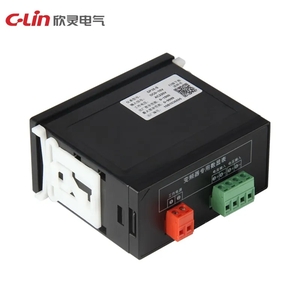

DP35-S
| Parameter | Specification |
|---|
| Measurement Signal | DC4-20mA current optional; DC0-10V voltage optional |
| Accuracy | Class 1.0 or better |
| Display | 0.56-inch digital display |
| Display Range | 0-9999 |
| Dimensions | 96 x 48 x 90 mm |
| Panel Cutout | 92 x 44 mm |
| Typical Use | Standard signal display for inverters, transmitters and conversion devices, including current, voltage, frequency, speed and pressure indication |

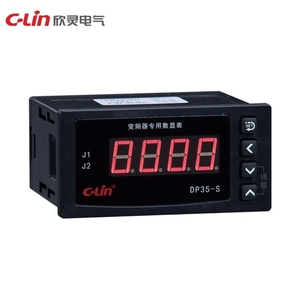

DP35-S-J
| Parameter | Specification |
|---|
| Measurement Signal | DC4-20mA or DC0-20mA current optional; DC0-10V voltage optional |
| Accuracy | Class 1.0 or better |
| Display | 0.56-inch digital display |
| Display Range | 0-9999 |
| Alarm Output | J1/J2 two relay outputs |
| Dimensions | 96 x 48 x 90 mm |
| Panel Cutout | 92 x 44 mm |
| Typical Use | Standard signal display with relay alarm output for cabinets, distribution systems, substations, inverters and transmitters |

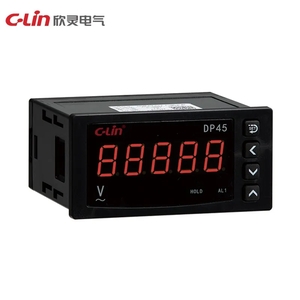

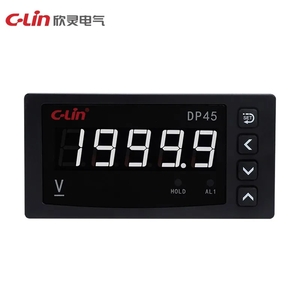

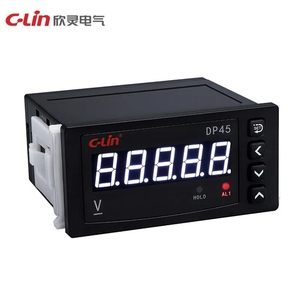

DP45
| Parameter | Specification |
|---|
| Input Signal | AC/DC current and voltage |
| Accuracy | Class 0.5 or better |
| Display | 0.56-inch five-digit display |
| Display Range | Five-digit settable range, up to -19999 to 31000 where applicable |
| Alarm Output | None or one relay output by option |
| Communication | None or RS485 by option |
| Dimensions | 48 x 96 x 87 mm |
| Panel Cutout | 44 x 92 mm |
| Typical Use | PV panels, DC panels, electric-vehicle charging equipment and energy-storage systems |

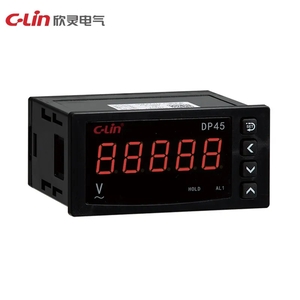

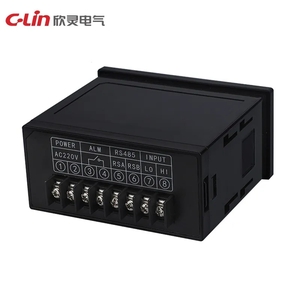

DP45-[ ]-[ ]-J-C4
| Parameter | Specification |
|---|
| Input Signal | AC/DC current and voltage |
| Accuracy | Class 0.5 or better |
| Display | 0.56-inch five-digit display |
| Display Range | -19999 to 31000, settable |
| Alarm Output | One relay output |
| Communication | RS485 |
| Power Supply | AC220V or AC380V |
| Dimensions | 48 x 96 x 87 mm |
| Panel Cutout | 44 x 92 mm |
DP45-[ ]-[ ]
| Parameter | Specification |
|---|
| Input Signal | AC/DC current and voltage |
| Accuracy | Class 0.5 or better |
| Display | 0.56-inch five-digit display |
| Display Range | Five-digit settable range, up to -19999 to 31000 where applicable |
| Alarm and Communication | Basic indication version without the listed relay alarm and RS485 configuration |
| Dimensions | 48 x 96 x 87 mm |
| Panel Cutout | 44 x 92 mm |
