Digital Current And Voltage Meter SX Series


Description

SX Series digital current and voltage meters provide panel indication for AC and DC electrical signals in distribution cabinets, calibration benches and equipment panels. The models share settable measurement ranges and panel mounting, while the main differences are display size, front format, cutout and special DC-only options.

Common Parameters

Input SignalAC current and voltage; DC current and voltage, except DC-specific variants
Measurement Accuracy≤ class 1.0 for standard models
Range0-9999 settable
Power SupplyAC220V or AC380V for standard models
Installation MethodPanel mounting
Typical ApplicationsCalibration benches, distribution cabinets, switchgear assemblies, voltage regulation equipment and laboratory panels

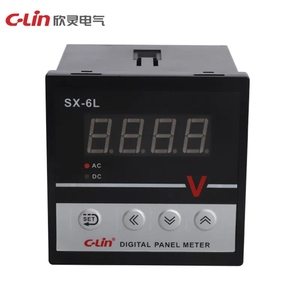

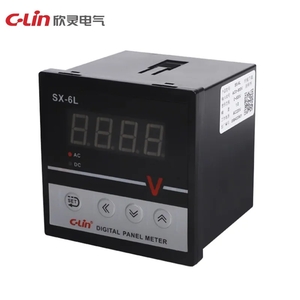

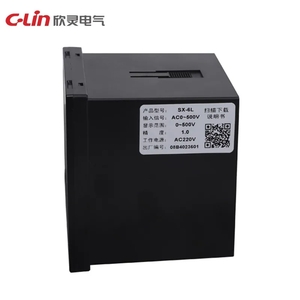

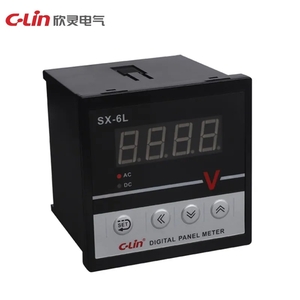

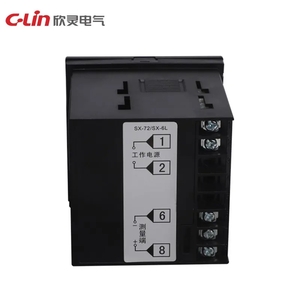

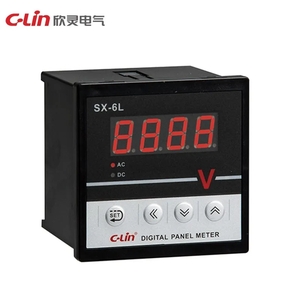

SX-6L

Display0.56-inch digital tube
Dimensions80 × 80 × 72mm
Panel Cutout76 × 76mm

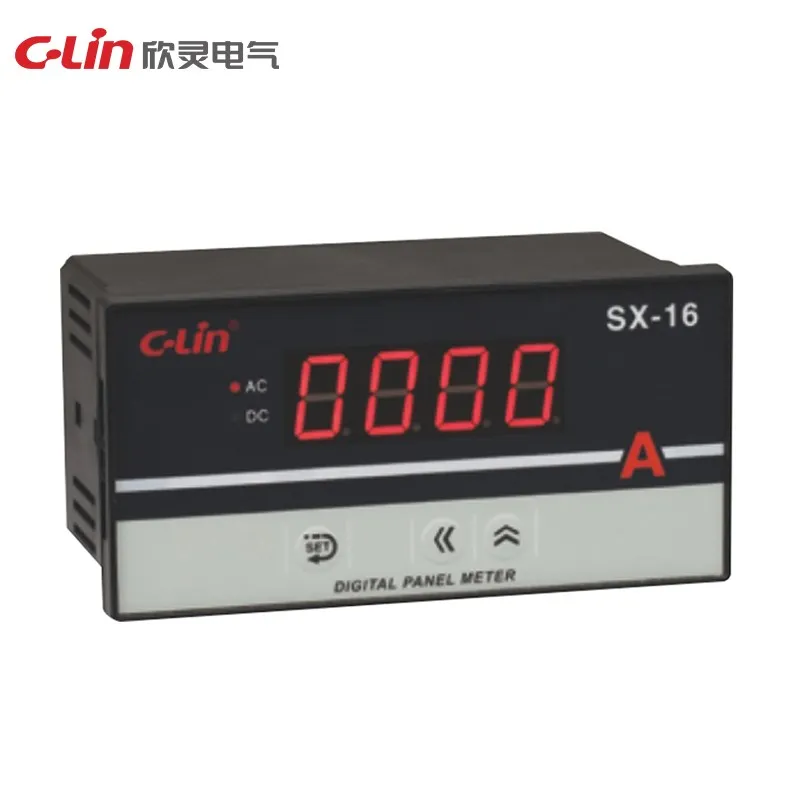

SX-16

Display0.8-inch digital tube
Input SignalAC current and voltage
Dimensions160 × 80 × 94mm
Panel Cutout151 × 75mm

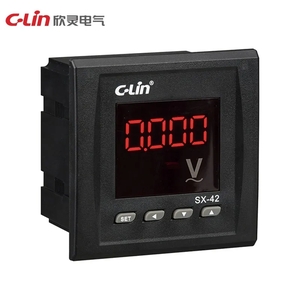

SX-42

Display0.56-inch digital tube
Dimensions123 × 123 × 96mm
Panel Cutout112 × 112mm

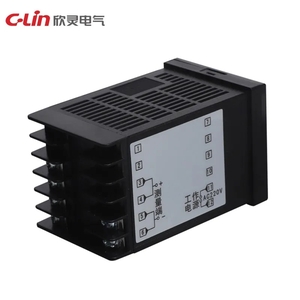

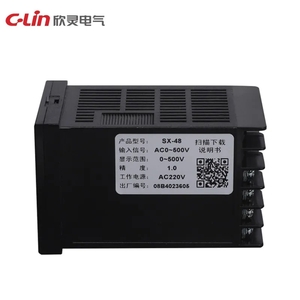

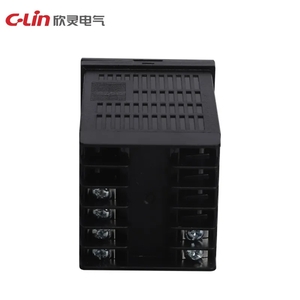

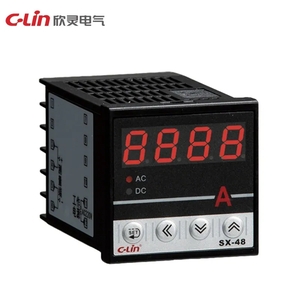

SX-48

Display0.39-inch digital tube
Dimensions48 × 48 × 78mm
Panel Cutout45 × 45mm

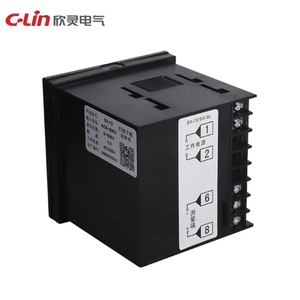

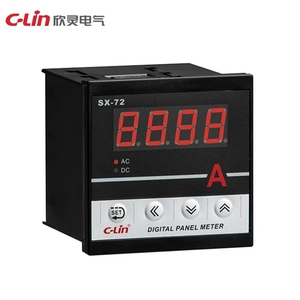

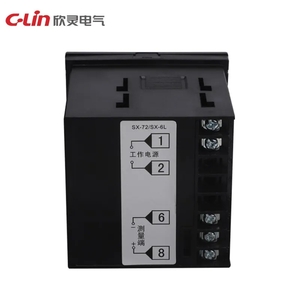

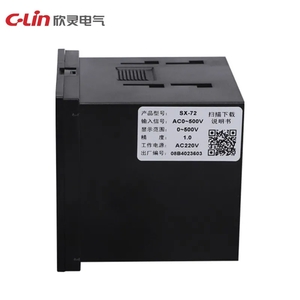

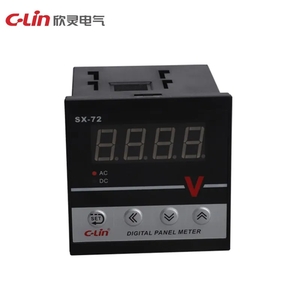

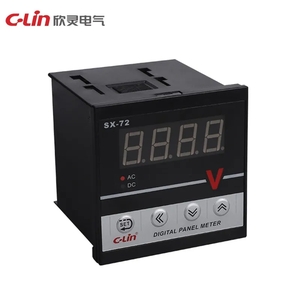

SX-72

Display0.56-inch digital tube
Dimensions72 × 72 × 72mm
Panel Cutout68 × 68mm

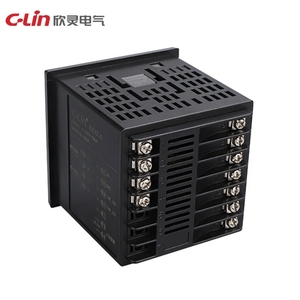

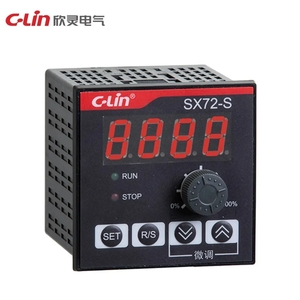

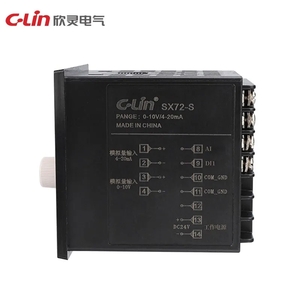

SX72-S

Measurement SignalDC voltage, DC current
Measurement Accuracy±0.1%
Display0.56-inch digital tube
Power SupplyDC24V
Dimensions72 × 72 × 70mm
Panel Cutout67 × 67mm
Typical ApplicationExternal inverter speed knob, start/stop button and control panel replacement

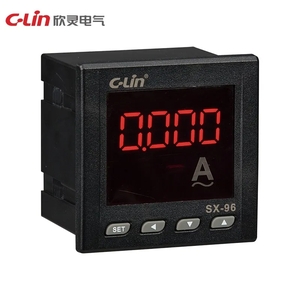

SX-96

Display0.56-inch digital tube
Dimensions96 × 96 × 90mm
Panel Cutout91 × 91mm

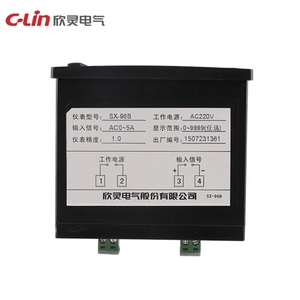

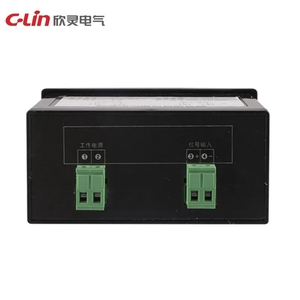

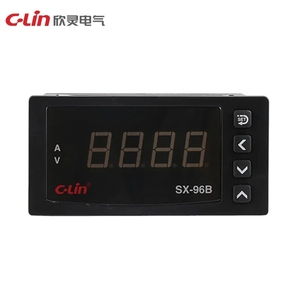

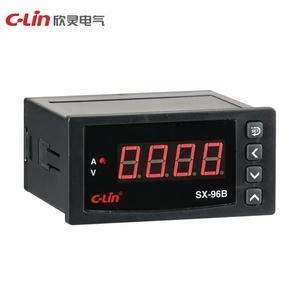

SX-96B

Display0.56-inch digital tube
Dimensions96 × 48 × 90mm
Panel Cutout92 × 44mm
