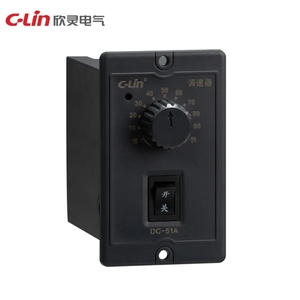

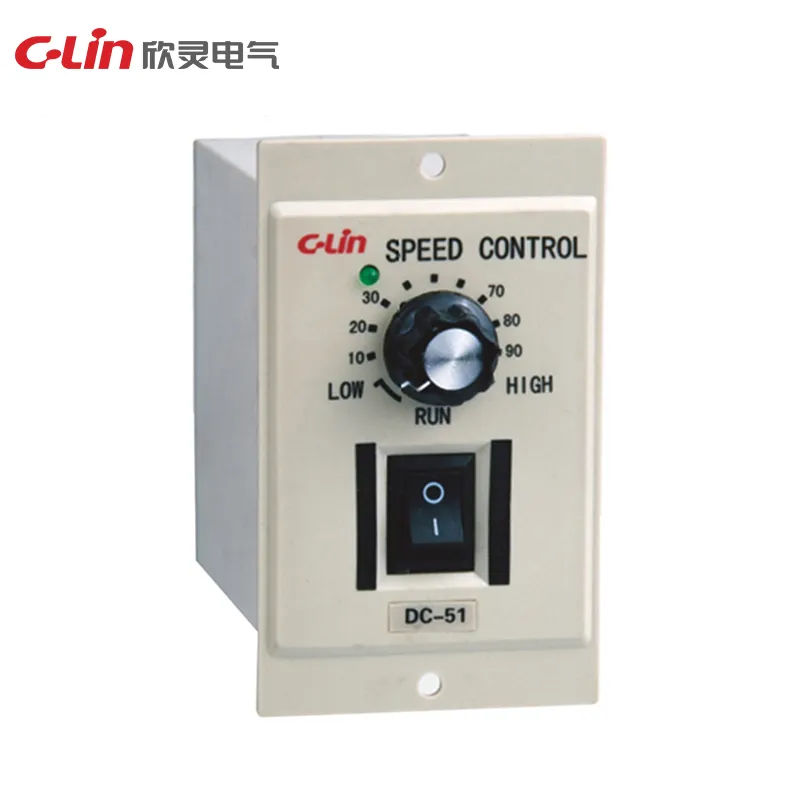

DC Series motor speed regulators are panel-mounted controllers for small two-wire DC motors. DC-51 and DC-51A use the same AC220V input platform and are used for forward-rotation speed adjustment on motors below 120W.
| Parameter | Specification |
|---|---|
| Models | DC-51, DC-51A |
| Working Power Supply | AC220V, 50Hz |
| Output Power | 60W for DC0-24V output; 120W for DC0-90V output; 120W for DC0-180V output |
| Control Mode | Forward rotation |
| Application Scope | Two-wire DC motors below 120W |
| Dimensions | 100 x 60 x 112 mm |
| Panel Cutout | 82 x 54 mm; 90-2 x Phi 4.5 mm |
| Installation Method | Panel screw installation |
