DANFOSS Oil Pump

DANFOSS Oil Pump, BFP 41, 24 L h, ROTATION L
DANFOSS Oil Pump, BFP 21, 42 L h, ROTATION R

Description

DANFOSS BFP 21 and BFP 41 oil pumps are compact fuel-pump options for burner service where rotation direction, flow capacity, pressure setting, speed, torque, medium temperature, rated voltage, and enclosure class must be checked together.

DANFOSS Oil Pump, BFP 41, 24 L h, ROTATION L

Model Article No. Pressure range Default setting Max. pressure in suction inlet/return outlet Speed Max. starting tTorque Temperature of medium Coil power consumption Rated voltage Coil enclosure
BFP 41 L3 221 23 324 7 to 20 bar 10 ±1 bar 2 bar 2400 to 3450 min⁻¹ 0.1 Nm 0 to +70°C 9 W 230 V, 50/60 Hz IP 40

DANFOSS Oil Pump, BFP 21, 42 L h,ROTATION R

Model Article No. Pressure range Default setting Max. pressure in suction inlet/return outlet Speed Max. starting tTorque Temperature of medium Coil power consumption Rated voltage Coil enclosure
BFP 21 L3 221 23 305 7 to 20 bar 10 ±1 bar 2 bar 2400 to 3450 min⁻¹ 0.1 Nm 0 to +70°C 9 W 230 V, 50/60 Hz IP 40
BFP 21 R3 221 23 304 7 to 20 bar 10 ±1 bar 2 bar 2400 to 3450 min⁻¹ 0.1 Nm 0 to +70°C 9 W 230 V, 50/60 Hz IP 40
BFP 21 L5 221 23 307 7 to 20 bar 10 ±1 bar 2 bar 2400 to 3450 min⁻¹ 0.12 Nm 0 to +70°C 9 W 230 V, 50/60 Hz IP 40
BFP 21 R5 221 23 306 7 to 20 bar 10 ±1 bar 2 bar 2400 to 3450 min⁻¹ 0.12 Nm 0 to +70°C 9 W 230 V, 50/60 Hz IP 40

Product Detail Images

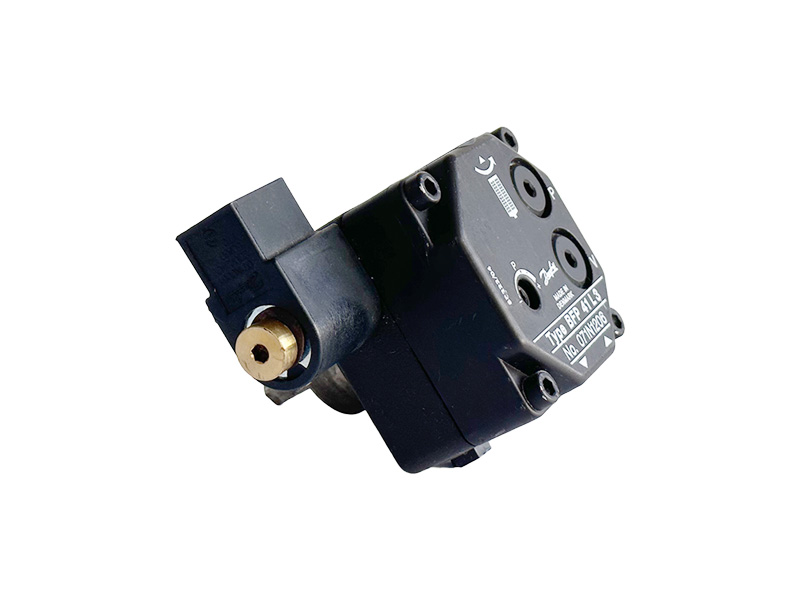

DANFOSS Oil Pump, BFP 41, 24 L h, ROTATION L

DANFOSS Oil Pump, BFP 41, 24 L h, ROTATION L detail view 2DANFOSS Oil Pump, BFP 41, 24 L h, ROTATION L detail view 3DANFOSS Oil Pump, BFP 41, 24 L h, ROTATION L detail view 4DANFOSS Oil Pump, BFP 41, 24 L h, ROTATION L detail view 5DANFOSS Oil Pump, BFP 41, 24 L h, ROTATION L detail view 6

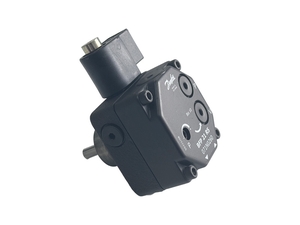

DANFOSS Oil Pump, BFP 21, 42 L h,ROTATION R

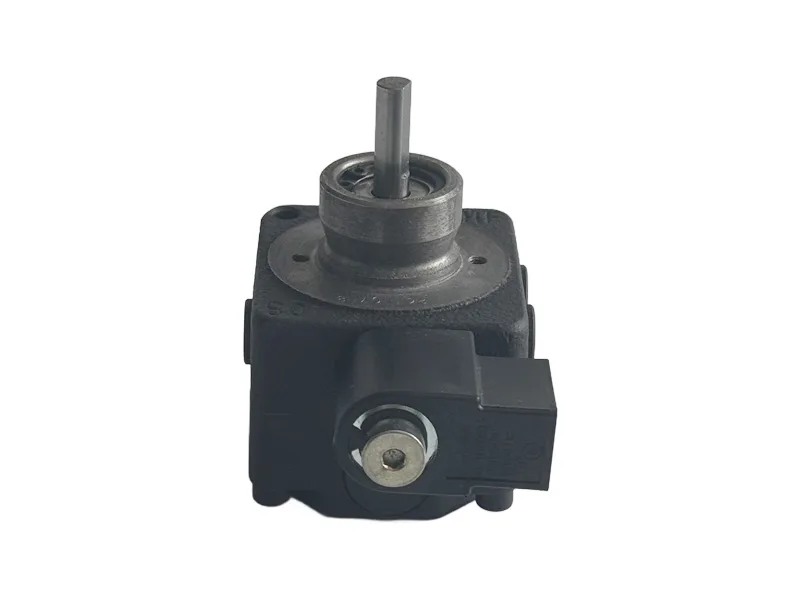

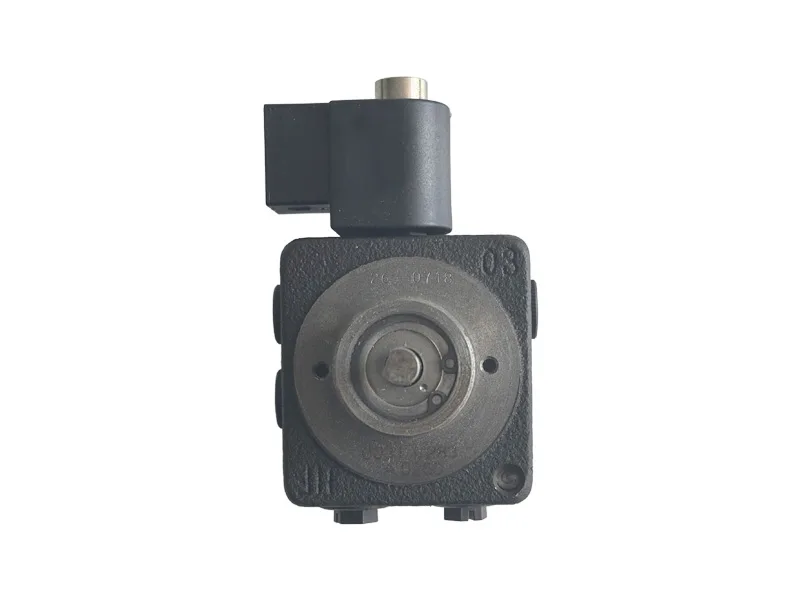

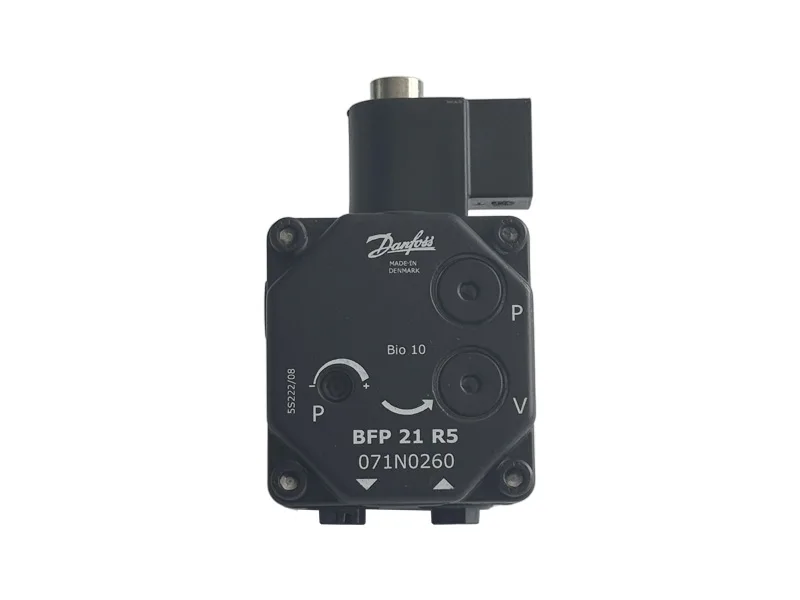

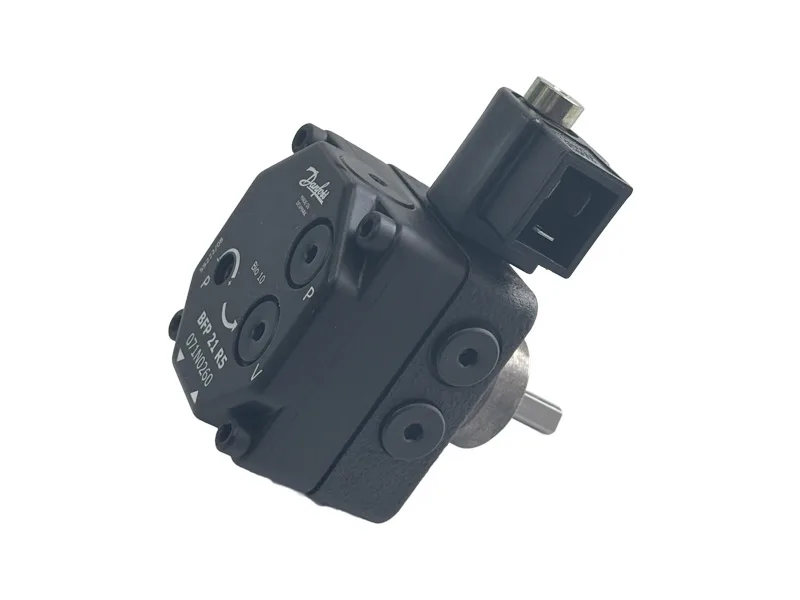

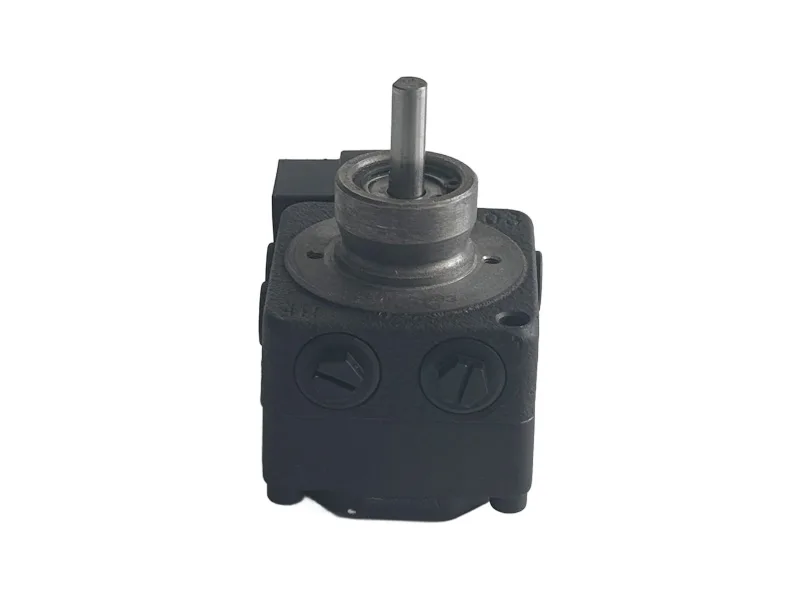

DANFOSS Oil Pump, BFP 21, 42 L h,ROTATION R detail view 2DANFOSS Oil Pump, BFP 21, 42 L h,ROTATION R detail view 3DANFOSS Oil Pump, BFP 21, 42 L h,ROTATION R detail view 4DANFOSS Oil Pump, BFP 21, 42 L h,ROTATION R detail view 5DANFOSS Oil Pump, BFP 21, 42 L h,ROTATION R detail view 6
