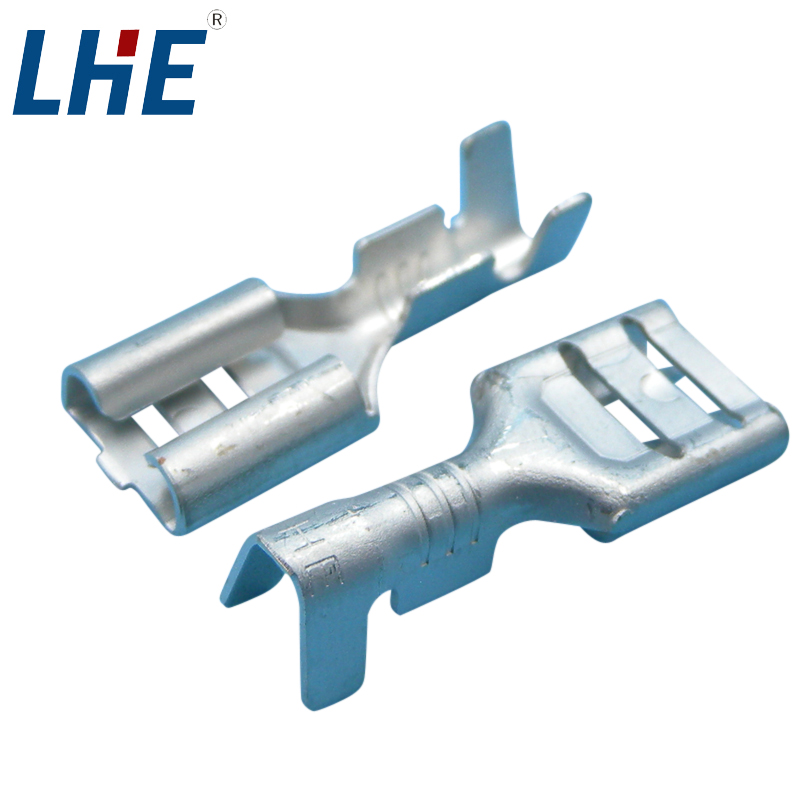

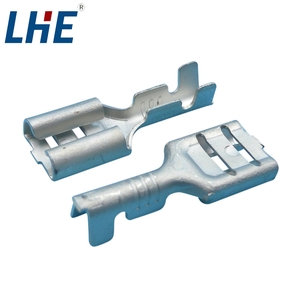

D630N Faston 250 terminals provide a 6.3 x 0.8 mm quick-disconnect interface. Use the terminal reference to match the crimp barrel to the required conductor.
| Product role | Crimp terminal |
|---|---|
| Faston interface | 250; 6.3 x 0.8 mm |
| Wire range | 22–16 AWG overall; 20–16 or 20–18 AWG by model summary |
| Maximum current | 15 A |
| Maximum voltage | 300 VAC/DC |
| Contact material and finish | Brass, tin plating |
| Operating temperature | -25 °C to 85 °C |
| Packaging | Reel |
| UL file | E364711 |
