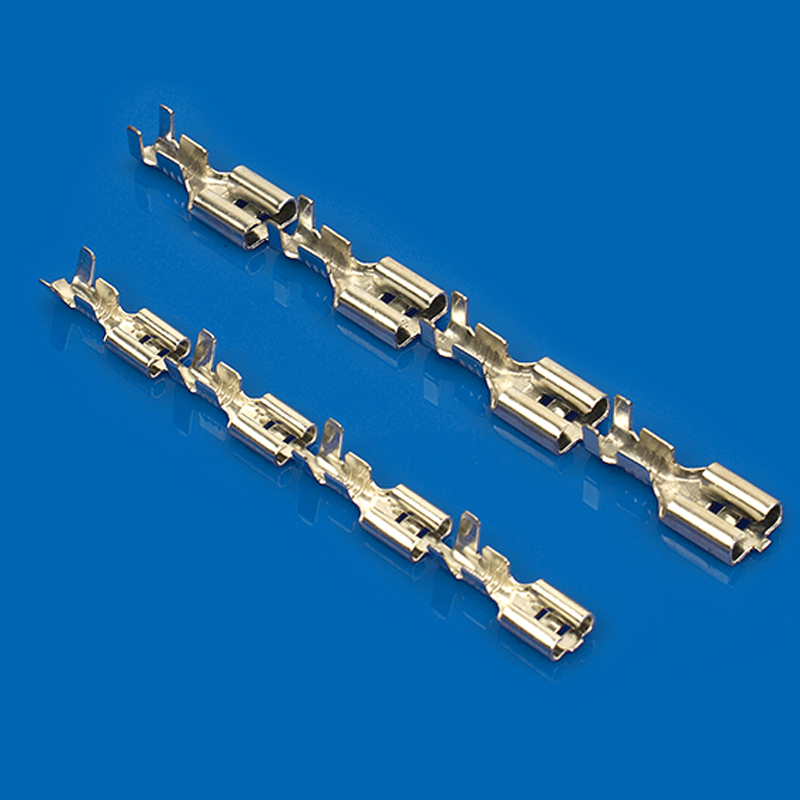

D630K female spring terminals mate with 6.3 mm Faston 250 tabs. Select the 0.5 or 0.8 mm tab thickness to match the required mating blade.
| Product role | Female spring terminal |
|---|---|
| Faston interface | 250; 6.3 mm tab |
| Tab thickness | 0.5 or 0.8 mm by model |
| Wire range | 18–16 AWG |
| Contact material and finish | Brass, tin plating |
| Operating temperature | -25 °C to 105 °C |
| Packaging | Reel |
| UL file | E364711 |
