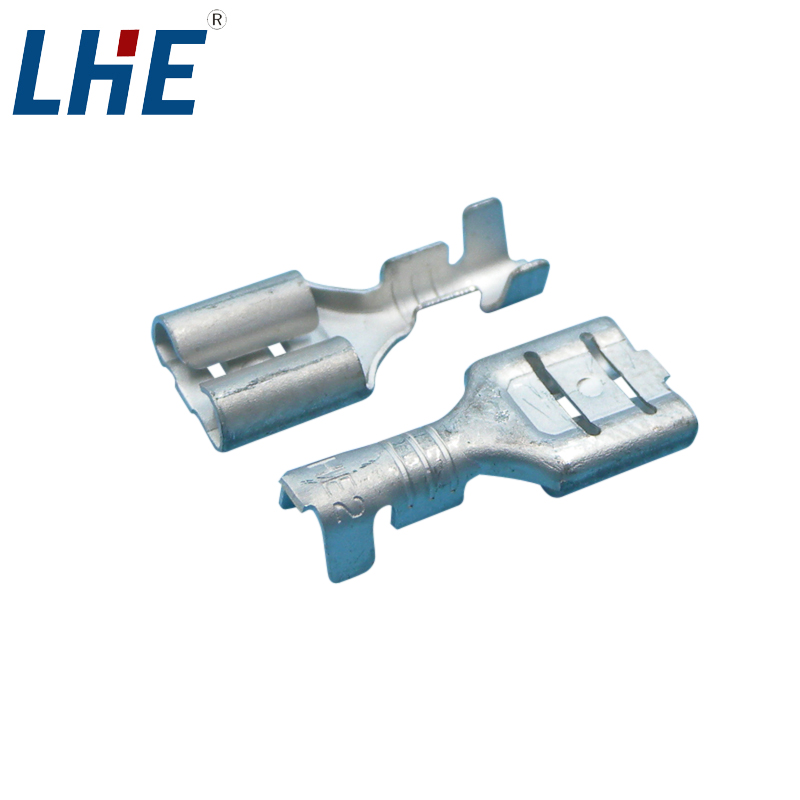

D520N Faston 205 terminals provide 5.2 mm quick-disconnect tabs for 20–18 AWG conductors. Select the 0.5 or 0.8 mm tab thickness for the required mating interface.
| Product role | Crimp terminal |
|---|---|
| Faston interface | 205; 5.2 mm tab |
| Tab thickness | 0.5 or 0.8 mm by model |
| Wire range | 20–18 AWG |
| Maximum current | 10 A |
| Maximum voltage | 250 VAC/DC |
| Contact material and finish | Brass, tin plating |
| Operating temperature | -25 °C to 85 °C |
| Packaging | Reel |
| UL file | E364711 |
